TTI Industries

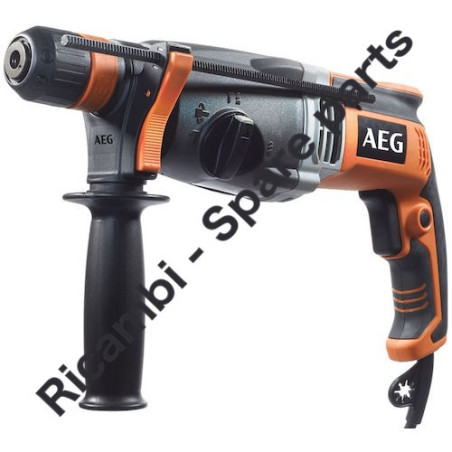

AEG Combi Hammer KH26XE Parts

SKU: AEG KH26XE
€2.45
VAT included

AEG Combi Hammer KH26XE Spare Parts

Fix Your Combi Hammer KH26XE. All Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.

AEG KH26XE
AEG Combi Hammer KH26XE Parts
  • AEG Combi Hammer KH26XE Parts
  • AEG Combi Hammer KH26XE Parts - Drawing
TTI Industries

AEG Combi Hammer KH26XE Parts

SKU: AEG KH26XE Condition: New
€2.45
VAT included

AEG Combi Hammer KH26XE Spare Parts

Fix Your Combi Hammer KH26XE. All Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.

AEG KH26XE
settings 83 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Shipped on: 7/10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK AEG S/N:: AEG S/N START WITH (4) or (5) AND HAVE 10 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
83 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
2
 photo_cameraImage coming soon 661288001 SCREW €2.25
6
 photo_cameraImage coming soon 201896005 CONNECTION CABLE €30.08
100
 photo_cameraImage coming soon 201242004 HOUSING €30.08
104
 photo_cameraImage coming soon 201238004 MOTOR €74.91
105
 photo_cameraImage coming soon 741543001 ELECTRIC FIELD €50.79
106
 photo_cameraImage coming soon 4931453920 ARMATURE €74.34
107
 photo_cameraImage coming soon 522361001 FAN €2.25
108
 photo_cameraImage coming soon 681479001 BALL BEARING €7.96
109
 photo_cameraImage coming soon 680260001 RING €4.38
110
 photo_cameraImage coming soon 522260001 INSULATING DISC €2.25
117
 photo_cameraImage coming soon 290061255 TERMINAL PLUG €2.25
131
 photo_cameraImage coming soon 302393010 CLAMPING RING €16.60
135
 photo_cameraImage coming soon 760251019 PRINT.CURIUT SWITCH €40.08
137
 photo_cameraImage coming soon 201894002 SWITCH €50.79
140
 photo_cameraImage coming soon 290244015 CAPACITOR €6.53
141
 photo_cameraImage coming soon 632823001 PUNCH GUIDE €4.38
143
 photo_cameraImage coming soon 661189001 SCREW €2.38
160
 photo_cameraImage coming soon 562023001 CABLE CLAMP €5.11
200
 photo_cameraImage coming soon 4931446943 GEAR BOX KIT €52.22
201
 photo_cameraImage coming soon 522173002 GEAR BOX €17.96
202
 photo_cameraImage coming soon 692727001 SINTERED BEARING €10.81
203
 photo_cameraImage coming soon 633514001 COMPENSATING WASHER €3.38
204
 photo_cameraImage coming soon 4931453736 NEEDLE BEARING €4.38
205
 photo_cameraImage coming soon 692732001 SPRING €3.51
206
 photo_cameraImage coming soon 4931448985 PLATE €5.54
207
 photo_cameraImage coming soon 680727001 BEARING €7.96
208
 photo_cameraImage coming soon 201235004 BEARING END PLATE €30.08
209
 photo_cameraImage coming soon 632400001 WASHER €3.51
210
 photo_cameraImage coming soon 4931436807 CYLINDER PIN €6.92
211
 AEG KH26E Cylinder 692717001 AEG KH26E Cylinder €19.61
212
 photo_cameraImage coming soon 201233002 PERC. BODY W SEAL €21.32
214
 photo_cameraImage coming soon 692722001 SLEEVE €9.62
215
 photo_cameraImage coming soon 692723001 SNAP DIE €19.38
216
 photo_cameraImage coming soon 692698001 PERCUSSION BODY €21.85
217
 photo_cameraImage coming soon 633516001 WASHER €3.51
223
 photo_cameraImage coming soon 692726001 STOP WASHER €5.54
226
 AEG KH24IXE Steel Ball 681486001 AEG KH24IXE Steel Ball €3.48
228
 photo_cameraImage coming soon 611405001 BALL €3.51
229
 photo_cameraImage coming soon 681235001 PIN €4.86
230
 photo_cameraImage coming soon 692720001 SPINDLE SLEEVE €47.94
231
 photo_cameraImage coming soon 201219004 SLEEVE €12.95
234
 photo_cameraImage coming soon 633517001 WASHER €3.51
235
 photo_cameraImage coming soon 692735001 SPRING €3.51
236
 photo_cameraImage coming soon 611291001 REDUCTION GEAR €8.44
237
 photo_cameraImage coming soon 4931435089 CLUTCH €6.92
238
 photo_cameraImage coming soon 672634004 RING OF CIRCUIT BREAKER €4.86
248
 photo_cameraImage coming soon 692724001 STOP WASHER €8.44
252
 photo_cameraImage coming soon 522187001 RING €5.41
256
 AEG PN3500X Pressure Spring 692737001 AEG PN3500X Pressure Spring €5.57
257
 photo_cameraImage coming soon 304116001 ADAPTER €25.94
261
 photo_cameraImage coming soon 632420001 WASHER €3.38
339
 photo_cameraImage coming soon 633525001 WASHER €3.51
340
 photo_cameraImage coming soon 201240003 WOBBLE DRIVE €47.22
341
 photo_cameraImage coming soon 611286001 GEAR SHAFT €15.10
343
 photo_cameraImage coming soon 4931453917 GEAR €4.38
344
 photo_cameraImage coming soon 611288001 INTERN.GEARED WHEEL €4.38
346
 photo_cameraImage coming soon 692733001 SPRING €4.38
348
 photo_cameraImage coming soon 681236001 BALL BEARING €17.95
350
 photo_cameraImage coming soon 4931453861 REDUCT GEAR WHEEL €8.67
351
 photo_cameraImage coming soon 681383001 BALL BEARING €8.44
353
 photo_cameraImage coming soon 633515001 BEARING COVER €4.38
354
 photo_cameraImage coming soon 4931453822 SWITCH HANDLE €7.96
444
 photo_cameraImage coming soon 201223004 SPINDLE €77.19
605
 photo_cameraImage coming soon 4931384434 DEPTH GAUGE €5.30
705
 photo_cameraImage coming soon 300188082 AUXILIARY HANDLE €15.25
710
 photo_cameraImage coming soon 120167006 AUXILIARY HANDLE €25.79
1202
 photo_cameraImage coming soon 902505001 FELT STRIP €2.25
1203
 photo_cameraImage coming soon 562007001 RUBBER STOP €4.38
1204
 photo_cameraImage coming soon 201905002 WASHER €6.90
1206
 photo_cameraImage coming soon 902076001 SEAL RING €7.96
1207
 photo_cameraImage coming soon 902075001 DATA PLATE €9.39
1208
 photo_cameraImage coming soon 562593001 GASKET €2.25
1209
 photo_cameraImage coming soon 561994001 O-RING €3.38
1212
 photo_cameraImage coming soon 562594001 O-RING €3.51
1214
 photo_cameraImage coming soon 661286001 LOCKING SCREW €3.51
1215
 photo_cameraImage coming soon 661504001 SCREW €3.51
1217
 photo_cameraImage coming soon 4931454454 O-RING €3.51
1218
 photo_cameraImage coming soon 4931454456 O-RING €3.51
1219
 photo_cameraImage coming soon 633518001 WASHER €3.51
1220
 photo_cameraImage coming soon 562595001 O-RING €3.51
1221
 photo_cameraImage coming soon 672632001 CIRCLIPS FOR HOLE DIA 35 €4.86
1223
 photo_cameraImage coming soon 522186002 SLEEVE €3.38
1225
 photo_cameraImage coming soon 562578001 RUBBER STOP €5.41

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

AEG Combi Hammer KH26XE Spare Parts

Fix Your Combi Hammer KH26XE. All Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.

In the following table, look for the model of the Drill Driver and their spare part.
AEG Percussion Drill KH26XE
AEG KH26XE COMBI HAMMER IN2 Spare Parts
4935428910 - KH26XE - 4000428911
# Part Num. Description
2 661288001 SCREW
6 201896005 CONNECTION CABLE
8 940488147 RATING PLATE - Discontinued
100 201242004 HOUSING
104 201238004 MOTOR
105 741543001 ELECTRIC FIELD
106 4931453920 ARMATURE
107 522361001 FAN
108 681479001 BALL BEARING
109 680260001 RING
110 522260001 INSULATING DISC
117 290061255 TERMINAL PLUG
119 661283001 SCREW - Discontinued
131 302393010 CLAMPING RING
135 760251019 PRINT.CURIUT SWITCH
137 201894002 SWITCH
140 290244015 CAPACITOR
141 632823001 PUNCH GUIDE
143 661189001 SCREW
160 562023001 CABLE CLAMP
200 4931446943 GEAR BOX KIT
201 522173002 GEAR BOX
202 692727001 SINTERED BEARING
203 633514001 COMPENSATING WASHER
204 4931453736 NEEDLE BEARING
205 692732001 SPRING
206 4931448985 RETAINING PLATE
207 680727001 BEARING
208 201235004 BEARING END PLATE
209 632400001 WASHER
210 4931436807 CYLINDER PIN
211 692717001 CYLINDER
212 201233002 PERC. BODY W SEAL
214 692722001 SLEEVE
215 692723001 SNAP DIE
216 692698001 PERCUSSION BODY
217 633516001 WASHER
218 201910001 END PLATE - Discontinued
223 692726001 STOP WASHER
226 681486001 BALL
228 611405001 BALL
229 681235001 PIN
230 692720001 SPINDLE SLEEVE
231 201219004 SLEEVE
234 633517001 WASHER
235 692735001 SPRING
236 611291001 REDUCTION GEAR
237 4931435089 CLUTCH
238 672634004 RETAINING RING
248 692724001 STOP WASHER
252 522187001 RING
256 692737001 SPRING
257 304116001 ADAPTER
261 632420001 WASHER
339 633525001 WASHER
340 201240003 WOBBLE DRIVE
341 611286001 GEAR SHAFT
343 4931453917 GEAR
344 611288001 INTERN.GEARED WHEEL
346 692733001 SPRING
348 681236001 BALL BEARING
350 4931453861 REDUCT GEAR WHEEL
351 681383001 BALL BEARING
353 633515001 BEARING COVER
354 4931453822 SWITCH HANDLE
444 201223004 SPINDLE
605 4931384434 DEPTH GAUGE
700 300912480 CARRYING CASE - Discontinued
705 300188082 AUXILIARY HANDLE
710 120167006 AUXILIARY HANDLE
1200 201247009 MAINTENANCE SET - Discontinued
1202 902505001 FELT STRIP
1203 562007001 RUBBER STOP
1204 201905002 WASHER
1206 902076001 SEAL RING
1207 902075001 DATA PLATE
1208 562593001 GASKET
1209 561994001 O-RING
1212 562594001 O-RING
1214 661286001 LOCKING SCREW
1215 661504001 SCREW
1217 4931454454 O-RING
1218 4931454456 O-RING
1219 633518001 WASHER
1220 562595001 O-RING
1221 672632001 CIRCLIP
1223 522186002 SLEEVE
1225 562578001 RUBBER STOP
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s AEG websites, which we consider as reliable.Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice.We strongly recommend using the published information as a basic information subject to AEG brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
AEG KH26XE
6 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK AEG S/N:
AEG S/N START WITH (4) or (5) AND HAVE 10 DIGITS

Specific References

New

Download

AEG KH26XE Drawing

AEG KH26XE Drawing

Download (686.78KB)

You might also like

AEG BSS 18MTF12BL 18V Impact Wrench
TTI Industries SKU: AEG BSS 18MTF12BL-0
AEG BSS 18MTF12BL 18V Impact Wrench
AEG BSS 18MTF12BL-0 18V Brushless 6-Mode Impact Wrench  - 18V BRUSHLESS IMPACT WRENCH - 1/2″ Brushless Impact Wrench with friction ring - Comes with a powerful motor that delivers up to 785 Nm of breakaway torque - Only...
AVAILABLE €273.06
Details
AEG L1820S 18V 2,0 AH Battery
TTI Industries SKU: 4935472275
AEG L1820S 18V 2,0 AH Battery
AEG L1820S 18V 2,0 AH PROLITHIUM-ION™ Battery - Product variations: x1 - AEG 2,0Ah pack provides ultimate portability and power in a compact package - Compatible with all AEG PRO18V powertools - Light weight and compact design...
Usually Ships in: 7/10 Business Days Approx. €84.60
Details
AEG L1840S 18V 4,0 AH Battery
TTI Industries SKU: 4935478636
AEG L1840S 18V 4,0 AH Battery
AEG L1840S 18V 4,0 AH PROLITHIUM-ION™ Battery - Product variations: x1 - AEG 4,0Ah pack provides extended runtime and power in a compact package - Compatible with all AEG PRO18V powertools - Light weight and compact design...
Usually Ships in: 7/10 Business Days Approx. €152.87
Details
AEG Battery Charger kit + 2 18V 5.0 Ah HD Batteries
TTI Industries SKU: 4935478945
AEG Battery Charger kit + 2 18V 5.0 Ah HD Batteries
AEG SET LL1850SHD Battery Charger kit + 2 18V 5.0 Ah HD Batteries - Battery Charger kit + 2 18V 5.0 Ah HD Batteries - SET LL1850SHD - Product variations: x1 - New HD battery technology that allows you to reach a higher level of...
Usually Ships in: 7/10 Business Days Approx. €273.06
Details
AEG KH26E Cylinder
TTI Industries SKU: 692717001
AEG KH26E Cylinder
AEG Rotary Hammer KH26E Cylinder AEG Genuine Part, Cylinder for Rotary Hammers Milwaukee - AEG Part for the following products: - 4935408275 4000467462 - BBH18LI-302C - BBH18LI-302C BTY. ROTARY HAMMER IN2 - 4935428180...
Last items in stock €19.61
Details
AEG PN3500X Spring
TTI Industries SKU: 692737001
AEG PN3500X Pressure Spring
AEG Rotary Hammer PN3500X Pressure Spring AEG Genuine Part, Spring for Rotary Hammer PN3500X. Part for the following products: AEG - 4935412210 4000432329 - PN3500X - PN3500X COMBI HAMMER IN2 - 4935428190 4000428191 -...
AVAILABLE €5.57
Details
AEG KH24IXE Steel Ball
TTI Industries SKU: 681486001
AEG KH24IXE Steel Ball
AEG KH24IXE Steel Ball AEG Genuine Part, Steel Ball for Combi Hammers KH24IXE - KH26XE - KH28SUPERXE. Part for the following products: -  4935428190 4000428191 - KH28SUPERXE - KH28SUPERXE COMBI HAMMER IN2 - ...
AVAILABLE €3.48
Details
Comments (0)
