AEG Angle Grinder WS10-125S Parts

SKU: AEG WS10-125S
€5.57
VAT included

AEG Small Angle Grinder WS10-125S Spare Parts

Fix Your Small Angle Grinder WS10-125S. All Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.

Small Angle Grinder WS10-125S
AEG Angle Grinder WS10-125S Parts
  • AEG Angle Grinder WS10-125S Parts
  • AEG Angle Grinder WS10-125S Parts - Drawing
TTI Industries

AEG Angle Grinder WS10-125S Parts

SKU: AEG WS10-125S Condition: New
€5.57
VAT included

AEG Small Angle Grinder WS10-125S Spare Parts

Fix Your Small Angle Grinder WS10-125S. All Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.

Small Angle Grinder WS10-125S
settings 30 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 7/10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK AEG S/N:: AEG S/N START WITH (4) or (5) AND HAVE 10 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
30 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

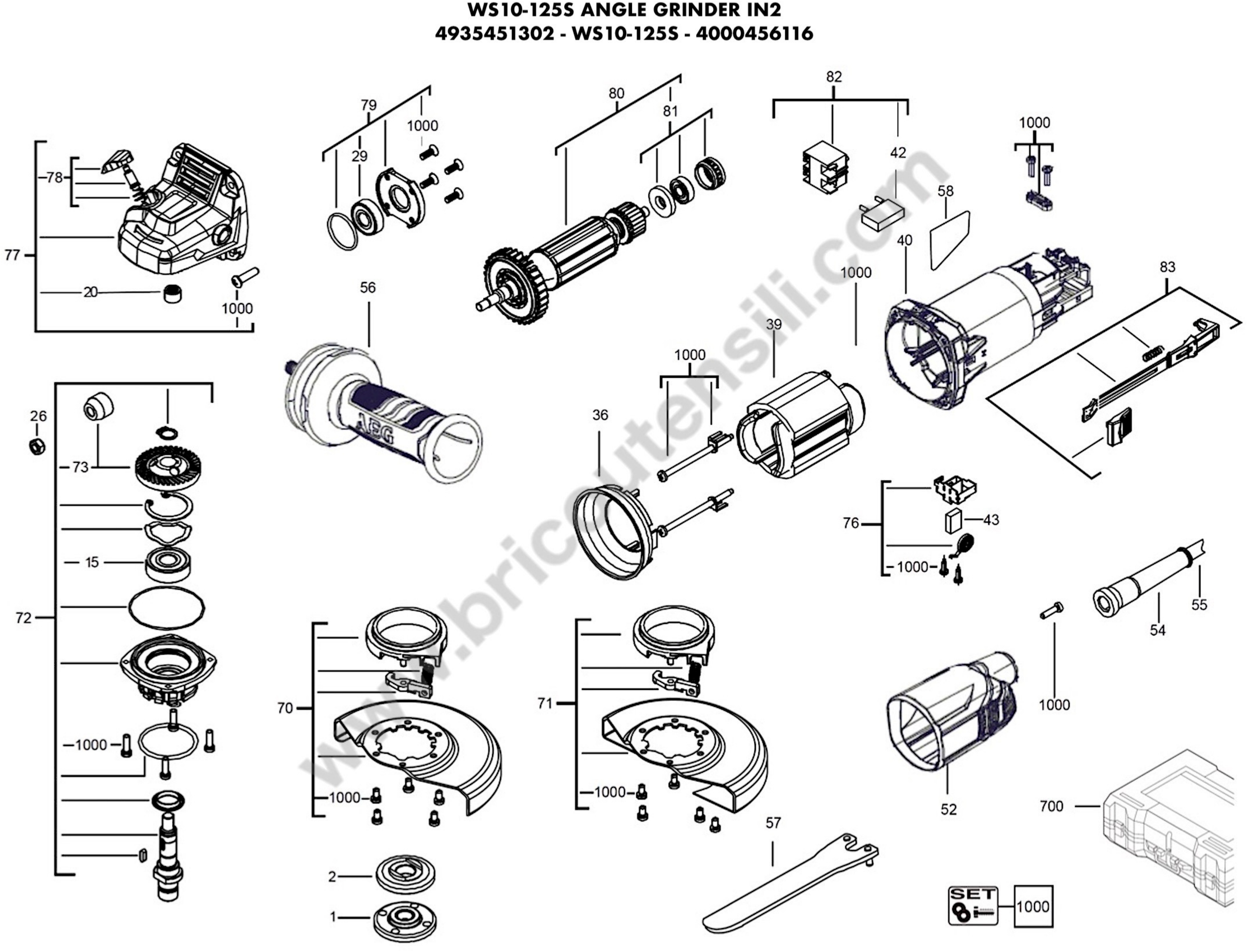

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 4931428704 FLANGE €5.10
2
 photo_cameraImage coming soon 4931453620 FLANGE €5.10
15
 photo_cameraImage coming soon 4931453697 BALL BEARING €6.90
20
 photo_cameraImage coming soon 4931453616 NEEDLE BEARING €6.53
26
 photo_cameraImage coming soon 4931428715 NUT €2.25
29
 photo_cameraImage coming soon 4931453633 BALL BEARING €6.53
36
 photo_cameraImage coming soon 4931428721 AIR DEFLECTOR RING €2.25
39
 photo_cameraImage coming soon 4931428724 ELECTRIC FIELD €55.07
40
 photo_cameraImage coming soon 4931453698 MOTOR HOUSING €16.52
42
 photo_cameraImage coming soon 4931428728 CAPACITOR €2.25
43
 AEG WS10-115 Carbon Brush 4931428732 AEG WS10-115 Carbon Brush €7.13
52
 photo_cameraImage coming soon 4931453699 PROTECTIVE CAP €6.53
54
 photo_cameraImage coming soon 4931428735 PROTECTING COVER €2.25
55
 photo_cameraImage coming soon 4931428736 CONNECTION CABLE €19.38
56
 photo_cameraImage coming soon 4931428739 HANDLE €28.65
57
 photo_cameraImage coming soon 4931393248 SPANNER €5.10
70
 AEG WS10-125S Guard Assy 4931428708 AEG WS10-125S Guard Assy €16.48
71
 photo_cameraImage coming soon 4931428711 GUARD CAP €15.10
72
 photo_cameraImage coming soon 4931428712 SPINDLE KIT €55.07
73
 photo_cameraImage coming soon 4931441558 PINION €30.08
76
 photo_cameraImage coming soon 4931428733 BRUSH HOLDER €4.38
77
 photo_cameraImage coming soon 4931428713 GEAR CASE €33.09
78
 photo_cameraImage coming soon 4931428714 COVER CAP €2.25
79
 photo_cameraImage coming soon 4931428716 BEARING KIT €15.10
80
 photo_cameraImage coming soon 4931453706 ARMATURE ASSEMBLY €72.20
81
 photo_cameraImage coming soon 4931428720 BEARING KIT €9.39
82
 photo_cameraImage coming soon 4931453713 ELECTRONIC SWITCH €32.94
83
 photo_cameraImage coming soon 4931453708 SWITCH LEVER €6.53
700
 photo_cameraImage coming soon 4931453709 CARRYING CASE €60.78
1000
 photo_cameraImage coming soon 4931428741 BOLT SET €3.68

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

AEG Small Angle Grinder WS10-125S Spare Parts

Fix Your Small Angle Grinder WS10-125S. All Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.

In the following table, look for the model of the Drill Driver and their spare part.
Small Angle Grinder WS10-125S
AEG WS10-125S Small Angle Grinder Spare Parts
WS10-125S ANGLE GRINDER IN2 4935451302 - WS10-125S - 4000456116
# Part Num. Description
1 4931428704 FLANGE
2 4931453620 FLANGE
15 4931453697 BALL BEARING
20 4931453616 NEEDLE BEARING
26 4931428715 NUT
29 4931453633 BALL BEARING
36 4931428721 AIR DEFLECTOR RING
39 4931428724 ELECTRIC FIELD
40 4931453698 MOTOR HOUSING
42 4931428728 CAPACITOR
43 4931428732 CARBON BRUSH
52 4931453699 PROTECTIVE CAP
54 4931428735 PROTECTING COVER
55 4931428736 CONNECTION CABLE
56 4931428739 HANDLE
57 4931393248 SPANNER
58 4931453711 RATING PLATE Discontinued
70 4931428708 GUARD ASSY 125MM
71 4931428711 GUARD CAP
72 4931428712 SPINDLE KIT
73 4931441558 PINION
76 4931428733 BRUSH HOLDER
77 4931428713 GEAR CASE
78 4931428714 COVER CAP
79 4931428716 BEARING KIT
80 4931453706 ARMATURE ASSEMBLY
81 4931428720 BEARING KIT
82 4931453713 ELECTRONIC SWITCH
83 4931453708 SWITCH LEVER
700 4931453709 CARRYING CASE
1000 4931428741 BOLT SET
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s AEG websites, which we consider as reliable.Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice.We strongly recommend using the published information as a basic information subject to AEG brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
AEG WS10-125S
6 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK AEG S/N:
AEG S/N START WITH (4) or (5) AND HAVE 10 DIGITS

Specific References

New

Download

AEG WS10-125S Drawing

AEG WS10-125S Drawing

Download (414.99KB)
