TTI Industries

AEG PE150 Angle Polisher Parts

SKU: AEG PE150
€12.73
VAT included

AEG PE150 Angle Polisher Spare Parts

Fix Your Angle Polisher PE150. All Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.
AEG PE150 Angle Polisher Parts
  • AEG PE150 Angle Polisher Parts
  • AEG PE150 Angle Polisher Parts - Drawing
TTI Industries

AEG PE150 Angle Polisher Parts

SKU: AEG PE150 Condition: New
€12.73
VAT included

AEG PE150 Angle Polisher Spare Parts

Fix Your Angle Polisher PE150. All Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.
settings 46 spare parts
description 2 exploded views
picture_as_pdf Download Exploded PDF
CODICE ARTICOLO
Quantity
on 7/10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK AEG S/N:: AEG S/N START WITH (4) or (5) AND HAVE 10 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
46 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

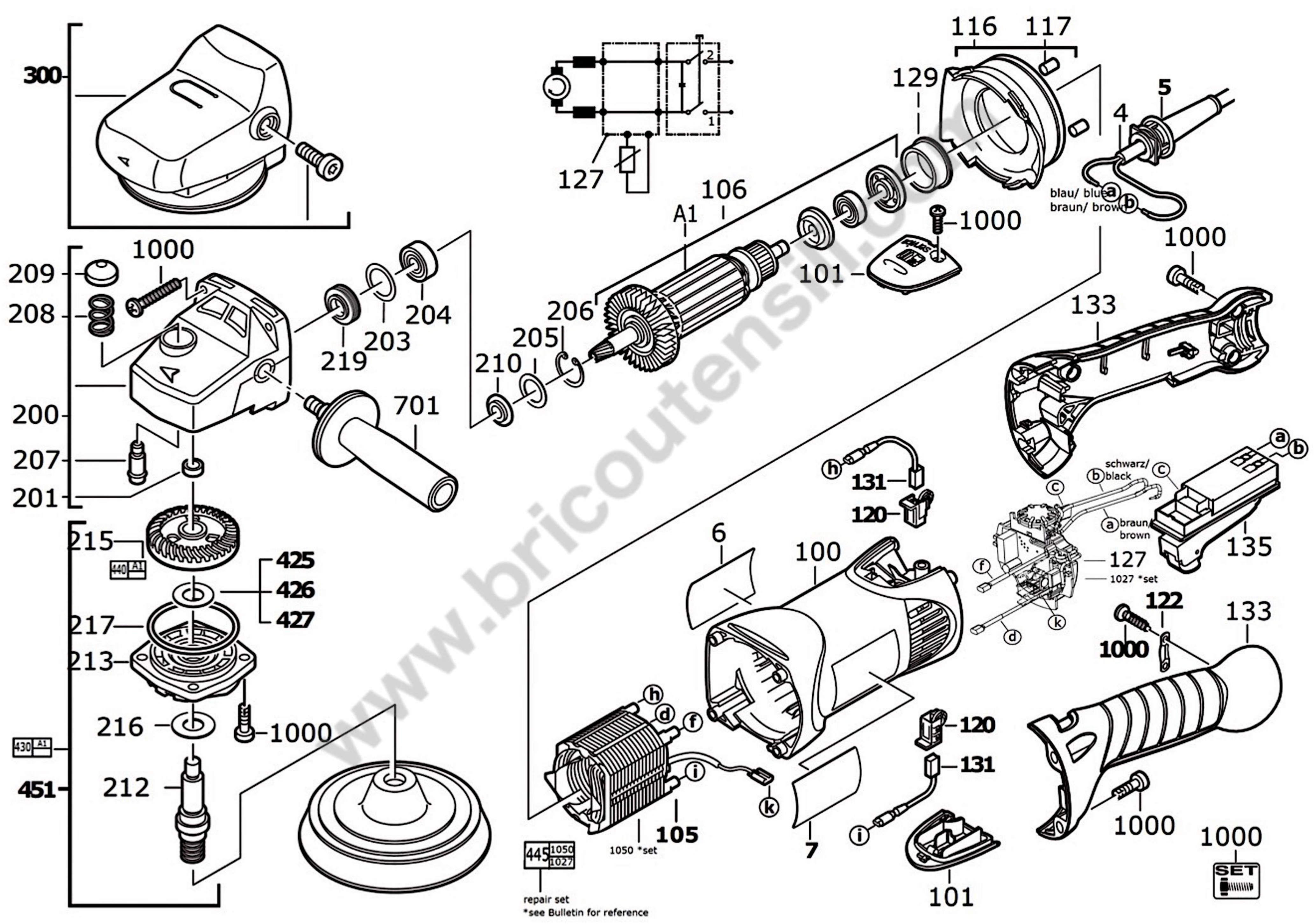

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
4
 photo_cameraImage coming soon 4931623311 CONNECTION CABLE €12.36
5
 photo_cameraImage coming soon 4931409552 PROTECTING COVER €5.15
7
 photo_cameraImage coming soon 4931412186 NAME PLATE €2.26
100
 photo_cameraImage coming soon 4931412191 MOTOR HOUSING €15.17
101
 photo_cameraImage coming soon 4931378134 COVER €5.15
105
 photo_cameraImage coming soon 4931442728 ELECTRIC FIELD €61.97
106
 photo_cameraImage coming soon 4931442755 ARMATURE ASSEMBLY - CALL US FOR AVAILABILITY €70.13
107
 photo_cameraImage coming soon 4931341088 FAN €5.15
108
 photo_cameraImage coming soon 4931624662 BALL BEARING €7.58
110
 photo_cameraImage coming soon 4931271823 INSULATING DISC €5.15
113
 Milwaukee K500S Magnetic Disc 4931426570 Milwaukee K500S Magnetic Disc €7.52
116
 photo_cameraImage coming soon 4931378135 AIR DEFLECTOR RING €5.15
117
 photo_cameraImage coming soon 4931409768 HOLDING-DOWN DEVICE €6.60
120
 photo_cameraImage coming soon 4931382268 BRUSH HOLDER €5.30
122
 photo_cameraImage coming soon 4931256500 CABLE COLLAR €5.30
129
 photo_cameraImage coming soon 4931326953 BEARING SLEEVE €6.60
131
 Milwaukee AGS15-125C Carbon Brush Set 4931381391 Milwaukee AGS15-125C Carbon Brush Set €14.09
133
 photo_cameraImage coming soon 4931412250 HANDLE €5.15
135
 photo_cameraImage coming soon 4931378983 SWITCH €16.69
200
 photo_cameraImage coming soon 4931412273 GEAR BOX €31.37
201
 photo_cameraImage coming soon 4931912093 SLEEVE N874989 HKO 0810 €5.30
203
 photo_cameraImage coming soon 4931362085 WASHER €2.26
204
 photo_cameraImage coming soon 4931368037 GROOVED BALL BEAR. €7.31
205
 photo_cameraImage coming soon 4931622761 DISC €5.15
206
 photo_cameraImage coming soon 4931616614 LOCKING RING €5.30
207
 photo_cameraImage coming soon 4931326929 LOCKING BOLT €5.15
208
 photo_cameraImage coming soon 4931326942 PRESSURE SPRING €5.15
209
 photo_cameraImage coming soon 4931326930 PUSH-BUTTON €5.15
210
 photo_cameraImage coming soon 4931624287 WASHER €2.26
212
 photo_cameraImage coming soon 4931409808 SPINDLE €7.58
213
 photo_cameraImage coming soon 4931378310 BEARING END PLATE €8.94
216
 photo_cameraImage coming soon 4931623480 DISC €4.86
217
 photo_cameraImage coming soon 4931623590 SEAL RING €4.86
219
 photo_cameraImage coming soon 4931378280 GREASE RETAIN.DISC €5.00
300
 photo_cameraImage coming soon 4931391472 POLISHER COVER KIT €13.93
425
 photo_cameraImage coming soon 4931808473 DISC N874237 12,2X22X0,1 €4.86
426
 photo_cameraImage coming soon 4931925940 DISC N874237 12,2X22X0,2 €4.86
427
 photo_cameraImage coming soon 4931624256 DISC €4.86
430
 photo_cameraImage coming soon 4931432441 REPAIR KIT €125.19
440
 photo_cameraImage coming soon 4931432442 REPAIR KIT €112.28
445
 photo_cameraImage coming soon 4931463376 REPAIR KIT €85.21
451
 photo_cameraImage coming soon 4931432462 GRINDING SPINDLE €49.73
701
 photo_cameraImage coming soon 4932409546 HANDLE €12.07
1000
 photo_cameraImage coming soon 4931378570 BOLT SET €15.25
Page 2 local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Pos. Item Price Buy
500
 photo_cameraImage coming soon 4932430450 Polishing backing pad €31.87
503
 photo_cameraImage coming soon 4932430451 Polishing sponge- soft €16.90

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

AEG PE150 Angle Polisher Spare Parts

Fix Your Angle Polisher PE150. All Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.

In the following table, look for the model of the Drill Driver and their spare part.
AEG PE150 Angle Polisher
PE150 ANGLE POLISHER IN2
4935412266 - PE150 - 4000455216 Pag.1
# Part Num. Description
4 4931623311 CONNECTION CABLE
5 4931409552 PROTECTING COVER
6 4931455218 RATING PLATE - Discontinued
7 4931412186 NAME PLATE
100 4931412191 MOTOR HOUSING
101 4931378134 COVER
105 4931442728 ELECTRIC FIELD
106 4931442755 ARMATURE ASSEMBLY - CALL US FOR AVAILABILITY
107 4931341088 FAN
108 4931624662 BALL BEARING
110 4931271823 INSULATING DISC
113 4931426570 MAGNETIC DISC
116 4931378135 AIR DEFLECTOR RING
117 4931409768 HOLDING-DOWN DEVICE
120 4931382268 BRUSH HOLDER
122 4931256500 CABLE COLLAR
127 4931455153 ELECTRONIC ELEMENT - Discontinued
129 4931326953 BEARING SLEEVE
131 4931381391 CARBON BRUSH SET
133 4931412250 HANDLE
135 4931378983 SWITCH
200 4931412273 GEAR BOX
201 4931912093 SLEEVE N874989 HKO 0810
203 4931362085 WASHER
204 4931368037 GROOVED BALL BEAR.
205 4931622761 DISC
206 4931616614 LOCKING RING
207 4931326929 LOCKING BOLT
208 4931326942 PRESSURE SPRING
209 4931326930 PUSH-BUTTON
210 4931624287 WASHER
212 4931409808 SPINDLE
213 4931378310 BEARING END PLATE
215 4931432141 WHEEL - Discontinued
216 4931623480 DISC
217 4931623590 SEAL RING
219 4931378280 GREASE RETAIN.DISC
300 4931391472 POLISHER COVER KIT
425 4931808473 DISC N874237 12,2X22X0,1
426 4931925940 DISC N874237 12,2X22X0,2
427 4931624256 DISC
430 4931432441 REPAIR KIT
440 4931432442 REPAIR KIT
445 4931463376 REPAIR KIT
451 4931432462 GRINDING SPINDLE
701 4932409546 HANDLE
1000 4931378570 BOLT SET
Accessories Pag.2
500 4932430450 Polishing backing pad
501 4932430453 Lambswool polishing disc
502 4932430452 Polishing sponge- hard
503 4932430451 Polishing sponge- soft
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s AEG websites, which we consider as reliable.Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice.We strongly recommend using the published information as a basic information subject to AEG brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
AEG PE150
6 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK AEG S/N:
AEG S/N START WITH (4) or (5) AND HAVE 10 DIGITS

Specific References

New

Download

AEG PE150 Drawing

AEG PE150 Drawing

Download (577.82KB)
