TTI Industries

AEG Percussion Drill SB2E1100RV Parts

SKU: AEG SB2E1100RV
€2.45
VAT included

AEG Percussion Drill SB2E1100RV Spare Parts

Fix Your Percussion Drill SB2E1100RV. All Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.
AEG Percussion Drill SB2E1100RV Parts
  • AEG Percussion Drill SB2E1100RV Parts
  • AEG Percussion Drill SB2E1100RV Parts - Drawing
TTI Industries

AEG Percussion Drill SB2E1100RV Parts

SKU: AEG SB2E1100RV Condition: New
€2.45
VAT included

AEG Percussion Drill SB2E1100RV Spare Parts

Fix Your Percussion Drill SB2E1100RV. All Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.
settings 32 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 7/10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK AEG S/N:: AEG S/N START WITH (4) or (5) AND HAVE 10 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
32 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

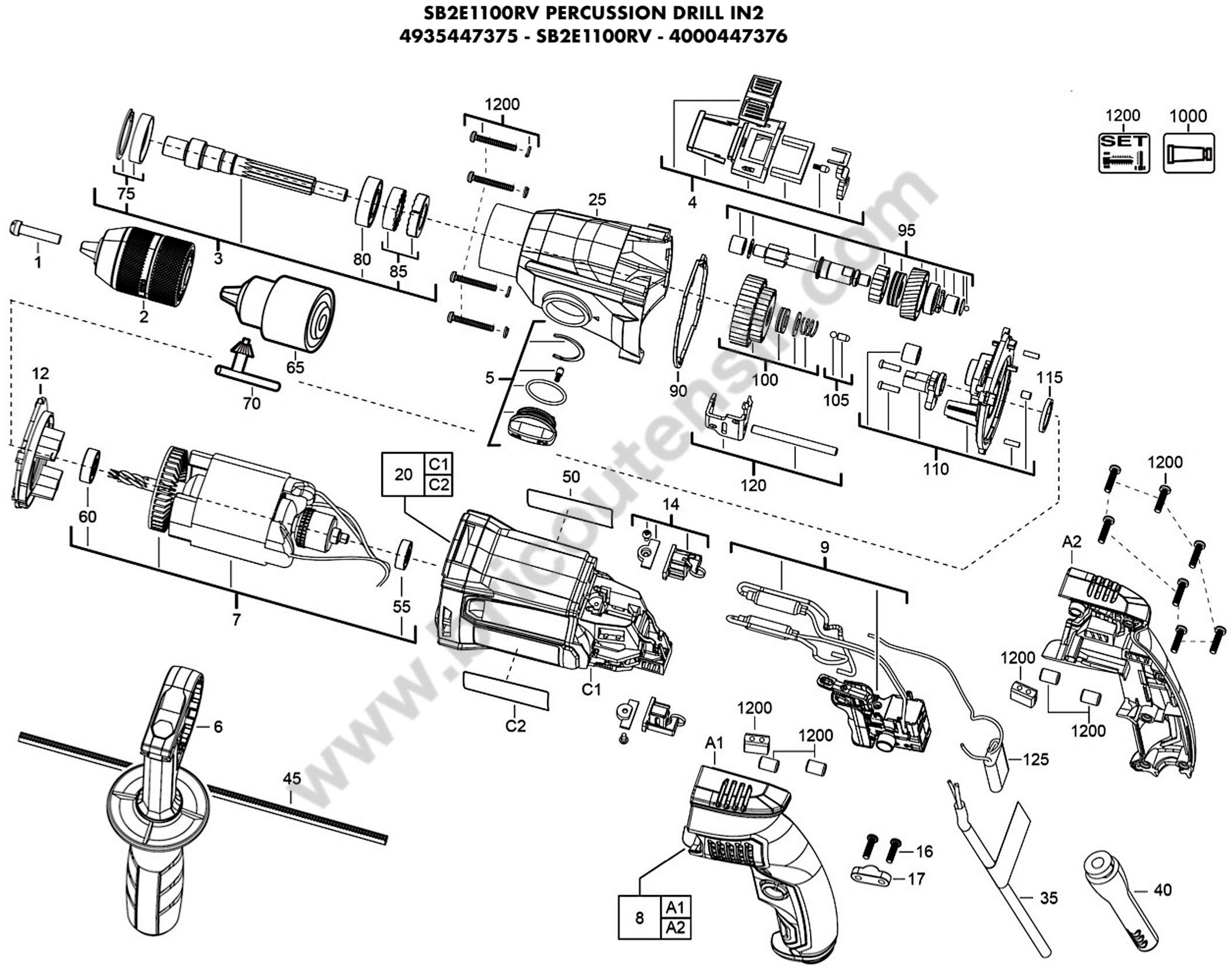

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 4931433297 SCREW €3.51
2
 photo_cameraImage coming soon 4931436632 Chuck €59.94
3
 photo_cameraImage coming soon 4931436631 DRIVING SHAFT €47.06
4
 photo_cameraImage coming soon 4931436603 Overload switch actuation lever €12.22
5
 photo_cameraImage coming soon 4931436604 SPEED GOVERNOR €8.44
6
 photo_cameraImage coming soon 4931436605 HANDLE €19.04
7
 photo_cameraImage coming soon 4931436606 MOTOR ASSEMBLY  €94.00
8
 photo_cameraImage coming soon 4931436607 HANDLE €19.04
9
 AEG SB2E1100RV Switch 4931436608 AEG SB2E1100RV Switch €26.11
12
 photo_cameraImage coming soon 4931436609 AIR DEFLECTOR RING €7.67
14
 AEG SB2E1100RV Carbon Brush Set 4931436610 AEG SB2E1100RV Carbon Brush Set €15.18
20
 photo_cameraImage coming soon 4931436611 MOTOR HOUSING €20.55
25
 photo_cameraImage coming soon 4931436612 GEAR BOX ASSY €44.03
35
 photo_cameraImage coming soon 4931436613 CONNECTION CABLE €22.07
40
 photo_cameraImage coming soon 4931436633 CABLE ENTRY SLEEVE €4.64
45
 photo_cameraImage coming soon 4931436615 DEPTH GAUGE €9.95
50
 photo_cameraImage coming soon 4931436616 RATING PLATE €5.41
55
 photo_cameraImage coming soon 4931436665 BALL BEARING €8.44
70
 photo_cameraImage coming soon 690176004 KEY €4.65
75
 photo_cameraImage coming soon 4931436619 SEAL RING €9.95
80
 photo_cameraImage coming soon 4931436620 BALL BEARING €8.44
85
 photo_cameraImage coming soon 4931436621 COUPLING €9.19
90
 photo_cameraImage coming soon 4931436622 SEAL €5.41
95
 photo_cameraImage coming soon 4931436623 COUPLING SET €51.60
100
 photo_cameraImage coming soon 4931436624 GEAR BOX KIT €27.36
105
 photo_cameraImage coming soon 4931436625 BOLT €4.64
110
 photo_cameraImage coming soon 4931436626 GEAR BOX INSULATION €30.39
115
 photo_cameraImage coming soon 4931436627 SEAL €4.64
120
 photo_cameraImage coming soon 4931436628 SPEED GOVERNOR €8.44
125
 AEG SB2E1100RV Capacitor 4931436629 AEG SB2E1100RV Capacitor €16.48
1000
 photo_cameraImage coming soon 4931443288 GEAR GREAS €10.88
1200
 photo_cameraImage coming soon 4931436614 BOLT SET €8.44

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

AEG Percussion Drill SB2E1100RV Spare Parts

Fix Your Percussion Drill SB2E1100RV. All Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.

In the following table, look for the model of the Drill Driver and their spare part.
AEG Percussion Drill SB2E1100RV
SB2E1100RV PERCUSSION DRILL IN2
4935447375 - SB2E1100RV - 4000447376
# Part Num. Description
1 4931433297 SCREW
2 4931436632 Chuck
3 4931436631 DRIVING SHAFT
4 4931436603 SWITCH LEVER
5 4931436604 SPEED GOVERNOR
6 4931436605 HANDLE
7 4931436606 MOTOR ASSEMBLY
8 4931436607 HANDLE
9 4931436608 SWITCH
12 4931436609 AIR DEFLECTOR RING
14 4931436610 CARBON BRUSH SET
16 660272001 SCREW - Discontinued
17 590501001 CLAMP - Discontinued
20 4931436611 MOTOR HOUSING
25 4931436612 GEAR BOX ASSY
35 4931436613 CONNECTION CABLE
40 4931436633 CABLE ENTRY SLEEVE
45 4931436615 DEPTH GAUGE
50 4931436616 RATING PLATE
55 4931436665 BALL BEARING
60 4931436664 BALL BEARING - Discontinued
65 4931436618 CHUCK KEY - Discontinued
70 690176004 KEY
75 4931436619 SEAL RING
80 4931436620 BALL BEARING
85 4931436621 COUPLING
90 4931436622 SEAL
95 4931436623 COUPLING SET
100 4931436624 GEAR BOX KIT
105 4931436625 BOLT
110 4931436626 GEAR BOX INSULATION
115 4931436627 SEAL
120 4931436628 SPEED GOVERNOR
125 4931436629 CAPACITOR
1000 4931443288 GEAR GREASE
1200 4931436614 BOLT SET
