AEG Jigsaw STEP100X Pendulum Parts

SKU: AEG STEP100X Pendulum
€2.45
VAT included

AEG Jigsaw STEP100X Pendulum Spare Parts

Fix Your Jigsaw STEP100X Pendulum. All Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.

AEG STEP100X Pendulum

AEG Jigsaw STEP100X Pendulum Parts
  • AEG Jigsaw STEP100X Pendulum Parts
  • AEG Jigsaw STEP100X Pendulum Parts - Drawing
TTI Industries

AEG Jigsaw STEP100X Pendulum Parts

SKU: AEG STEP100X Pendulum Condition: New
€2.45
VAT included

AEG Jigsaw STEP100X Pendulum Spare Parts

Fix Your Jigsaw STEP100X Pendulum. All Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.

AEG STEP100X Pendulum

settings 37 Spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 7/10 Business Days Approx.

SHIPPING IN: Usually Ships in 7/10 BUSINESS DAYS

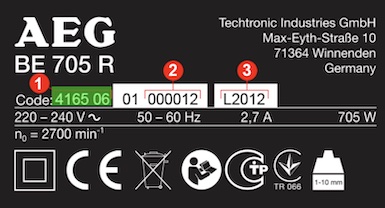

CHECK ITEM CODE OR S/N: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK AEG S/N: AEG S/N START WITH (4) or (5) AND HAVE 10 DIGITS
Machine Type: Jigsaw
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal PayPal Pay in 3 Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
37 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in 7/10 BUSINESS DAYS

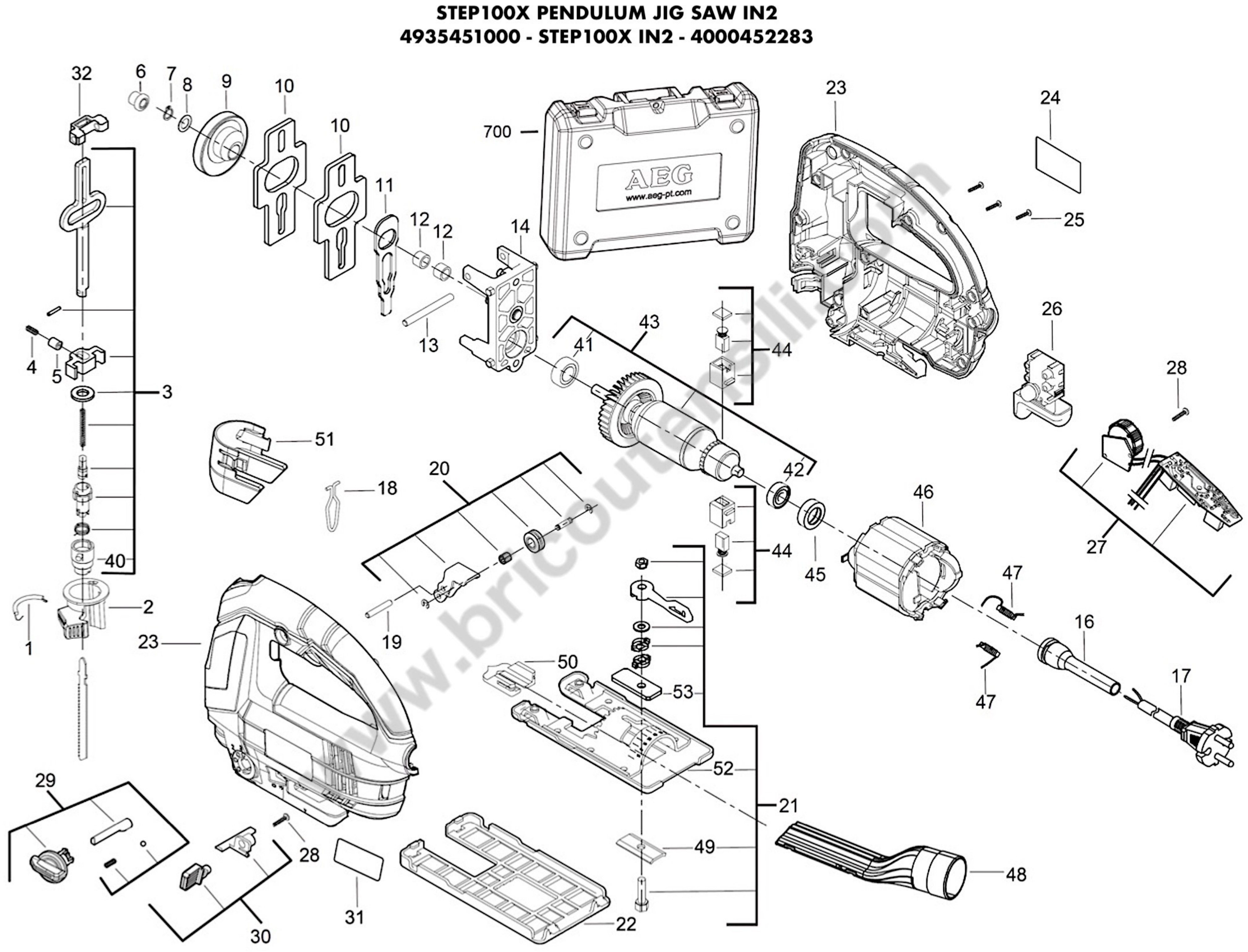

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 4931456306 SPRING €2.25
2
 photo_cameraImage coming soon 4931456307 CLAMPING LEVER €5.10
3
 NOSEPIECE 4931456308 NOSEPIECE €25.79
6
 photo_cameraImage coming soon 4931456265 GUIDE SLEEVE €2.25
8
 photo_cameraImage coming soon 4931456267 WASHER €5.10
9
 AEG STEP100X Worm Gear Wheel 4931456268 AEG STEP100X Worm Gear Wheel €19.61
11
 photo_cameraImage coming soon 4931456270 DRIVING PLATE €5.10
13
 photo_cameraImage coming soon 4931456272 PIN €5.10
14
 photo_cameraImage coming soon 4931456273 BRACKET €13.67
17
 photo_cameraImage coming soon 4931456275 CONNECTION CABLE €25.79
18
 photo_cameraImage coming soon 4931456276 CONNECTION €4.38
19
 photo_cameraImage coming soon 4931456277 PIN €4.38
20
 photo_cameraImage coming soon 4931456278 GUIDE ROLLER €10.81
21
 photo_cameraImage coming soon 4931456310 CLAMPING LEVER €28.65
22
 photo_cameraImage coming soon 4931456311 PROTECTING SHOE €5.10
23
 photo_cameraImage coming soon 4931456312 HOUSING €44.36
24
 photo_cameraImage coming soon 4931456313 RATING PLATE €2.25
26
 AEG STEP100X Switch 4931456285 AEG STEP100X Switch €14.92
27
 photo_cameraImage coming soon 4931456286 ELECTRONIC ELEMENT €22.23
29
 photo_cameraImage coming soon 4931456288 ADJUSTING BUTTON €5.10
30
 photo_cameraImage coming soon 4931456289 PLASTIC , ADJUST HEIGHT BRAKET / 099736 €2.25
31
 photo_cameraImage coming soon 4931456290 NAME PLATE €2.25
40
 ADAPTER SLEEVE 4931456315 ADAPTER SLEEVE €25.79 Not available for order
41
 photo_cameraImage coming soon 4931456294 BALL BEARING €10.81
42
 photo_cameraImage coming soon 4931456295 BALL BEARING €7.96
43
 photo_cameraImage coming soon 4931456296 ARMATURE ASSEMBLY €59.36
44
 AEG STEP100X Carbon Brush Set 4931456297 AEG STEP100X Carbon Brush Set €14.92
45
 photo_cameraImage coming soon 4931456298 BLADE RETAINER €5.10
46
 photo_cameraImage coming soon 4931456299 ELECTRIC FIELD €38.65
47
 photo_cameraImage coming soon 4931456300 BONDER €4.38
48
 photo_cameraImage coming soon 4931456302 DUST EXTR.CONNECTOR €4.38
49
 photo_cameraImage coming soon 4931456292 BACKING PLATE €4.38
50
 photo_cameraImage coming soon 4931456316 ANT-CHIPPING DEVICE €2.25
51
 photo_cameraImage coming soon 4931456304 DUST GUARD €4.38
52
 photo_cameraImage coming soon 4931456280 BASE PLATE €15.10
53
 photo_cameraImage coming soon 4931456279 BACKING PLATE €4.38
700
 photo_cameraImage coming soon 4931456317 CARRYING CASE €32.94

Shipping and delivery information will be available shortly.

FOR CODE 4931456315: BUSHING - NO LONGER AVAILABLE. AS A REPLACEMENT, PLEASE ORDER CODE: 4931456308

AEG Jigsaw STEP100X Pendulum Spare Parts

Fix Your Jigsaw STEP100X Pendulum. All Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.

In the following table, look for the model of the Drill Driver and their spare part.
AEG Jigsaw STEP100X PENDULUM

STEP100X PENDULUM JIG SAW IN2
4935451000 - STEP100X IN2 - 4000452283
# Part Num. Description
1 4931456306 SPRING
2 4931456307 CLAMPING LEVER
3 4931456308 NOSEPIECE
4 4931456262 SPRING - Discontinued
5 4931456263 ADAPTER SLEEVE - Discontinued
6 4931456265 GUIDE SLEEVE
7 4931456266 PROTECTION WASHER - Discontinued
8 4931456267 WASHER
9 4931456268 WORM GEAR WHEEL
10 4931456269 BALANCE WEIGHT - Discontinued
11 4931456270 DRIVING PLATE
12 4931456271 NEEDLE BEARING - Discontinued
13 4931456272 PIN
14 4931456273 BRACKET
16 4931456309 PLATE - Discontinued
17 4931456275 CONNECTION CABLE
18 4931456276 CONNECTION
19 4931456277 PIN
20 4931456278 GUIDE ROLLER
21 4931456310 CLAMPING LEVER
22 4931456311 PROTECTING SHOE
23 4931456312 HOUSING
24 4931456313 RATING PLATE
25 4931456284 SCREW - Discontinued
26 4931456285 SWITCH
27 4931456286 ELECTRONIC ELEMENT
28 4931456287 SCREW - Discontinued
29 4931456288 ADJUSTING BUTTON
30 4931456289 ADJUSTER
31 4931456290 NAME PLATE
32 4931456264 BUSH - Discontinued
40 4931456315 ADAPTER SLEEVE
41 4931456294 BALL BEARING
42 4931456295 BALL BEARING
43 4931456296 ARMATURE ASSEMBLY
44 4931456297 CARBON BRUSH SET
45 4931456298 RETAINER
46 4931456299 ELECTRIC FIELD
47 4931456300 BONDER
48 4931456302 DUST EXTR.CONNECTOR
49 4931456292 BACKING PLATE
50 4931456316 ANT-CHIPPING DEVICE
51 4931456304 DUST GUARD
52 4931456280 BASE PLATE
53 4931456279 BACKING PLATE
700 4931456317 CARRYING CASE
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s AEG websites, which we consider as reliable.Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice.We strongly recommend using the published information as a basic information subject to AEG brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
AEG STEP100X Pendulum
6 Items

Data sheet

SHIPPING IN
Usually Ships in 7/10 BUSINESS DAYS
CHECK ITEM CODE OR S/N
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
Machine Type
Jigsaw
CHECK AEG S/N
AEG S/N START WITH (4) or (5) AND HAVE 10 DIGITS

Specific References

New

Download

AEG STEP100X Pendulum Drawing

AEG STEP100X Pendulum Drawing

Download (475.3KB)
