TTI Industries

AEG Rotary Hammer KH5G Parts

SKU: AEG KH5G
€4.78
VAT included

AEG Rotary Hammer KH5G Spare Parts

Fix Your Combi Rotary Hammer KH5G. All Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.
AEG Rotary Hammer KH5G Parts
  • AEG Rotary Hammer KH5G Parts
  • AEG Rotary Hammer KH5G Parts - Drawing
TTI Industries

AEG Rotary Hammer KH5G Parts

SKU: AEG KH5G Condition: New
€4.78
VAT included

AEG Rotary Hammer KH5G Spare Parts

Fix Your Combi Rotary Hammer KH5G. All Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.
settings 61 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 7/10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK AEG S/N:: AEG S/N START WITH (4) or (5) AND HAVE 10 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
61 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

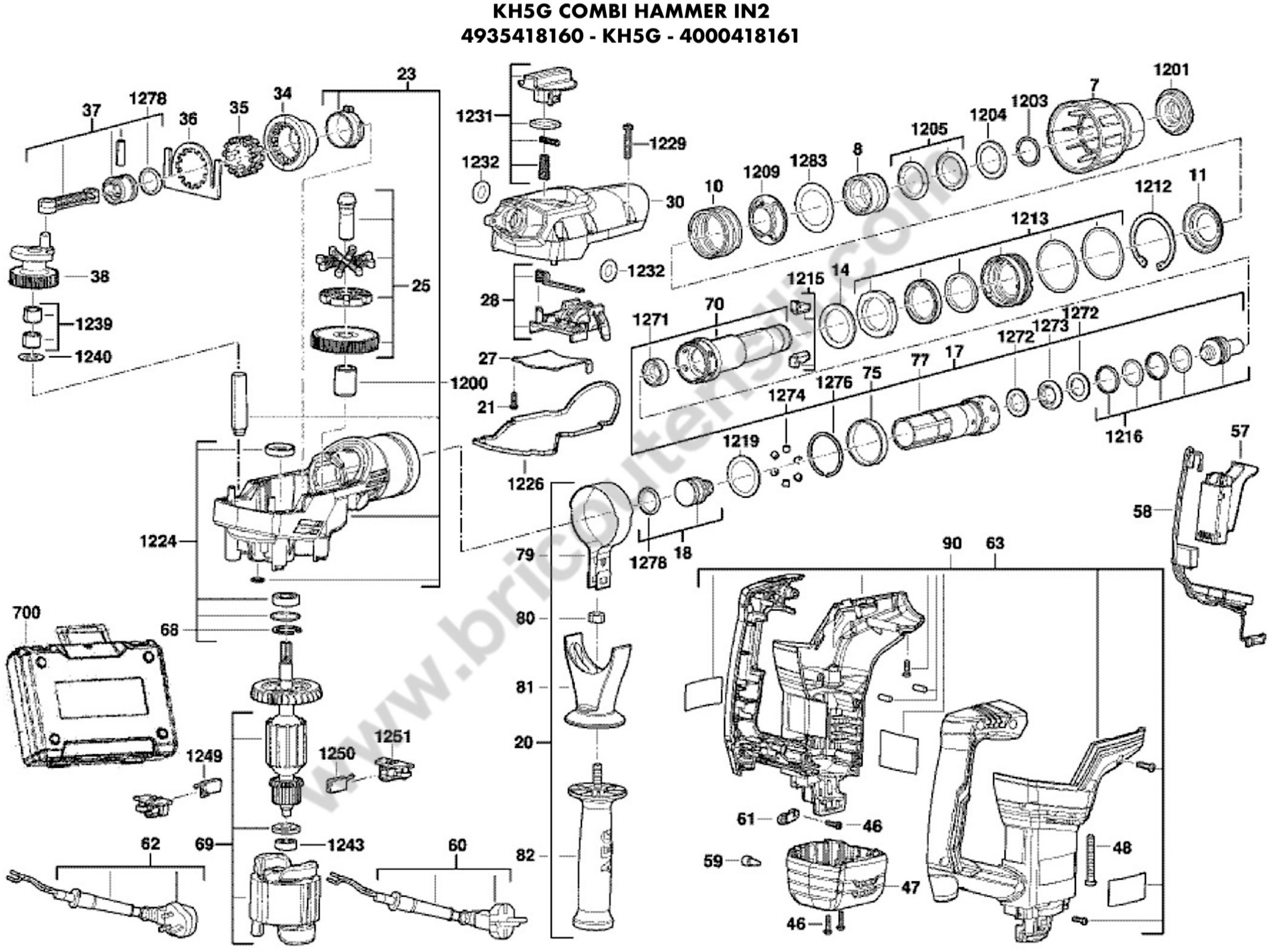

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
7
 photo_cameraImage coming soon 4931435355 INTERLOCK SLEEVE €4.64
10
 photo_cameraImage coming soon 4931435140 SPRING €2.38
11
 photo_cameraImage coming soon 633152001 PLATE €4.65
14
 photo_cameraImage coming soon 4931435143 O-RING €6.93
17
 photo_cameraImage coming soon 4931435146 SPINDLE SLEEVE €211.93
18
 photo_cameraImage coming soon 4931435147 SNAP DIE €41.00
20
 photo_cameraImage coming soon 4931435357 AUXILIARY HANDLE €31.90
21
 photo_cameraImage coming soon 4931435150 SCREW €4.07
23
 photo_cameraImage coming soon 4931435358 GEARWHEEL SET €90.97
25
 photo_cameraImage coming soon 4931435154 WORM GEAR WHEEL €43.42
27
 photo_cameraImage coming soon 4931435156 PLATE €5.41
28
 Milwaukee K500ST Fork 4931440524 Milwaukee K500ST Fork €7.90
30
 photo_cameraImage coming soon 4931435359 GEAR BOX ASSY €34.94
34
 photo_cameraImage coming soon 4931435163 BEVEL GEAR €37.98
35
 photo_cameraImage coming soon 4931435164 SLEEVE €8.44
36
 photo_cameraImage coming soon 4931435165 INTERLOCK PLATE €4.65
37
 Milwaukee K500S Piston & Conrod Assy 4931435166 Milwaukee K500S Piston & Conrod Assy €21.18
38
 photo_cameraImage coming soon 4931435167 EXCENTER €56.37
46
 photo_cameraImage coming soon 660024018 SCREW €2.38
57
 photo_cameraImage coming soon 4931435184 SWITCH €19.04
58
 AEG KH5G Electronic Element 4931435364 AEG KH5G Electronic Element €64.85
59
 photo_cameraImage coming soon 790009001 CONNECTOR €4.65
60
 photo_cameraImage coming soon 4931435187 CONNECTION CABLE €25.94
61
 photo_cameraImage coming soon 4931435190 CORD GRIP €4.65
62
 photo_cameraImage coming soon 4931435190 CORD GRIP €4.65
68
 photo_cameraImage coming soon 4931435192 PROTECTION WASHER €2.38
69
 AEG KH5G Armature 4931435366 AEG KH5G Armature €110.04
70
 photo_cameraImage coming soon 4931435195 DRIVER €95.60
75
 photo_cameraImage coming soon 4931435200 RING €23.58
77
 photo_cameraImage coming soon 4931435202 SPINDLE SLEEVE €60.95
79
 photo_cameraImage coming soon 4931435204 CLAMP - Discontinued €6.16
80
 photo_cameraImage coming soon 4931435205 NUT €4.65
81
 photo_cameraImage coming soon 4931435367 BLADE RETAINER €4.64
90
 photo_cameraImage coming soon 4931435369 RATING PLATE €6.92
700
 photo_cameraImage coming soon 4931435370 CARRYING CASE €51.60
1200
 photo_cameraImage coming soon 4931446717 MAINTENANCE SET €189.07
1201
 photo_cameraImage coming soon 4931435353 RUBBER CAP €5.44
1203
 photo_cameraImage coming soon 4931435134 HOLDING RING €2.38
1204
 photo_cameraImage coming soon 4931435135 BACKING FLANGE €5.41
1205
 photo_cameraImage coming soon 4931435354 O-RING €5.41
1209
 photo_cameraImage coming soon 4931466761 INTERLOCK ELEMENT €5.41
1212
 photo_cameraImage coming soon 4931435141 PROTECTION WASHER €3.40
1213
 Milwaukee K500ST Bearing end Plate 4931435142 Milwaukee K500ST Bearing end Plate €24.29
1215
 photo_cameraImage coming soon 4931435144 CAM €9.95
1216
 Milwaukee K500S Percussion Body 4931435145 Milwaukee K500S Percussion Body €53.15
1219
 photo_cameraImage coming soon 4931435148 DISC €2.38
1224
 photo_cameraImage coming soon 4931435153 BEARING KIT €25.10
1226
 photo_cameraImage coming soon 4931435155 SEAL €9.95
1229
 photo_cameraImage coming soon 4931435158 SCREW €2.38
1231
 Milwaukee K540S Knob 4931440532 Milwaukee K540S Knob €12.58
1239
 photo_cameraImage coming soon 4931435168 NEEDLE BEARING €8.44
1240
 photo_cameraImage coming soon 4931435169 WASHER €2.38
1243
 photo_cameraImage coming soon 4931435170 BALL BEARING €8.44
1249
 AEG KH5G Carbon Brush With Cut 4931435177 AEG KH5G Carbon Brush With Cut €10.24
1250
 AEG KH5G Carbon Brush 4931435179 AEG KH5G Carbon Brush €7.52
1271
 photo_cameraImage coming soon 4931435196 STOP WASHER €12.98
1272
 photo_cameraImage coming soon 4931435197 RING €5.41
1273
 photo_cameraImage coming soon 4931435198 RING €5.41
1274
 photo_cameraImage coming soon 4931435199 PIN €2.38
1276
 photo_cameraImage coming soon 4931435201 DISC €2.38
1278
 photo_cameraImage coming soon 4931435203 O-RING €5.41
1283
 photo_cameraImage coming soon 4931431199 WASHER €2.38

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

AEG Rotary Hammer KH5G Spare Parts

Fix Your Combi Rotary Hammer KH5G. All Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.

In the following table, look for the model of the Drill Driver and their spare part.
AEG Rotary Hammer KH5G
KH5G COMBI HAMMER IN2
4935418160 - KH5G - 4000418161
# Part Num. Description
7 4931435355 INTERLOCK SLEAVE
8 4931435356 INTERLOCK SLEAVE - Discontinued
10 4931435140 SPRING
11 633152001 PLATE
14 4931435143 O-RING
17 4931435146 SPINDLE SLEEVE
18 4931435147 SNAP DIE
20 4931435357 AUXILIARY HANDLE
21 4931435150 SCREW
23 4931435358 GEARWHEEL SET
25 4931435154 WORM GEAR WHEEL
27 4931435156 PLATE
28 4931440524 FORK
30 4931435359 GEAR BOX ASSY
34 4931435163 BEVEL GEAR
35 4931435164 SLEEVE
36 4931435165 INTERLOCK PLATE
37 4931435166 PISTON AND CON ROD ASSY
38 4931435167 EXCENTER
46 660024018 SCREW
47 4931435361 MOTOR COVER - Discontinued
48 4931435362 SCREW
57 4931435184 SWITCH
58 4931435364 ELECTRONIC ELEMENT
59 790009001 CONNECTOR
60 4931435187 CONNECTION CABLE
61 4931435190 CORD GRIP
62 4931435190 CORD GRIP
63 4931435365 HOUSING SET ASSY - Discontinued
68 4931435192 PROTECTION WASHER
69 4931435366 ARMATURE
70 4931435195 DRIVER
75 4931435200 RING
77 4931435202 SPINDLE SLEEVE
79 4931435204 CLAMP - Discontinued
80 4931435205 NUT
81 4931435367 RETAINER
82 4931435368 HANDLE COMPL. - Discontinued
90 4931435369 RATING PLATE
700 4931435370 CARRYING CASE
1200 4931446717 MAINTENANCE SET
1201 4931435353 RUBBER CAP
1203 4931435134 HOLDING RING
1204 4931435135 BACKING FLANGE
1205 4931435354 O-RING
1209 4931466761 HOLDING PLATE
1212 4931435141 PROTECTION WASHER
1213 4931435142 BEARING END PLATE
1215 4931435144 CAM
1216 4931435145 PERCUSSION BODY
1219 4931435148 DISC
1224 4931435153 BEARING KIT
1226 4931435155 SEAL
1229 4931435158 SCREW
1231 4931440532 KNOB
1232 4931435360 DAMPING RING - Discontinued
1239 4931435168 NEEDLE BEARING
1240 4931435169 WASHER
1243 4931435170 BALL BEARING
1249 4931435177 CARBON BRUSH
1250 4931435179 CARBON BRUSH
1251 4931435363 BRUSH HOLDER - Discontinued
1271 4931435196 STOP WASHER
1272 4931435197 RING
1273 4931435198 RING
1274 4931435199 PIN
1276 4931435201 DISC
1278 4931435203 O-RING
1283 4931431199 WASHER
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s AEG websites, which we consider as reliable.Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice.We strongly recommend using the published information as a basic information subject to AEG brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
