TTI Industries

AEG Combi Hammer BH24IE Parts

SKU: AEG BH24IE
€3.48
VAT included

AEG Combi Hammer BH24IE Spare Parts

Fix Your Combi Hammer BH24IE. All Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.
Combi Hammer BH24IE
AEG Combi Hammer BH24IE Parts
  • AEG Combi Hammer BH24IE Parts
  • AEG Combi Hammer BH24IE Parts - Drawing
TTI Industries

AEG Combi Hammer BH24IE Parts

SKU: AEG BH24IE Condition: New
€3.48
VAT included

AEG Combi Hammer BH24IE Spare Parts

Fix Your Combi Hammer BH24IE. All Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.
Combi Hammer BH24IE
settings 76 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 7/10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK AEG S/N:: AEG S/N START WITH (4) or (5) AND HAVE 10 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
76 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

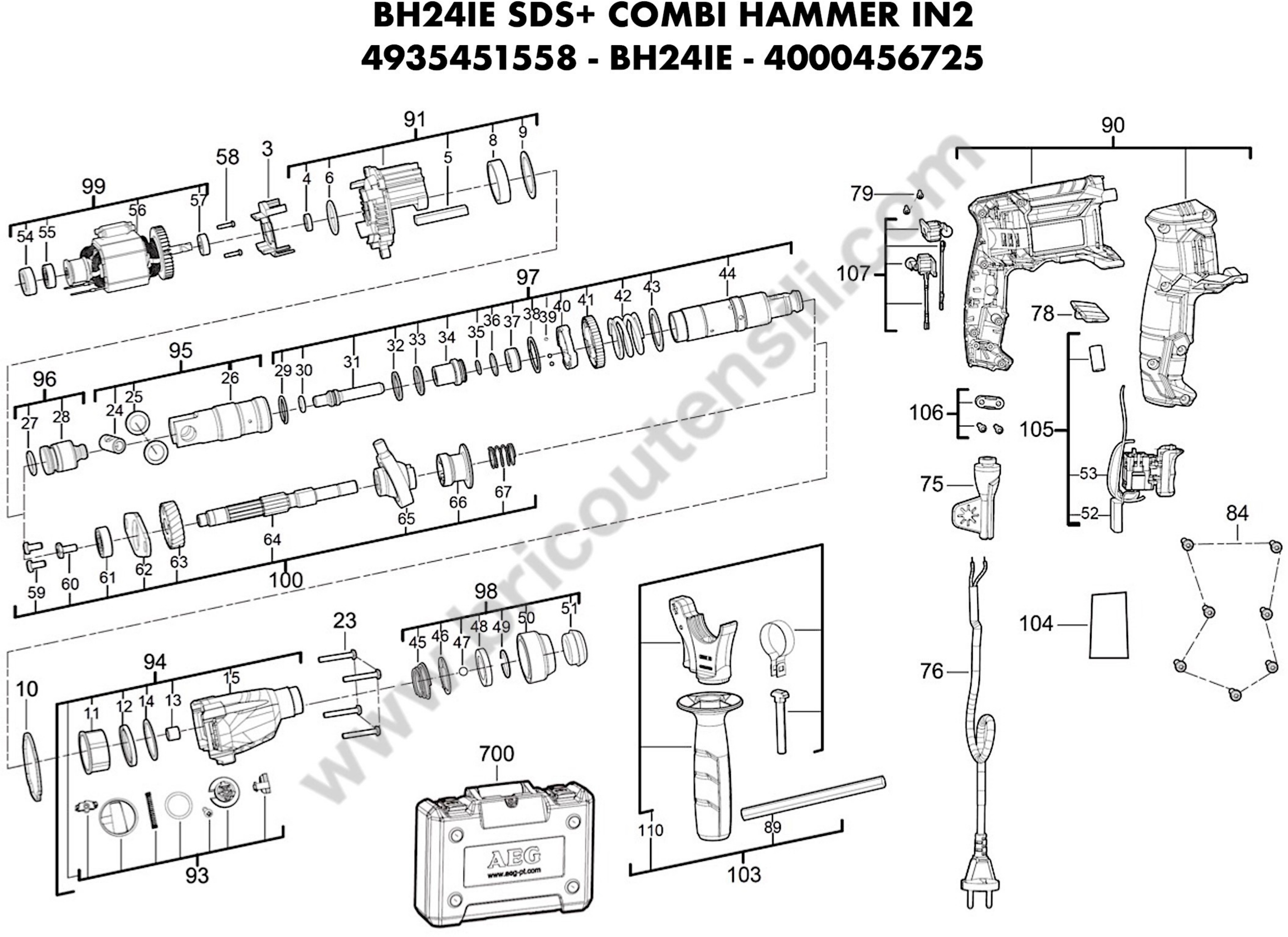

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
3
 photo_cameraImage coming soon 4931454439 COVER €3.38
4
 photo_cameraImage coming soon 4931454440 DATA PLATE Discontinued €4.42
5
 photo_cameraImage coming soon 4931454441 FELT €3.38
6
 photo_cameraImage coming soon 4931454442 O-RING €3.38
8
 photo_cameraImage coming soon 4931454443 BUSH €4.64
9
 photo_cameraImage coming soon 633516001 WASHER €3.51
10
 photo_cameraImage coming soon 4931454444 SEAL €5.41
11
 photo_cameraImage coming soon 4931454445 BUSH €6.92
12
 photo_cameraImage coming soon 4931454446 NEEDLE BEARING €6.92
13
 photo_cameraImage coming soon 4931454447 NEEDLE BEARING €9.95
14
 photo_cameraImage coming soon 633514001 COMPENSATING WASHER €3.38
15
 photo_cameraImage coming soon 4931454448 HOUSING €14.49
23
 photo_cameraImage coming soon 4931454449 SCREW €3.38
24
 photo_cameraImage coming soon 4931454450 BOLT €5.41
25
 photo_cameraImage coming soon 4931454451 WASHER €3.38
26
 photo_cameraImage coming soon 4931454452 CYLINDER €22.07
27
 photo_cameraImage coming soon 561994001 O-RING €3.38
29
 photo_cameraImage coming soon 672632001 CIRCLIPS FOR HOLE DIA 35 €4.86
30
 photo_cameraImage coming soon 4931454454 O-RING €3.51
31
 photo_cameraImage coming soon 4931454455 SNAP DIE €12.98
32
 photo_cameraImage coming soon 633518001 WASHER €3.51
33
 photo_cameraImage coming soon 562595001 O-RING €3.51
34
 photo_cameraImage coming soon 692722001 SLEEVE €9.62
35
 photo_cameraImage coming soon 4931454456 O-RING €3.51
36
 photo_cameraImage coming soon 4931436819 O-RING €3.38
37
 photo_cameraImage coming soon 4931454457 STOP WASHER €5.41
38
 photo_cameraImage coming soon 4931436804 HOLDING RING €3.38
39
 photo_cameraImage coming soon 611405001 BALL €3.51
40
 photo_cameraImage coming soon 4931454458 CLUTCH €5.41
41
 photo_cameraImage coming soon 4931454459 GEARWHEEL SET €6.92
42
 photo_cameraImage coming soon 4931454460 COUPLING RING €4.64
43
 photo_cameraImage coming soon 633517001 WASHER €3.51
45
 photo_cameraImage coming soon 4931453607 SPRING €4.18
46
 photo_cameraImage coming soon 632399001 PLATE €8.44
47
 photo_cameraImage coming soon 4931453606 BALL €5.55
48
 photo_cameraImage coming soon 633521001 RING OF CIRCUIT BREAKER €5.41
49
 photo_cameraImage coming soon 672631001 SPRING RING €4.64
50
 photo_cameraImage coming soon 522172001 CLAMPING SLEEVE €2.38
51
 photo_cameraImage coming soon 561993001 RUBBER CAP €3.51
52
 photo_cameraImage coming soon 4931454462 CAPACITOR €14.49
53
 photo_cameraImage coming soon 4931454463 SWITCH €19.04
54
 photo_cameraImage coming soon 4931454464 RUBBER CAP €2.38
55
 photo_cameraImage coming soon 4931454465 BALL BEARING €6.92
56
 photo_cameraImage coming soon 4931454466 MOTOR €87.95
57
 photo_cameraImage coming soon 4931454467 BALL BEARING €6.92
58
 photo_cameraImage coming soon 4931454468 SCREW €3.38
59
 photo_cameraImage coming soon 661286001 LOCKING SCREW €3.51
60
 photo_cameraImage coming soon 4931436821 SCREW €2.38
62
 photo_cameraImage coming soon 4931454470 WASHER €3.38
63
 photo_cameraImage coming soon 4931454471 WORM GEAR WHEEL €12.98
64
 photo_cameraImage coming soon 4931454472 REDUCT. GEAR SHAFT €19.04
65
 photo_cameraImage coming soon 4931466370 WOBBLE DRIVE €28.87
66
 photo_cameraImage coming soon 4931454474 COUPLING SLEEVE €5.41
67
 photo_cameraImage coming soon 4931454475 SPRING €3.38
76
 photo_cameraImage coming soon 4931454477 POWER CORD €28.87
78
 photo_cameraImage coming soon 4931454479 LEVER €5.41
79
 photo_cameraImage coming soon 660570005 SCREW €3.51
84
 photo_cameraImage coming soon 660024045 SCREW €2.38
89
 photo_cameraImage coming soon 4931384434 DEPTH GAUGE €5.30
90
 photo_cameraImage coming soon 4931454480 HANDLE HALF €33.42
91
 photo_cameraImage coming soon 4931454481 GEAR BOX €45.54
93
 photo_cameraImage coming soon 4931454482 BUTTON €9.95
94
 photo_cameraImage coming soon 4931454483 GEAR UNIT €37.97
95
 photo_cameraImage coming soon 4931454484 CYLINDER €31.90
96
 photo_cameraImage coming soon 4931454485 SNAP DIE €16.01
97
 photo_cameraImage coming soon 4931454504 SPINDLE SLEEVE €106.89
98
 photo_cameraImage coming soon 4931454487 RECEPTION PIECE €9.95
99
 AEG BH24IE Drive Motor 4931454488 AEG BH24IE Drive Motor €111.66
100
 photo_cameraImage coming soon 4931454489 REDUCTION GEAR €61.45
103
 photo_cameraImage coming soon 4931454490 HANDLE COMPL. €22.07
104
 photo_cameraImage coming soon 4931454491 RATING PLATE €2.38
105
 photo_cameraImage coming soon 4931454494 SWITCH €37.97
106
 photo_cameraImage coming soon 4931454495 PLATE €6.16
107
 AEG BH24IE Carbon Brush Set 4931454496 AEG BH24IE Carbon Brush Set €24.28
110
 photo_cameraImage coming soon 4931454497 HANDLE COMPL. €27.36
700
 photo_cameraImage coming soon 4931454498 CARRYING CASE €51.60

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

AEG Combi Hammer BH24IE Spare Parts

Fix Your Combi Hammer BH24IE. All Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.

In the following table, look for the model of the Drill Driver and their spare part.
AEG Percussion Drill SBE705RE
BH24IE SDS+ COMBI HAMMER IN2
4935451558 - BH24IE - 4000456725
# Part number Description
3 4931454439 COVER
4 5131000000 DATA PLATE Discontinued
5 4931454441 FELT
6 4931454442 O-RING
8 4931454443 BUSH
9 633516001 WASHER
10 4931454444 SEAL
11 4931454445 BUSH
12 4931454446 NEEDLE BEARING
13 4931454447 NEEDLE BEARING
14 633514001 COMPENSATING WASHER
15 4931454448 HOUSING
23 4931454449 SCREW
24 4931454450 BOLT
25 4931454451 WASHER
26 4931454452 CYLINDER
27 561994001 O-RING
28 4931454453 PERCUSSION BODY - DISCONTINUED
29 672632001 CIRCLIP
30 4931454454 O-RING
31 4931454455 SNAP DIE
32 633518001 WASHER
33 562595001 O-RING
34 692722001 SLEEVE
35 4931454456 O-RING
36 4931436819 O-RING
37 4931454457 STOP WASHER
38 4931436804 HOLDING RING
39 611405001 BALL
40 4931454458 CLUTCH
41 4931454459 GEARWHEEL SET
42 4931454460 COUPLING RING
43 633517001 WASHER
44 5131000000 SPINDLE Discontinued
45 4931453607 SPRING
46 632399001 PLATE
47 4931453606 BALL
48 633521001 RETAINING RING
49 672631001 SPRING RING
50 522172001 CLAMPING SLEEVE
51 561993001 RUBBER CAP
52 4931454462 CAPACITOR
53 4931454463 SWITCH
54 4931454464 RUBBER CAP
55 4931454465 BALL BEARING
56 4931454466 MOTOR
57 4931454467 BALL BEARING
58 4931454468 SCREW
59 661286001 LOCKING SCREW
60 4931436821 SCREW
61 5131000000 BALL BEARING Discontinued
62 4931454470 WASHER
63 4931454471 WORM GEAR WHEEL
64 4931454472 REDUCT. GEAR SHAFT
65 4931466370 WOBBLE DRIVE
66 4931454474 COUPLING SLEEVE
67 4931454475 SPRING
75 5131000000 RETAINER Discontinued
76 4931454477 POWER CORD
78 4931454479 LEVER
79 660570005 SCREW
84 660024045 SCREW
89 4931384434 DEPTH GAUGE
90 4931454480 HANDLE HALF
91 4931454481 GEAR BOX
93 4931454482 BUTTON
94 4931454483 GEAR UNIT
95 4931454484 CYLINDER
96 4931454485 SNAP DIE
97 4931454504 SPINDLE SLEEVE
98 4931454487 RECEPTION PIECE
99 4931454488 DRIVE MOTOR
100 4931454489 REDUCTION GEAR
103 4931454490 HANDLE COMPL.
104 4931454491 RATING PLATE
105 4931454494 SWITCH
106 4931454495 PLATE
107 4931454496 CARBON BRUSH SET
110 4931454497 HANDLE COMPL.
700 4931454498 CARRYING CASE
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s AEG websites, which we consider as reliable.Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice.We strongly recommend using the published information as a basic information subject to AEG brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
AEG BH24IE
6 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK AEG S/N:
AEG S/N START WITH (4) or (5) AND HAVE 10 DIGITS

Specific References

New

Download

AEG BH24IE Drawing

AEG BH24IE Drawing

Download (427.31KB)
