FIAC spa

AEG Spare Parts for Compressor B 100-36

SKU: AEG B100/36 - 1121480402
€118.92
VAT included

AEG Spare Parts for Compressor B 100/36

We have the original Spares AEG for Air Compressor B 100/36 - 1121480402 the Repair information, Exploded Diagram, parts list and tool repair that help you need to get your tools running like new again.

Fix Your Air Compressor B 100/36 - 1121480402. All Spares are original and can be supplied at Low and discounted prices.
AEG Spare Parts for Compressor B 100-36
  • AEG Spare Parts for Compressor B 100-36
  • AEG Spare Parts for Compressor B 100-36 - Drawing
  • AEG Spare Parts for Compressor B 100-36 - Pump Unit Drawing
FIAC spa

AEG Spare Parts for Compressor B 100-36

SKU: AEG B100/36 - 1121480402 Condition: New
€118.92
VAT included

AEG Spare Parts for Compressor B 100/36

We have the original Spares AEG for Air Compressor B 100/36 - 1121480402 the Repair information, Exploded Diagram, parts list and tool repair that help you need to get your tools running like new again.

Fix Your Air Compressor B 100/36 - 1121480402. All Spares are original and can be supplied at Low and discounted prices.
settings 70 spare parts
description 2 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Shipped on: 10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
MORE INFO:: [email protected]
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
70 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

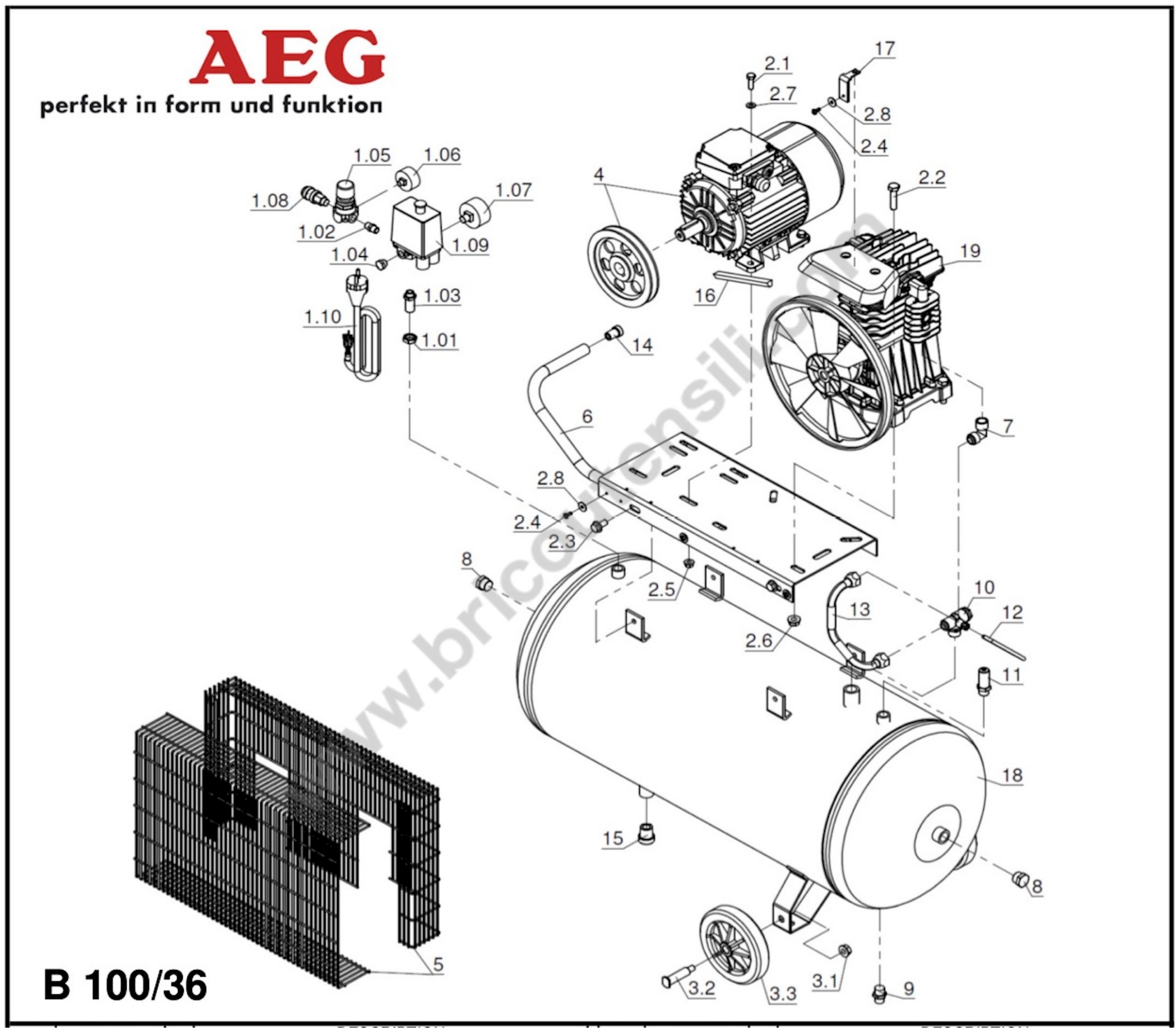

Esploso pagina 1
Pos. Item Price Buy
1
 photo_cameraImage coming soon 4054720000 PRESS. SWITCH KIT €118.92
1,01
 Fiac Locking Nut 3/8" 7023050000 Fiac Locking Nut 3/8" €6.42
1,02
 photo_cameraImage coming soon 7081090000 Fitting 1/4 "MM €5.87
1,03
 FIAC Reduction 3/8"-1/4" 7088060000 FIAC Reduction 3/8"-1/4" €18.30
1,04
 Brass Cap M1/4" for Pump Units Fiac 7090090000 Brass Cap M1/4" for Pump Units Fiac €4.42
1,05
 Pressure Regulator for Air Compressor 25/50 lt 7100640000 Pressure Regulator for Air Compressor 25/50 lt €25.40
1,06
 Pressure Gauge Ø40-1/8" for Air Compressors Fiac Cosmos-ECU-FX 7110240000 Pressure Gauge Ø40-1/8" for Air Compressors Fiac Cosmos-ECU-FX €17.72
1,07
 Pressure Gauge Ø50-1/4" for Air Compressors Fiac Cosmos-ECU-FX 7110300000 Pressure Gauge Ø50-1/4" for Air Compressors Fiac Cosmos-ECU-FX €19.95
1,08
 photo_cameraImage coming soon 7130570000 Tap Universal M1/4" €11.96
1,09
 Pressure Switch 8 BAR CE for air Compressors FIAC 7250740000 Pressure Switch 8 BAR CE for air Compressors FIAC €27.75
1,1
 photo_cameraImage coming soon 7326450000 Infeed cable €15.31
2
 photo_cameraImage coming soon 4080540000 Screw kit €13.63
3
 Wheel Kit D.150 for 50 Lt FIAC AIR Compressors + Apollo 4083010000 Wheel Kit D.150 for 50 Lt FIAC AIR Compressors + Apollo €21.06
4
 photo_cameraImage coming soon 4151110000 Motor/pulley kit €439.20
4
 Cylinder Carter Gasket for Pump Units FIAC AB 248-338 9700001077 Cylinder Carter Gasket for Pump Units FIAC AB 248-338 €4.34
5
 photo_cameraImage coming soon 4170010000 belt guard Kit €82.24
6
 photo_cameraImage coming soon 5010990008 basis €99.11
7
 photo_cameraImage coming soon 7080160000 Fitting "L" 1/2 €11.84
8
 photo_cameraImage coming soon 7090030000 Cap M1/2" €7.24
9
 Drain Tap 3/8" for Air COmpressors FIAC 7130160000 Drain Tap 3/8" for Air COmpressors FIAC €12.14
10
 Check Valve MM 1/2"-DX for Air Compressors 7190090000 Check Valve MM 1/2"-DX for Air Compressors €29.61
11
 FIAC Safety Valve M3/8 10,4Bar 7192090000 FIAC Safety Valve M3/8 10,4Bar €26.58
11
 O-Ring 144 139.69x3.53 for Pumping Units FIAC AB248-268-338-360 9100280010 O-Ring 144 139.69x3.53 for Pumping Units FIAC AB248-268-338-360 €4.34
12
 Black Rilsan Tube Ø 6X4 for Compressors Fiac 7230010000 Black Rilsan Tube Ø 6X4 for Compressors Fiac €7.28
13
 Air Supply Hose mm 14 for Pumping Unit FIAC AB 360 7234620000 Air Supply Hose mm 14 for Pumping Unit FIAC AB 360 €30.64
14
 photo_cameraImage coming soon 7360020000 Grommet Ø16 €1.85
15
 Rubber Foot for Air Compressor FIAC Cosmos 50 7360040000 Rubber Foot for Air Compressor FIAC Cosmos 50 €4.34
16
 photo_cameraImage coming soon 7370060000 V-Belt A 46 €13.48
17
 photo_cameraImage coming soon 7458510000 Belt Guard Bracket €5.44
18
 photo_cameraImage coming soon 5157640008 Tank €272.06
19
 photo_cameraImage coming soon 9101880000 Pumping Unit AB360 €242.01
Page 2 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

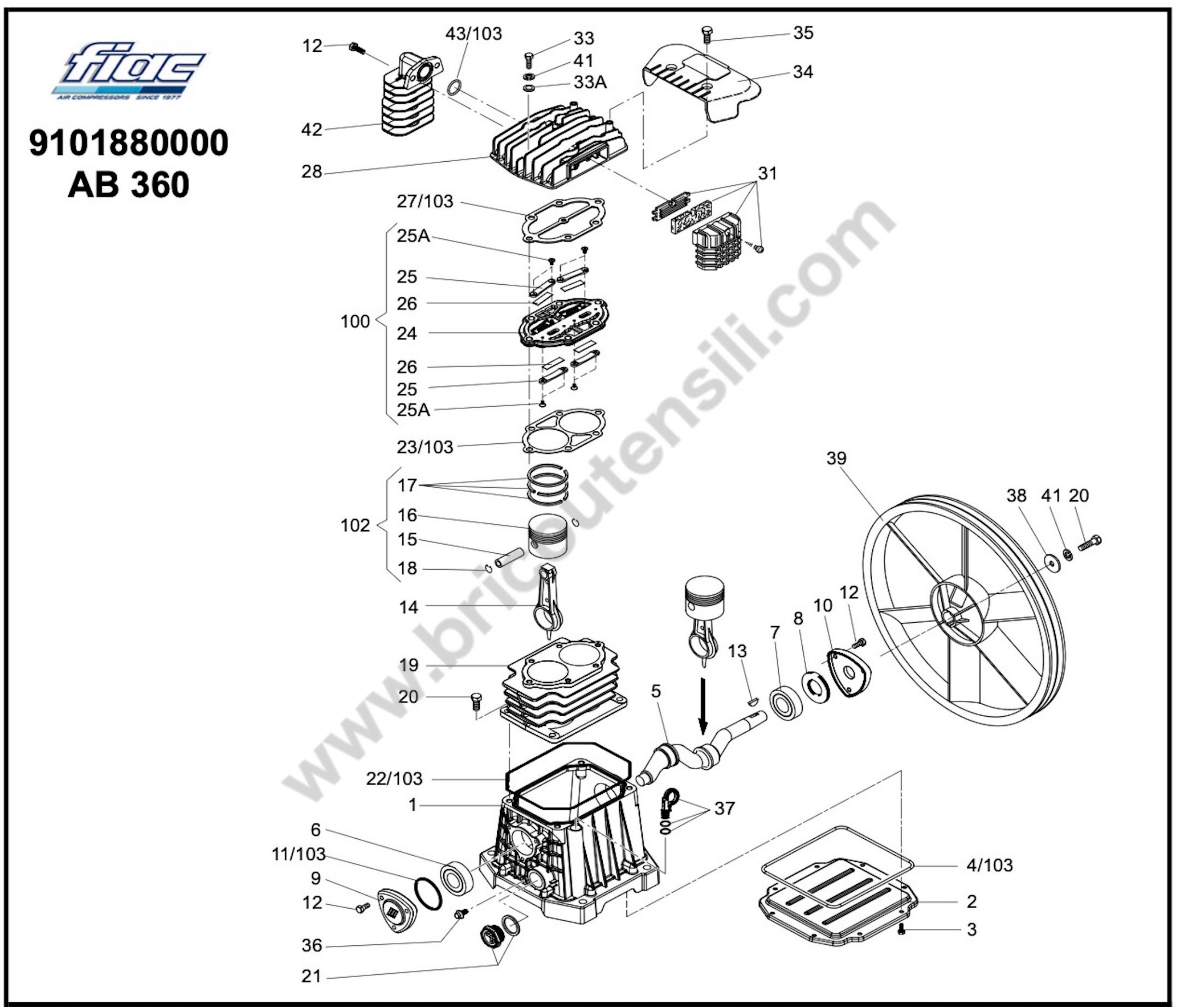

Esploso pagina 2
Pos. Item Price Buy
1
 photo_cameraImage coming soon 4054720000 PRESS. SWITCH KIT €118.92
1
 photo_cameraImage coming soon 9700001075 Case €79.81
2
 photo_cameraImage coming soon 4080540000 Screw kit €13.63
2
 FIAC AB268 Carter Cover 9700001076 FIAC AB268 Carter Cover €20.50
3
 Wheel Kit D.150 for 50 Lt FIAC AIR Compressors + Apollo 4083010000 Wheel Kit D.150 for 50 Lt FIAC AIR Compressors + Apollo €21.06
3
 photo_cameraImage coming soon 9700000531 Screw M5X18 UNI7687 €1.82
4
 Cylinder Carter Gasket for Pump Units FIAC AB 248-338 9700001077 Cylinder Carter Gasket for Pump Units FIAC AB 248-338 €4.34
5
 Crank Shaft for Pumping Units FIAC AB248-338-360 9100270140 Crank Shaft for Pumping Units FIAC AB248-338-360 €58.71 Not available for order
6
 Crank Shaft Ball Bearing 6203 for Pump Unit FIAC AB 360 7060180000 Crank Shaft Ball Bearing 6203 for Pump Unit FIAC AB 360 €11.77
7
 Crank Shaft Ball Bearing 6204 for Pump Unit FIAC AB 360 7060200000 Crank Shaft Ball Bearing 6204 for Pump Unit FIAC AB 360 €12.86
8
 Oil Seal for Pumping Units FIAC AB248-338-360 9100270150 Oil Seal for Pumping Units FIAC AB248-338-360 €4.30
9
 Front Cover for Pumping Units FIAC AB248-268-338-360 9100270160 Front Cover for Pumping Units FIAC AB248-268-338-360 €12.15
10
 Rear Cover for Pumping Units FIAC AB248-268-338-360 9100270170 Rear Cover for Pumping Units FIAC AB248-268-338-360 €12.15
11
 O-Ring 144 139.69x3.53 for Pumping Units FIAC AB248-268-338-360 9100280010 O-Ring 144 139.69x3.53 for Pumping Units FIAC AB248-268-338-360 €4.34
12
 photo_cameraImage coming soon 7011420000 Screw M6X16 UNI-5739 €1.52
13
 FIAC AB268 Flywheel Key 9100280020 FIAC AB268 Flywheel Key €1.29
14
 Conrod for Pumping unit FIAC AB338-360 9100270010 Conrod for Pumping unit FIAC AB338-360 €29.72
15
 FIAC AB360 Piston Pin 9100270020 FIAC AB360 Piston Pin €4.47
16
 Piston for Pumping unit FIAC AB 360 9100270030 Piston for Pumping unit FIAC AB 360 €26.10
17
 Piston Rings for Pumping Unit FIAC AB 360-410-510-512 4080120000 Piston Rings for Pumping Unit FIAC AB 360-410-510-512 €30.99
18
 FIAC AB360 Piston Pin Seeger 9100270070 FIAC AB360 Piston Pin Seeger €1.47
19
 photo_cameraImage coming soon 9100270080 Cylinder €96.35
20
 photo_cameraImage coming soon 7012220000 Screw M8X 25 UNI-8112 €1.52
21
 FIAC Pump Unit AB268 Oil Sight Glass 9700000408 FIAC Pump Unit AB268 Oil Sight Glass €7.04
22
 Cylinder Carter Gasket for Air Compressors FIAC AB 248-338-360 9100270180 Cylinder Carter Gasket for Air Compressors FIAC AB 248-338-360 €9.50
23
 Cylinder Plate Gasket for Air Compressors FIAC AB248-360 9100270190 Cylinder Plate Gasket for Air Compressors FIAC AB248-360 €6.13
25
 photo_cameraImage coming soon 7198220000 VALVE €4.97
27
 Cylinder Head Plate Gasket for Air Compressors FIAC AB248-360 9100270210 Cylinder Head Plate Gasket for Air Compressors FIAC AB248-360 €7.12
28
 photo_cameraImage coming soon 9100270100 Top €43.81
31
 photo_cameraImage coming soon 9700001902 INTAKE FILTER KIT €11.42
33
 photo_cameraImage coming soon 7010080000 Screw M8x35 UNI-5931 €1.52
33A
 photo_cameraImage coming soon 7030030000 Washer 8 UNI-6592 €1.42
34
 Air Conveyor for Pumping Units FIAC AB248-268-338-360 9100270220 Air Conveyor for Pumping Units FIAC AB248-268-338-360 €10.61
35
 photo_cameraImage coming soon 7012090000 Screw M5X12 UNI-8112 €1.52
36
 photo_cameraImage coming soon 7011460000 Screw M6X16 TAP-TITE €1.48
37
 Oil Vent Cap for Air Compressor Pump Unit FIAC AB 268 9700000300 Oil Vent Cap for Air Compressor Pump Unit FIAC AB 268 €6.11
38
 photo_cameraImage coming soon 7030270000 Washer 8 5X30X4 UNI-6593 €1.52
39
 Flywheel for Pumping unit Fiac AB 248-338-360 9100270230 Flywheel for Pumping unit Fiac AB 248-338-360 €64.36
41
 photo_cameraImage coming soon 9700010087 WASHER €4.47
42
 photo_cameraImage coming soon 9700002651 Cooler €19.04
43
 O_ring 9100270280 O_ring €4.47
102
 photo_cameraImage coming soon 9700002034 PISTON KIT €35.06
102A
 FIAC AB360 Conrod-Piston Kit 9700010170 FIAC AB360 Conrod-Piston Kit €31.73
103
 FIAC AB360 Gasket Kit 9700002932 FIAC AB360 Gasket Kit €21.53

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

AEG Spare Parts for Compressor B 100/36

Fix Your Air Compressor B 100/36 - 1121480402. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.

In the following table, look for the model of the Air Compressor and the respective parts of the code.
B 100/36 - 1121480402

AEG Air Compressor B 100/36 - 1121480402 Pag.1
# Part Num. Description
1 4054720000 Press. Switch kit
1,01 7023050000 Locking nut
1,02 7081090000 Joint
1,03 7088060000 Joint
1,04 7090090000 Plug
1,05 7100640000 Pressure reducer
1,06 7110240000 Pressure gauge
1,07 7110300000 Pressure gauge
1,08 7130570000 Universal Tap
1,09 7250740000 Pressure switch
1,1 7326450000 Infeed cable
2 4080540000 Screw kit
2,1 x Screw
2,2 x Screw
2,3 x Screw
2,4 x Screw
2,5 x Nut
2,6 x Nut
2,7 x Washer
2,8 x Washer
3 4083010000 Wheel kit
3,1 X Nut
3,2 X Wheel pin
3,3 X Wheel
4 4151110000 Motor/pulley kit
5 4170010000 Belt guard kit
6 5010990008 Base
7 7080160000 Joint
8 7090030000 Plug
9 7130160000 Discharge tap
10 7190090000 Non return valve
11 7192090000 Safety valve
12 7230010000 Rilsan hose
13 7234620000 Infeed hose
14 7360020000 Rubber
15 7360040000 Rubber
16 7370060000 Belt
17 7458510000 Belt guard Support Staffa Paracinghia
18 5157640008 Tank
19 9101880000 Pump unit
FIAC Pump Unit AB 360 9101880000 Pag.2
# Part Num. Description
1 9700001075 Crankcase
2 9700001076 Carter Cover
3 9700000531 Screw
4 9700001077 O_ring
5 9100270140 Crankshaft
6 7060180000 Bearing
7 7060200000 Bearing
8 9100270150 Oil seal
9 9100270160 Cover
10 9100270170 Cover
11 9100280010 O_ring
12 7011420000 Screw
13 9100280020 Key
14 9100270010 Connection Rod
15 9100270020 Piston pin
16 9100270030 Piston
17 4080120000 Piston rings
18 9100270070 Ring
19 9100270080 Cylinder
20 7012220000 Screw
21 9700000408 Oil level sight glass
22 9100270180 O_ring
23 9100270190 Gasket
24 x Valve plate
25 7198220000 Valve stopper
25A 7010790000 Screw
26 7198210000 Valve - DISCONTINUED
27 9100270210 Gasket
28 9100270100 Head
31 9700001902 Set Intake filter
33 7010080000 Screw
33A 7030030000 Washer
34 9100270220 Air conveyor
35 7012090000 Screw
36 7011460000 Screw
37 9700000300 Breather pipe plug kit
38 7030270000 Washer
39 9100270230 Flywheel
41 9700010087 Washer
42 9700002651 Aftercooler
43 9100270280 O_ring
100 4231280000 Valve plate assembly
102 9700002034 Piston ASSY
102A 9700010170 CONROD PISTON KIT
103 9700002932 Gasket KIT
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s AEG websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to AEG brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
AEG B100/36 - 1121480402
6 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS
MORE INFO:
[email protected]
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT

Specific References

New

Download

AEG B 100-36 Drawing

AEG B 100-36 Drawing

Download (774.07KB)

You might also like

Flywheel for Pumping unit Fiac AB 410-510-512
FIAC spa SKU: 7201010000
Flywheel for Pumping unit Fiac AB 410-510-512
Flywheel for Pumping unit Fiac AB 410-510-512 Genuine Part FIAC, Flywheel Entirely in aluminum, with V groove for pumping units  AB 410-510-512. For Pumping unit AB 410-510-512 - Flywheel DP350 - 1 Throat 3V - Code: 7201010000
AVAILABLE €168.83
Details
Check Valve F-M 1/2''-1/2'' for Air Compressors
FIAC spa SKU: 7190010000
Check Valve F-M 1/2''-1/2'' for Air Compressors
Check Valve F-M 1/2''-1/2'' for Air Compressors Check valve for air compressors, Model Female-Male 1/2''-1/2'' FVR545, complete with nipple. Parts for the following products: - Thread tank: Feale 1/2'' - Hose...
AVAILABLE €27.64
Details
Gaskets kit for Air Compressor Pump Unit FIAC AB 268
FIAC spa SKU: 9700003271
Gaskets kit for Air Compressor Pump Unit FIAC AB 268
Gaskets kit for Air Compressor Pump Unit FIAC AB 268 Genuine Spare Parts FIAC. Complete Gaskets kit with all needed to repair Pump Unit AB 268 Part for the following products: -  Pump Unit FIAC AB...
AVAILABLE €21.06
Details
Brass Cap M1/4" for Pump Units Fiac
FIAC spa SKU: 7090090000
Brass Cap M1/4" for Pump Units Fiac
Brass Cap M1/4" for Pump Units Fiac Genuine spare part FIAC, Chrome-Plated Brass Cap M1/4" for Pump Units, Engine Compressors, Air Compressors. Part for the following products: - Pump...
AVAILABLE €4.42
Details
Pump unit for air compressor Mod. AB 515
FIAC spa SKU: AB515 - 1123020504
Pump unit for air compressor Mod. AB 515
Pump unit for air compressor Mod. AB 515 Pump unit for air compressors Fiac 150/200/300 Liters lubricated single-stage belt drive. The AB series distinguishes the two-cylinder compressor units with single-stage belt transmission and...
AVAILABLE €397.19
Details
Kit Adjustment AB 515 150/20 4HP for Pump Unit Fiac AB510
FIAC spa SKU: 3030040000
Kit Adjustment AB 515 150/20 4HP for Pump Unit Fiac AB510
Kit Adjustment AB 515 150/20 4HP for Pump Unit Fiac AB510 Original replacement part FIAC, Kit Adjustment with AB 515 150/20 4HP, on Air Compressor AB200 with Old Pump Unit AB510 4HP. Part for the following products: - For AIR...
AVAILABLE €52.27
Details
Head for Air Compressor Pump Unit FIAC AB 268
FIAC spa SKU: 7570140000
Head for Air Compressor Pump Unit FIAC AB 268
Head for Air Compressor Pump Unit FIAC AB 268 Genuine Spare Parts FIAC, Head for Pump Unit AB 258 - AB 268. Part for the following products: -  Pump Unit AB 268 -  Air Compressor B 50-26 AEG - 1121480151-201710 ING -  Air Compressor...
on 7/10 Business Days Approx. €55.50
Details
Wheel Kit D.150 for 50 Lt FIAC AIR Compressors + Apollo
FIAC spa SKU: 4083010000
Wheel Kit D.150 for 50 Lt FIAC AIR Compressors + Apollo
Wheel Kit D.150 for 50 Lt FIAC AIR Compressors + Apollo Original Part FIAC, Wheel Kit D.150 for FIAC Air Compressors - Michelin Air Compressors - AEG Part for the following products: -  Air Compressor AEG AB 200-360 MC...
on 7/10 Business Days Approx €21.06
Details
FIAC Pump Unit AB268 Oil Sight Glass
FIAC spa SKU: 9700000408
FIAC Pump Unit AB268 Oil Sight Glass
FIAC Pump Unit AB268 Oil Sight Glass Genuine Part FIAC, Oil Sight Glass for Pump Units AB268 - AB415. Ricambio per i seguenti prodotti: - Gruppo Pompante FIAC AB268 - 1129740083 - Gruppo Pompante  FIAC AB415 - 9700003004...
AVAILABLE €7.04
Details
FIAC AB360 Gasket Kit
FIAC spa SKU: 9700002932
FIAC AB360 Gasket Kit
FIAC Gasket Kit for Pump Unit AB360 Genuine replacement part FIAC, Gasket Kit for air Pump Unit AB360. Part for the following products: -  Pump Unit FIAC AB 360 - Engine Air Compressor FIAC S360-22 1121440659...
Last items in stock €21.53
Details
Fiac O-Ring 130 Viton
FIAC spa SKU: 9100270280
O_ring
Fiac O-Ring 130 Viton Genuine part FIAC, O-Ring 130 Viton (D22,22X2.62) COOLER for AIR COMPRESSORS PUMP UNITS FIAC - MICHELIN. Parts for the following article: - Fiac AB360 Spares -  Fiac AB415 - 9700003004 - ...
AVAILABLE €4.47
Details
FIAC AB360 Conrod-Piston Kit
FIAC spa SKU: 9700010170
FIAC AB360 Conrod-Piston Kit
FIAC AB360 Conrod & Piston Kit Genuine replacement part FIAC, Conrod & Piston Kit for air Pump Unit AB 360. Part for the following products: -  Engine Air Compressors S10-360 - AB360 - Honda -  Engine Air...
AVAILABLE €31.73
Details
FIAC AB268 Carter Cover
FIAC spa SKU: 9700001076
FIAC AB268 Carter Cover
FIAC AB268 Carter Cover Genuine replacement part FIAC, Bottom Carter Cover for Pump Units AB268 - AB248 - AB338. Part for the following products: -  Pumping Unit Fiac AB248 - AB338 -  Air Compressor Fiac Agri 25/40 - AB248...
Last items in stock €20.50
Details
FIAC AB360 Piston Pin
FIAC spa SKU: 9100270020
FIAC AB360 Piston Pin
FIAC Piston Pin for Pump Unit AB360 Genuine replacement part FIAC, Piston Pin for air Pump Unit AB360. Part for the following products: -  Pump Unit FIAC AB 360 - Engine Air Compressor FIAC S360-22...
AVAILABLE €4.47
Details
FIAC AB360 Piston Pin Seeger
FIAC spa SKU: 9100270070
FIAC AB360 Piston Pin Seeger
FIAC Piston Pin Seeger for Pump Unit AB360 Genuine replacement part FIAC, Piston Pin Seeger for air Pump Unit AB360. Part for the following products: -  Pump Unit FIAC AB 360 - Engine Air Compressor FIAC...
AVAILABLE €1.47
Details
Comments (0)
