FIAC spa

AEG Spare Parts for Compressor B 150/34

SKU: B 150/34 AEG - 1121430479
€118.92
VAT included

AEG Spare Parts for Compressor B 150/34

We have the original Spares AEG for Air Compressor B 150/34 AEG - 1121430479-201710 the Repair information, Exploded Diagram, parts list and tool repair that help you need to get your tools running like new again.

Fix Your Air Compressor B 150/34 AEG. All Spares are original and can be supplied at discounted prices. Our Spares are Genuine Parts Guaranteed
AEG Spare Parts for Compressor B 150/34
  • AEG Spare Parts for Compressor B 150/34
  • AEG Spare Parts for Compressor B 150/34
  • AEG Spare Parts for Compressor B 150/34
FIAC spa

AEG Spare Parts for Compressor B 150/34

SKU: B 150/34 AEG - 1121430479 Condition: New
€118.92
VAT included

AEG Spare Parts for Compressor B 150/34

We have the original Spares AEG for Air Compressor B 150/34 AEG - 1121430479-201710 the Repair information, Exploded Diagram, parts list and tool repair that help you need to get your tools running like new again.

Fix Your Air Compressor B 150/34 AEG. All Spares are original and can be supplied at discounted prices. Our Spares are Genuine Parts Guaranteed
settings 55 spare parts
description 2 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10/15 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10/15 BUSINESS DAYS
MORE INFO:: [email protected]
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
55 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Esploso pagina 1
Pos. Item Price Buy
1.1
 Pressure Regulator for ABAC Air Compressors 25/50 lt 1127100064 Pressure Regulator for ABAC Air Compressors 25/50 lt €25.39
1
 photo_cameraImage coming soon 4054720000 PRESS. SWITCH KIT €118.92
1.7
 Fiac Locking Nut 3/8" 7023050000 Fiac Locking Nut 3/8" €6.42
1.9
 photo_cameraImage coming soon 7081090000 Fitting 1/4 "MM €5.87
1.8
 FIAC Reduction 3/8"-1/4" 7088060000 FIAC Reduction 3/8"-1/4" €18.30
1.3
 Pressure Gauge Ø40-1/8" for Air Compressors Fiac Cosmos-ECU-FX 7110240000 Pressure Gauge Ø40-1/8" for Air Compressors Fiac Cosmos-ECU-FX €17.72
1.4
 Pressure Gauge Ø50-1/4" for Air Compressors Fiac Cosmos-ECU-FX 7110300000 Pressure Gauge Ø50-1/4" for Air Compressors Fiac Cosmos-ECU-FX €19.95
1.2
 photo_cameraImage coming soon 7130570000 Tap Universal M1/4" €11.96
1.5
 Pressure Switch 8 BAR CE for air Compressors FIAC 7250740000 Pressure Switch 8 BAR CE for air Compressors FIAC €27.75
1.6
 photo_cameraImage coming soon 7329070000 Power Cord €29.80
4
 photo_cameraImage coming soon 4151020000 MOTOR/PULLEY KIT €183.13
5
 photo_cameraImage coming soon 7370060000 V-Belt A 46 €13.48
7
 photo_cameraImage coming soon 1129102238 UNIT €231.66
8
 photo_cameraImage coming soon 7080160000 Fitting "L" 1/2 €11.84
9
 photo_cameraImage coming soon 7231690000 INFEED HOSE €27.49
10
 Check Valve MM 1/2 DX for Air Compressors 1127190009 Check Valve MM 1/2 DX for Air Compressors €29.61
11
 Black Rilsan Tube Ø 6X4 for Compressors Fiac 7230010000 Black Rilsan Tube Ø 6X4 for Compressors Fiac €7.28
12
 FIAC Safety Valve M3/8 10,4Bar 7192090000 FIAC Safety Valve M3/8 10,4Bar €26.58
13
 photo_cameraImage coming soon 5152700008 TANK €324.80
15
 Drain Tap 3/8" for Air COmpressors FIAC 7130160000 Drain Tap 3/8" for Air COmpressors FIAC €12.14
16
 photo_cameraImage coming soon 4083130000 KIT €17.49
17
 photo_cameraImage coming soon 4083400000 KIT €16.73
18
 photo_cameraImage coming soon 4170160000 BELT GUARD KIT €100.37
19
 photo_cameraImage coming soon 5011290008 BASE PLATE €98.21
Page 2 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Esploso pagina 2
Pos. Item Price Buy
1
 photo_cameraImage coming soon 9700001075 Case €79.81
2
 FIAC AB268 Carter Cover 9700001076 FIAC AB268 Carter Cover €20.50
5
 Crank Shaft for Pumping Units FIAC AB248-338-360 9100270140 Crank Shaft for Pumping Units FIAC AB248-338-360 €58.71 Not available for order
6
 Crank Shaft Ball Bearing 6203 for Pump Unit FIAC AB 360 7060180000 Crank Shaft Ball Bearing 6203 for Pump Unit FIAC AB 360 €11.77
7
 Crank Shaft Ball Bearing 6204 for Pump Unit FIAC AB 360 7060200000 Crank Shaft Ball Bearing 6204 for Pump Unit FIAC AB 360 €12.86
8
 Oil Seal for Pumping Units FIAC AB248-338-360 9100270150 Oil Seal for Pumping Units FIAC AB248-338-360 €4.30
9
 Front Cover for Pumping Units FIAC AB248-268-338-360 9100270160 Front Cover for Pumping Units FIAC AB248-268-338-360 €12.15
10
 Rear Cover for Pumping Units FIAC AB248-268-338-360 9100270170 Rear Cover for Pumping Units FIAC AB248-268-338-360 €12.15
12
 photo_cameraImage coming soon 7011420000 Screw M6X16 UNI-5739 €1.52
13
 FIAC AB268 Flywheel Key 9100280020 FIAC AB268 Flywheel Key €1.29
14
 Conrod for Pumping unit FIAC AB248 9100280030 Conrod for Pumping unit FIAC AB248 €29.72
15
 Piston Pin for Pumping Unit FIAC AB 248-338-GM 193 9100020080 Piston Pin for Pumping Unit FIAC AB 248-338-GM 193 €15.80
16
 Piston for Pumping unit FIAC AB 248-338-GM193 9100020120 Piston for Pumping unit FIAC AB 248-338-GM193 €25.65
17
 Piston Rings for Pumping Units FIAC AB 248-338 - AB 268 4080030000 Piston Rings for Pumping Units FIAC AB 248-338 - AB 268 €30.64
19
 photo_cameraImage coming soon 7575480000 Cylinder €111.92
20
 photo_cameraImage coming soon 7012220000 Screw M8X 25 UNI-8112 €1.52
21
 FIAC Pump Unit AB268 Oil Sight Glass 9700000408 FIAC Pump Unit AB268 Oil Sight Glass €7.04
28
 Head for Air Compressor Pump Unit FIAC AB 268 7570140000 Head for Air Compressor Pump Unit FIAC AB 268 €55.50
31A
 Air Filter Element for Pumping Units Fiac VX - VS - GM 7210010000 Air Filter Element for Pumping Units Fiac VX - VS - GM €4.37
31
 Set Intake Filter for Air Compressor Pump Unit AB 268 9700000843 Set Intake Filter for Air Compressor Pump Unit AB 268 €8.23
33
 photo_cameraImage coming soon 7010080000 Screw M8x35 UNI-5931 €1.52
33A
 photo_cameraImage coming soon 7030030000 Washer 8 UNI-6592 €1.42
34
 Air Conveyor for Pumping Units FIAC AB248-268-338-360 9100270220 Air Conveyor for Pumping Units FIAC AB248-268-338-360 €10.61
35
 photo_cameraImage coming soon 7012090000 Screw M5X12 UNI-8112 €1.52
36
 photo_cameraImage coming soon 7011460000 Screw M6X16 TAP-TITE €1.48
37
 Oil Vent Cap for Air Compressor Pump Unit FIAC AB 268 9700000300 Oil Vent Cap for Air Compressor Pump Unit FIAC AB 268 €6.11
38
 photo_cameraImage coming soon 7030270000 Washer 8 5X30X4 UNI-6593 €1.52
39
 Flywheel for Pumping unit Fiac AB 248-338-360 9100270230 Flywheel for Pumping unit Fiac AB 248-338-360 €64.36
100
 Valves Plate kit for Air Compressor Pump Unit FIAC AB 268 9700003272 Valves Plate kit for Air Compressor Pump Unit FIAC AB 268 €56.90
101
 Gaskets kit for Air Compressor Pump Unit FIAC AB 268 9700003271 Gaskets kit for Air Compressor Pump Unit FIAC AB 268 €21.06
102
 Kit Piston for Pumping unit FIAC AB 248-338 4291030000 Kit Piston for Pumping unit FIAC AB 248-338 €70.16

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

AEG Spare Parts for Compressor B 150/34

We have the original Spares AEG for Air Compressor B 150/34 AEG - 1121430479-201710 the Repair information, Exploded Diagram, parts list and tool repair that help you need to get your tools running like new again.

Fix Your Air Compressor B 150/34 AEG. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.

In the following table, look for the model of the Air Compressor and the respective parts of the code.
B 150/34 AEG - 1121430479

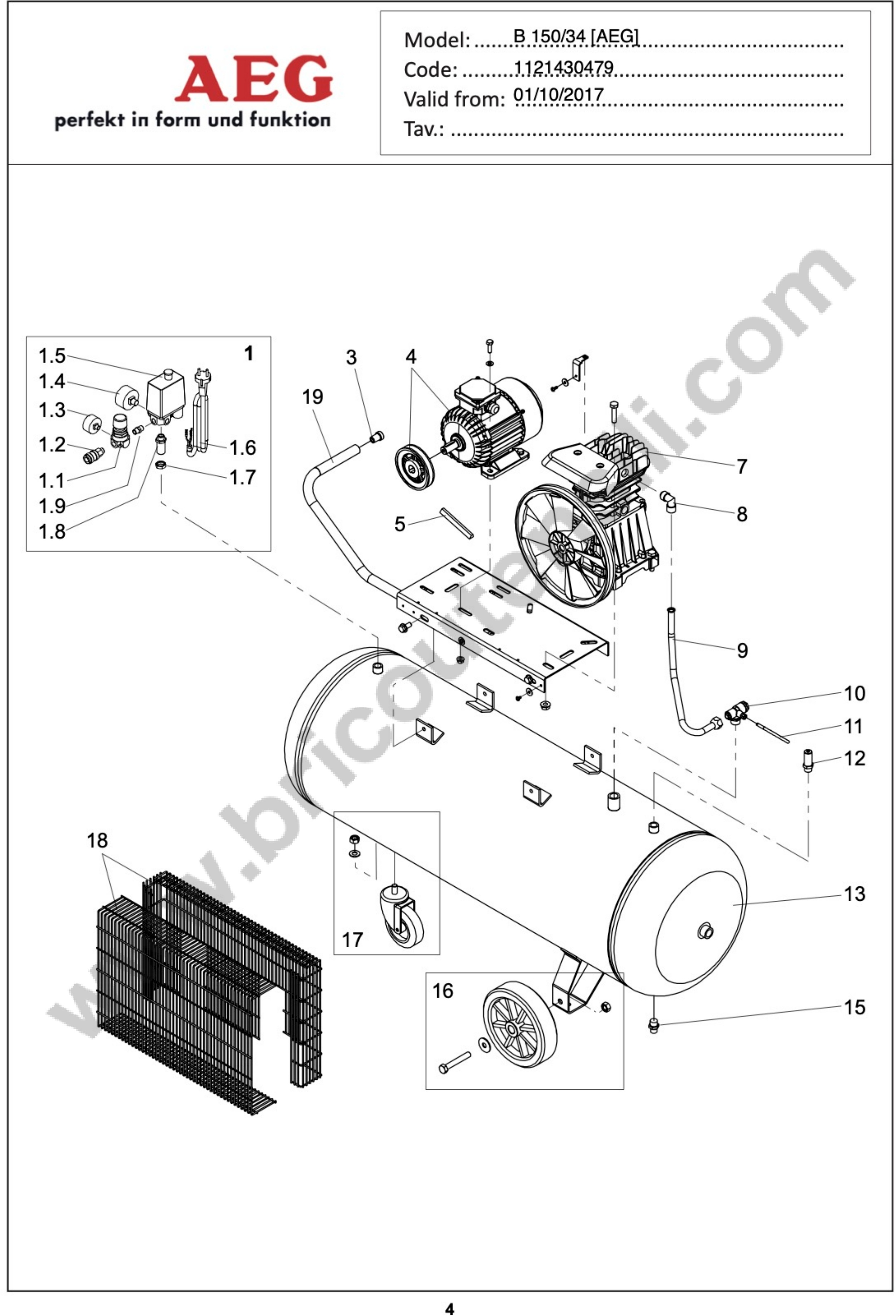

B 150/34 AEG - 1121430479-201710 Valid from: 01/10/2017 pag.1
# Part Num. Description
1 4054720000 PRESS. SWITCH KIT
1.1 1127100064 PRESSURE REDUCER
1.2 7130570000 TAP
1.3 7110240000 PRESSURE GAUGE
1.4 7110300000 PRESSURE GAUGE
1.5 7250740000 PRESSURE SWITCH
1.6 7329070000 POWER CABLE
1.7 7023050000 LOCK NUT
1.8 7088060000 FITTING
1.9 7081090000 FITTING
3 7360070000 RUBBER FOOT
4 4151020000 MOTOR/PULLEY KIT
5 7370060000 BELT
7 1129102238 UNIT
8 7080160000 FITTING
9 7231690000 INFEED HOSE
10 1127190009 CHECK VALVE
11 7230010000 RILSAN TUBE
12 7192090000 RELIEF VALVE
13 5152700008 TANK
15 7130160000 DISCHARGE TAP
16 4083130000 KIT
17 4083400000 KIT
18 4170160000 BELT GUARD KIT
19 5011290008 BASE PLATE

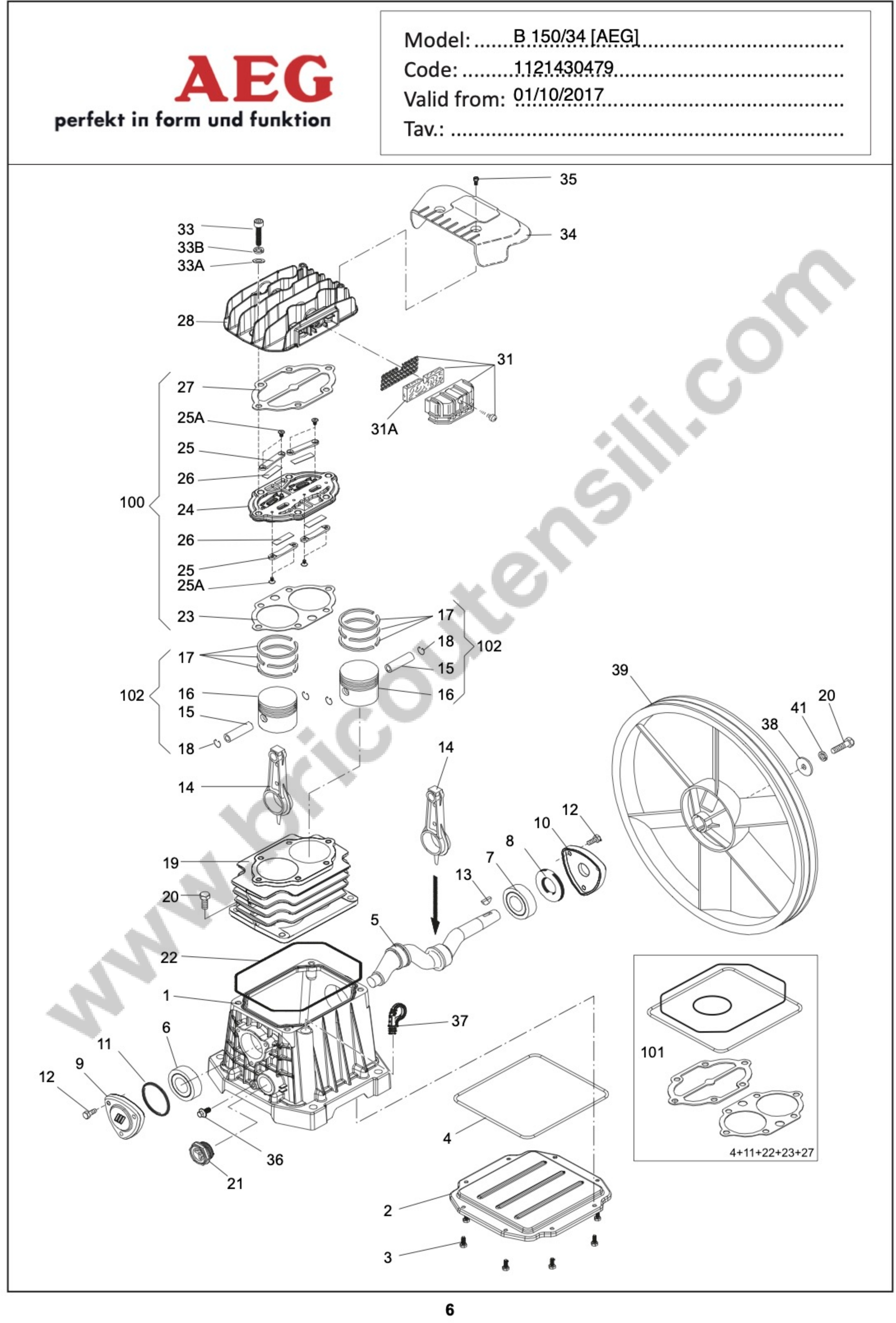

B 150/34 AEG - 1121430479-201710 Valid from: 01/10/2017 pag.2
1 9700001075 CRANKCASE
2 9700001076 CASING COVER
3 1129700531 SCREW
4. X O RING
5 9100270140 CRANKSHAFT
6 7060180000 BEARING
7 7060200000 BEARING
8 9100270150 OIL SEAL
9 9100270160 COVER
10 9100270170 COVER
11. X O RING
12 7011420000 SCREW
13 9100280020 FEATHER
14 9100280030 CONNECTING ROD
15 9100020080 GUDGEON PIN
16 9100020120 PISTON
17 4080030000 PISTON RING KIT
18. X RING
19 7575480000 CYLINDER
20 7012220000 SCREW
21 9700000408 OIL SIGHT GLASS
22. X O RING
23. X GASKET
24. X VALVE HOLDER PLATE
25. X VALVE
25A. X SCREW
26. X VALVE
27. X GASKET
28 7570140000 HEAD
31 9700000843 INTAKE FILTER KIT
31A 7210010000 FILTER CARTRIDGE
33 7010080000 SCREW
33A 7030030000 WASHER
33B 1129704077 WASHER
34 9100270220 AIR CONVEYOR
35 7012090000 SCREW
36 7011460000 SCREW
37 9700000300 KIT OIL VENT CAP
38 7030270000 WASHER
39 9100270230 FLYWHEEL
41 1129704077 WASHER
100 9700003272 VALVE PLATE KIT
101 9700003271 KIT
102 4291030000 PISTON KIT
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s AEG websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to AEG brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
