AEG Spare Parts for Air Compressor OL50/15

SKU: OL50/15
€4.03
VAT included

AEG Spare Parts for Air Compressor OL50/15

We have the original Spares AEG for Air Compressor OL50/15 the diagram, parts list and tool repair that help you need to get your tools running like new again.

Fix Your Air Compressor OL50/15. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.
AEG Spare Parts for Air Compressor OL50/15
  • AEG Spare Parts for Air Compressor OL50/15

AEG Spare Parts for Air Compressor OL50/15

SKU: OL50/15 Condition: New
€4.03
VAT included

AEG Spare Parts for Air Compressor OL50/15

We have the original Spares AEG for Air Compressor OL50/15 the diagram, parts list and tool repair that help you need to get your tools running like new again.

Fix Your Air Compressor OL50/15. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.
settings 11 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10/15 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10/15 BUSINESS DAYS
MORE INFO:: [email protected]
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

11 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Pos. Item Price Buy
4
photo_cameraImage coming soon 9996610004 Pression regulator Panel €3.31
8
photo_cameraImage coming soon 9996660009 Upper cover €18.79
11
photo_cameraImage coming soon 9996610011 Double-end connect €18.18
14
photo_cameraImage coming soon 9996610014 Power line of AEG24 €13.87
15
photo_cameraImage coming soon 9996610020 Lower cover €18.79
21
photo_cameraImage coming soon 9996590015 Drain Valve €3.31
33
photo_cameraImage coming soon 9996610027 Inlet hose €5.39
35
photo_cameraImage coming soon 9996610029 Exhaust aluminum tube €5.39
100
photo_cameraImage coming soon 9996610100 Screws kit €19.57
200/25
photo_cameraImage coming soon 9996590013 Wheel €4.83
500
photo_cameraImage coming soon 9996660500 Head Block Kit €2.76

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

AEG Spare Parts for Air Compressor OL50/15

We have the original Spares AEG for Air Compressor OL50/15 the diagram, parts list and tool repair that help you need to get your tools running like new again.

Fix Your Air Compressor OL50/15. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.

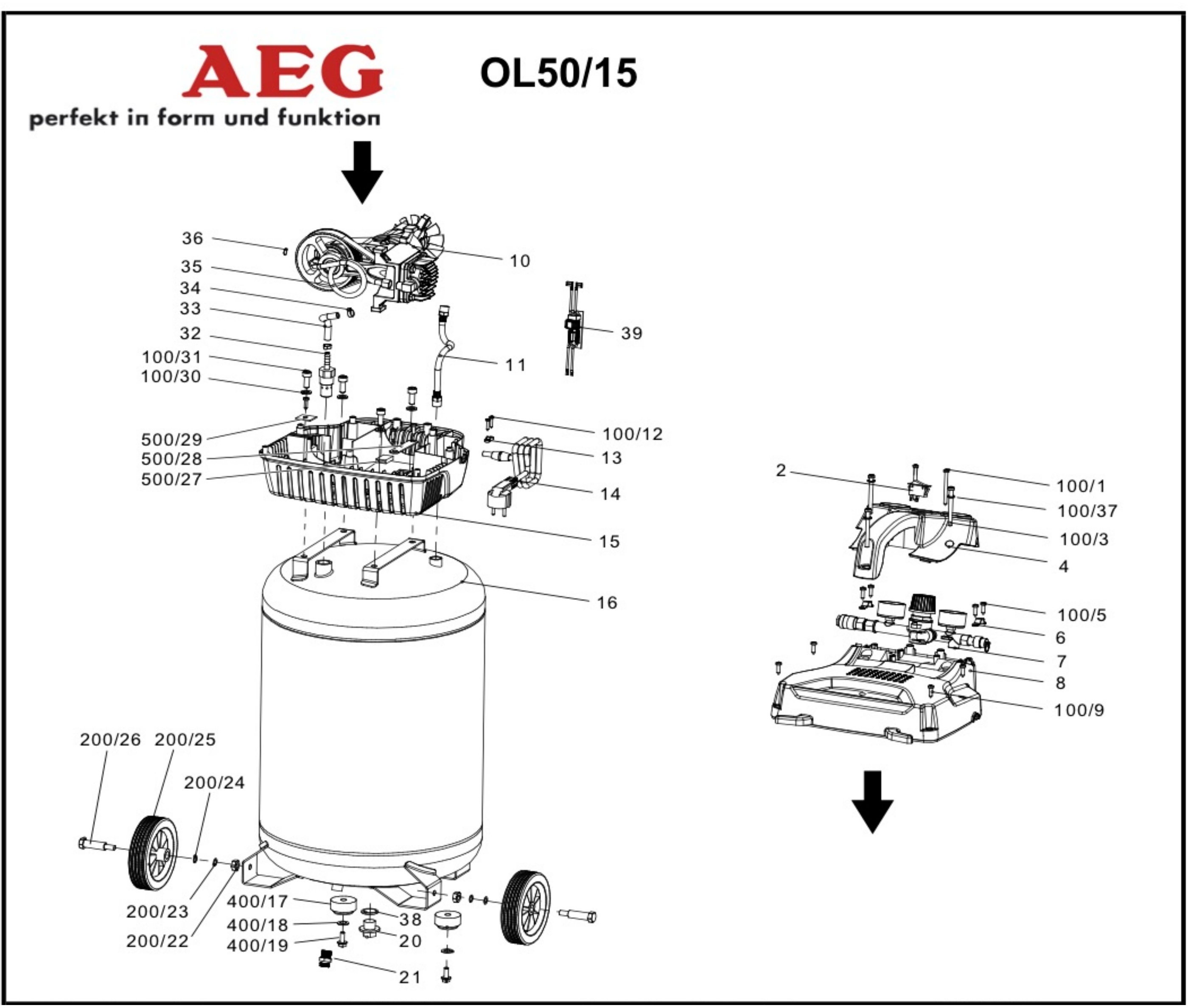

In the following table, look for the model of the Air Compressor and the respective parts of the code.
Air Compressor AEG OL50/15

Air Compressor AEG OL50/15
# Part Num. Description
2 9996660002 On/Off switch
4 9996610004 Pression regulator paneL
6 9996610006 Pression regulator plate
7 9996610007 Pressure regulator valve assy
8 9996660009 Upper cover
10 9996620010 AEG50L 8145 pump
11 9996610011 Double-end connect
13 9996660015 Tension disc
14 9996610014 Power line of AEG24C
15 9996610020 Lower cover
16 9996620016 Tank 50 lt
20 9996590008 Tank Plug
21 9996590015 Drain Valve
32 9996610026 Check valve assy
33 9996610027 Inlet hose
34 9994490002 Clamp(φ14)
35 9996610029 Exhaust aluminum tube
36 9996660030 O-ring
38 9996590009 Seal Ring
39 9996620039 PCB plate
100 9996610100 Screws kit
100/1 x Screw ST4.8*90-F
100/3 x Hex bolt
100/5 x Screw ST4.2×14-F
100/9 x Screw
100/12 x Screw ST4.2×14-F
100/30 9996590012 Flat washer
100/31 x Hex bolt M8×20
100/37 x Spring washer(φ6)
200 9996620200 Wheels kit
200/22 9996590011 Nut M8
200/23 9996591024 Sring Washer
200/24 9996590012 Flat washer
200/25 9996590013 Wheel
200/26 9996590014 Axle for wheel
400 9996620400 Feet kit
400/17 x Rubber feet
400/18 x Big flat washer
400/19 x Screw M6*25
500 9996660500 Head block kit
500/27 x Spacer bush of head
500/28 x head press plate 2
500/29 head press plate 1
