ABAC A39 100 CM3 Spare Parts

SKU: ABAC A39 100 CM3 4116024566
€368.18
VAT included

ABAC A39 100 CM3 Spare Parts

Rely on our experience and our professionalism, take care of your ABAC A39 100 CM3 - 4116024566 Air Compressor by choosing only original spare parts. Buy in total safety and pay without worries all spare parts needed for maintenance are Guaranteed Original.
ABAC A39 100 CM3 Spare Parts
  • ABAC A39 100 CM3 Spare Parts
  • ABAC A39 100 CM3 Spare Parts Diagram
  • ABAC A39 100 CM3 Spare Parts Diagram - 1
ABAC

ABAC A39 100 CM3 Spare Parts

SKU: ABAC A39 100 CM3 4116024566 Condition: New
€368.18
VAT included

ABAC A39 100 CM3 Spare Parts

Rely on our experience and our professionalism, take care of your ABAC A39 100 CM3 - 4116024566 Air Compressor by choosing only original spare parts. Buy in total safety and pay without worries all spare parts needed for maintenance are Guaranteed Original.
settings 50 spare parts
description 2 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Shipped on: 10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
50 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

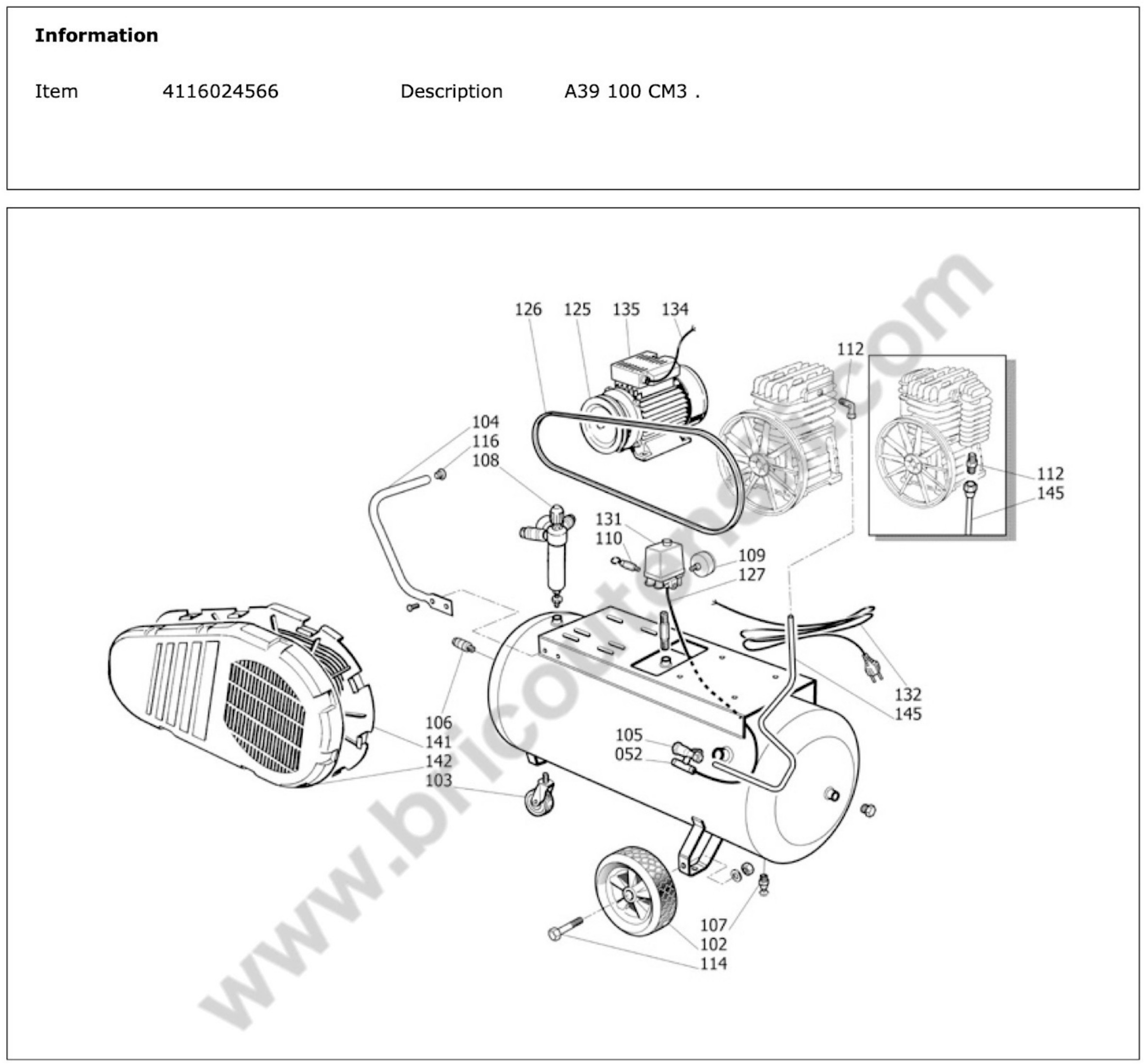

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
099
 photo_cameraImage coming soon 4116090297 Pump PAT 38 SPAR GRAY €357.46
099
 photo_cameraImage coming soon 4116090649 Pump A39 SPARE PART BLUE €357.46
100
 photo_cameraImage coming soon 1127090003 Plug -receiver €1.18
102
 photo_cameraImage coming soon 6214347500 Fix Wheel 175 Ø 15 €8.17
103
 Pivot Wheel for Air Compressor ABAC A29B 100 CM2 6214344400 Pivot Wheel for Air Compressor ABAC A29B 100 CM2 €13.27
104
 photo_cameraImage coming soon 6214343300 Handle €14.32
105
 ABAC Non-Return Valve 3/4" Male 14 mm Tube for Air Compressors 2HP 2236110536 ABAC Non-Return Valve 3/4" Male 14 mm Tube for Air Compressors 2HP €40.07
105
 Non Return Valve 3/4" M 1/2" M for Air Compressors ABAC - BALMA 2236110537 Non Return Valve 3/4" M 1/2" M for Air Compressors ABAC - BALMA €21.75
106
 photo_cameraImage coming soon 2236112708 Line valve 1/2” M quick coupling €9.99
106
 Quick Coupling 1/4" M for Air Compressors ABAC - BALMA 6231944100 Quick Coupling 1/4" M for Air Compressors ABAC - BALMA €6.89
107
 photo_cameraImage coming soon 2236111480 Drain tap €11.80
107
 Drain Valve 3/8" for Air Compressors ABAC - BALMA 6210717700 Drain Valve 3/8" for Air Compressors ABAC - BALMA €3.93
108
 Pressure Reducer Mignon 3/8" for Air Compressors ABAC - BALMA 6214344200 Pressure Reducer Mignon 3/8" for Air Compressors ABAC - BALMA €44.42
109
 Gauge 50MM for Air Compressors ABAC - BALMA 6214345000 Gauge 50MM for Air Compressors ABAC - BALMA €10.14
110
 ABAC Safety Valve 3/8" 11 Bar for Pump Unit A29B 6210719900 ABAC Safety Valve 3/8" 11 Bar for Pump Unit A29B €7.87
112
 photo_cameraImage coming soon 2236105562 Delivery pipe fitting €5.14
114
 ABAC Wheel Pin D.15MM 6214348000 ABAC Wheel Pin D.15MM €2.52
116
 photo_cameraImage coming soon 6214344600 Plastic plug €0.52
118
 photo_cameraImage coming soon 2236105466 Fitting €4.41
118
 photo_cameraImage coming soon 8973036197 Fitting €4.10
126
 V-Belt A59 for Air Compressors ABAC - BALMA 6214632100 V-Belt A59 for Air Compressors ABAC - BALMA €10.07
127
 Rilsan Tube PA6 PE3030UK 6X4 Black 2236112998 Rilsan Tube PA6 PE3030UK 6X4 Black €6.89
127
 photo_cameraImage coming soon 6245578000 Rilsan tube €15.98
131
 Pressure Switch 3/8 + MDR1 for Compressor A29B 50 CM3 2236106647 Pressure Switch 3/8 + MDR1 for Compressor A29B 50 CM3 €35.33
131
 photo_cameraImage coming soon 2236110612 Pressure switch €41.02
132
 photo_cameraImage coming soon 6256395400 Cable €71.89
135
 FIAC Motor MEC90 A24 3HP 50HZ 230V 1127380796 FIAC Motor MEC90 A24 3HP 50HZ 230V €353.74
135
 photo_cameraImage coming soon 2236113596 SINGLE PHASE €663.90
135
 photo_cameraImage coming soon 6226121700 Motor €35.51
136
 photo_cameraImage coming soon 8973036606 Motor Overload €14.80
141
 photo_cameraImage coming soon 2236111659 Plastic Back Belt Guard PAT 38 / A39 €47.26
142
 Front Belt Guard for Air Compressor ABAC A29 50 CM2 2236111656 Front Belt Guard for Air Compressor ABAC A29 50 CM2 €29.22
145
 ABAC A39 100 CM3 Delivery Pipe 2236112414 ABAC A39 100 CM3 Delivery Pipe €26.31
146
 photo_cameraImage coming soon 0606000032 Nipple 3/8 F-1/2M ELKTR €15.47
147
 photo_cameraImage coming soon 0606000032 Nipple 3/8 F-1/2M ELKTR €15.47
148
 photo_cameraImage coming soon 0606000032 Nipple 3/8 F-1/2M ELKTR €15.47
Page 2 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

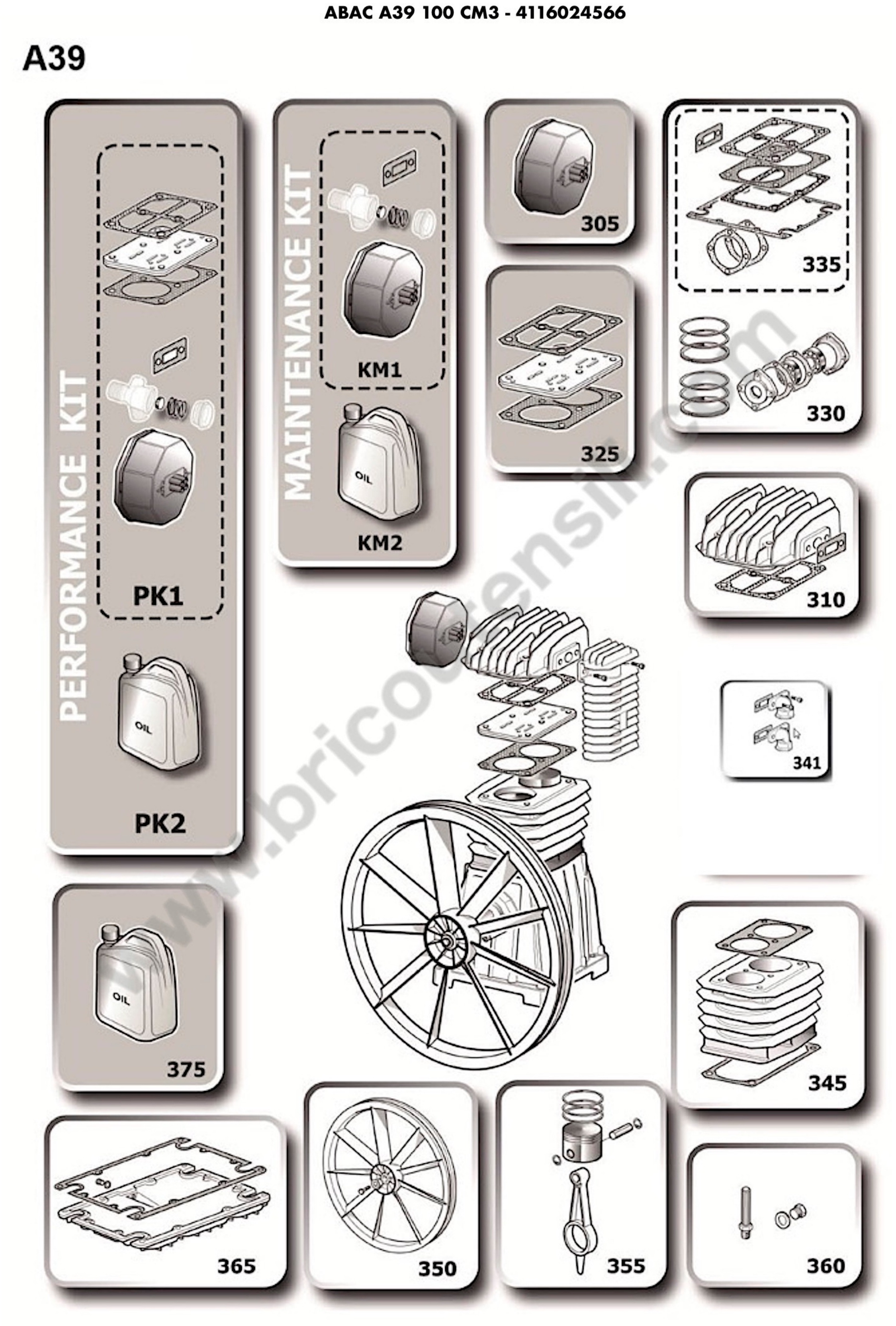

Esploso pagina 2
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
PK1
 Performance Kit for Pump Units ABAC PAT24-PAT38 8973037657 Performance Kit for Pump Units ABAC PAT24-PAT38 €56.71
KM1
 ABAC Maintenance Kit for Pump Unit A29B - A39B 8973037864 ABAC Maintenance Kit for Pump Unit A29B - A39B €18.91
305
 ABAC Air Filter for Pump Unit A29B - A39B 2236112735 ABAC Air Filter for Pump Unit A29B - A39B €15.15
305
 Air Filter Kit for Pump Units ABAC PAT24-PAT38 2236112835 Air Filter Kit for Pump Units ABAC PAT24-PAT38 €15.18
310
 Cylinder Head Kit for Pump Unit ABAC A29B 2901325044 Cylinder Head Kit for Pump Unit ABAC A29B €35.92
325
 Valve Plate Kit for Pump Unit ABAC A29B 2236112518 Valve Plate Kit for Pump Unit ABAC A29B €34.95
330
 ABAC Upgrade Kit for Pump Unit A29B - A39B 2901325046 ABAC Upgrade Kit for Pump Unit A29B - A39B €48.30
335
 ABAC Gasket Kit for Pump Unit A29 2901325045 ABAC Gasket Kit for Pump Unit A29 €17.28
340
 ABAC PAT24-PAT38 Aftercooler Kit 2901325047 ABAC PAT24-PAT38 Aftercooler Kit €35.94
341
 photo_cameraImage coming soon 2236112795 Female connection kit €63.65
345
 photo_cameraImage coming soon 2236112435 CYLINDER KIT PAT38 €71.94
350
 ABAC Flywheel Kit for Pump Unit A29B - PAT38 2901325050 ABAC Flywheel Kit for Pump Unit A29B - PAT38 €92.11
355
 ABAC Conrod Piston Kit Ass'y for Pump Unit PAT38 - A39 2236111620 ABAC Conrod Piston Kit Ass'y for Pump Unit PAT38 - A39 €56.47
360
 photo_cameraImage coming soon 2901325049 OIL LEVEL KIT €3.29
365
 ABAC Pump Unit PAT38 - NS19 Kit Crank Cover 2236112438 ABAC Pump Unit PAT38 - NS19 Kit Crank Cover €27.05
375
 photo_cameraImage coming soon 1630020700 ALTAIR PRO 1L €12.76

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

ABAC A39 100 CM3 Spare Parts

Rely on our experience and our professionalism, take care of your ABAC A39 100 CM3 - 4116024566 Air Compressor by choosing only original spare parts. Buy in total safety and pay without worries all spare parts needed for maintenance are Guaranteed Original.

In the following table, look for the spare parts of the ABAC Air Compressor and the corresponding code.
ABAC A39 100 CM3 - 4116024566

ABAC A39 100 CM3 - 4116024566 Parts List Pag.1
# Part Num. Description
099 4116090649 Pump A39 SPARE PART BLUE
099 4116090297 Pump PAT 38 SPAR GRAY
100 1127090003 Plug -receiver 1/2 GAS FG 292
102 6214347500 Wheel 175 X 39 HOLE 15
103 6214344400 Pivot wheel - front pin
104 6214343300 Handle
105 2236110537 Non return valve 3/4M-1/2M-1/8
105 2236110536 Non return valve 3/4M-BIC.14 VITON
106 6231944100 Tap
106 2236112708 Tap UNIVERSAL QUICK COUPL.1/2+M
107 2236111480 Drain tap 3/8+M
107 6210717700 Drain tap 3/8+M
108 6214344200 Pressure reducer MIGNON 3/8
109 6214345000 Gauge 50 REAR 1/4 0/20
110 6210719900 Safety valve 3/8 TA-W 11B
112 2236105562 Fitting 1/2+ 1/2+ B2/3000
112 2236100817 Fitting NIPPLO 1/2 M-BIC.14 (79RT1201)
114 6214348000 Wheel pin
116 6214344600 Plug 17/20 RA20
118 2236105466 EXTENTION 3/8+
118 8973036197 SPACING MM 3/8 85
125 2236110190 Pulley
126 6214632100 Belt A59
127 2236112998 TUBE PNEUMATIC 6X4 PA6 BLACK
127 6245578000 Rilsan tube
131 2236106647 PRESSURE SWITCH 3/8+ MDR1
131 2236110612 Pressure switch
132 6256395400 Cable 3X2,5X2000
135 1127380796 Motor MEC90 A24 3HP 50HZ 230V
135 2236113596 Motor MEC90 3HP 50HZ 230V
135 6226121700 Motor
136 8973036606 TERMICA RESET 16A UN/VEM
141 2236111659 Belt guard PLASTIC REAR PAT38
142 2236111656 Belt guard PLASTIC FRONT PAT38
145 2236112414 Delivery pipe PAT38/100
145 2236111148 Delivery pipe
146 0606000032 Nipple 3/8 F-1/2M ELKTR
147 0606000032 STRAIGHT ADAPT. R.GIREVOLE 3/8
148 0606000032 Fitting 3/8 ELKTR
ABAC A39 100 CM3 - 4116024566 Kit List Pag.2
# Part Num. Description
305 2236112835 Air filter PAT24/38
305 2236112735 Air filter PAT24/38
310 2901325044 Cylinder head kit PAT24/PAT38
325 2236112518 Valve plate kit PAT24/PAT38
330 2901325046 Upgrade kit PAT24/PAT38
335 2901325045 Joints kit
340 2901325047 Aftercooler kit PAT24/PAT38
341 2236112795 Female connection kit
345 2236112435 Cylinder kit PAT38
350 2901325050 Flywheel kit PAT38
355 2236111620 Conrod-piston kit LP PAT38
360 2901325049 Oil level kit PAT38
365 2236112438 Crankcase cover kit PAT38
375 1630020700 Oil can Altair Pro - Piston Compressor Oil - 1 liter
KM1 8973037864 KIT PERFORMANCE LIGHT PAT24/38
KM2 ORDER OIL SEPARATELY
PK1 8973037657 KIT PERFORMANCE PAT24/PAT38
PK2 ORDER OIL SEPARATELY
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s ABAC websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to ABAC brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
