ABAC NS 39/500 CT 5 5 V400 NT I Parts

SKU: NS39/500 CT5 5 V400 4116019393
€29.90
VAT included

ABAC NS 39/500 CT 5 5 V400 NT I Spare Parts

Rely on our experience and our professionalism, take care of your ABAC NS 39/500 CT 5 5 V400 NT I - 4116019393 Air Compressor by choosing only original spare parts. Buy in total safety and pay without worries all spare parts needed for maintenance are Guaranteed Original.

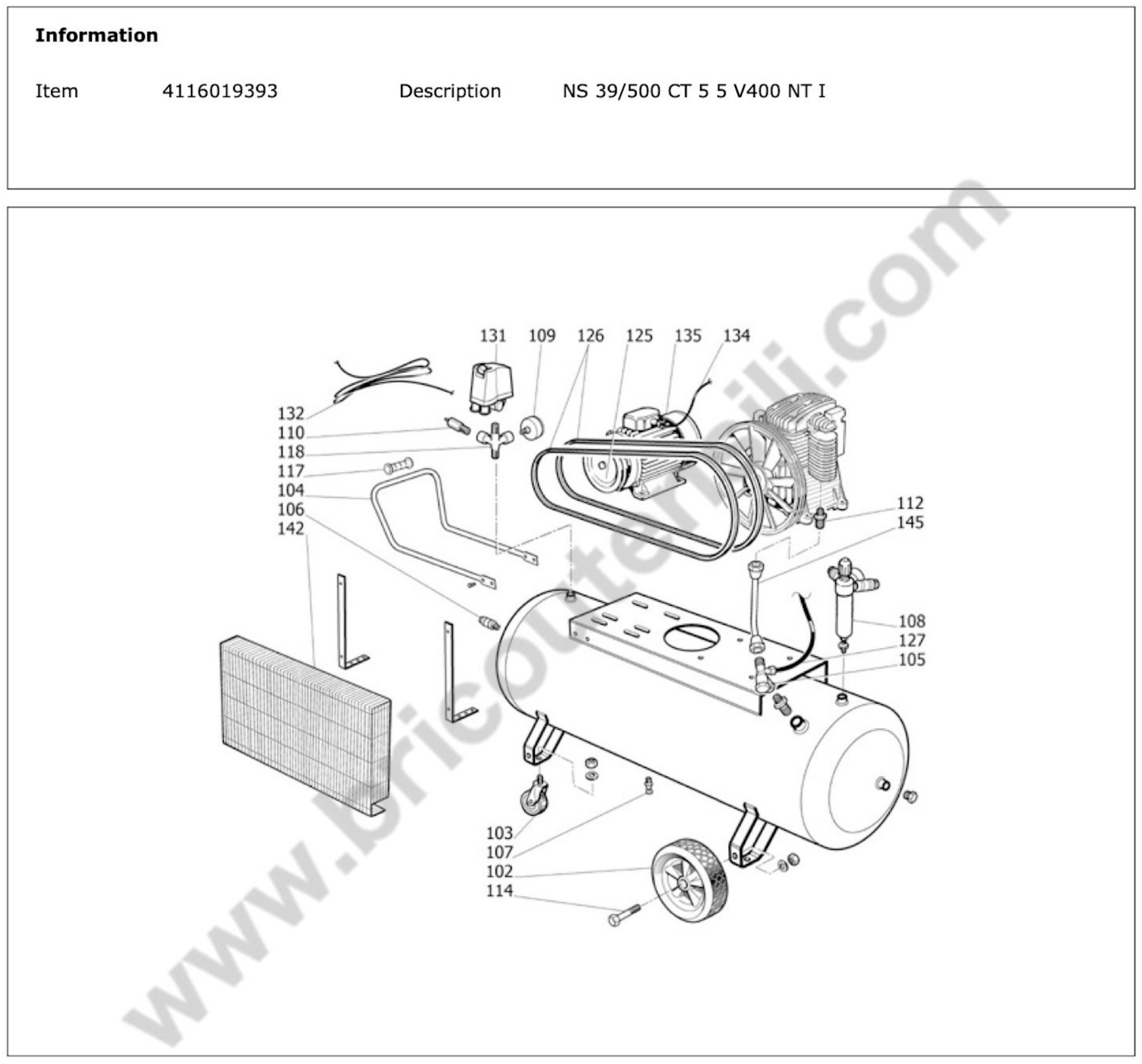

ABAC NS 39/500 CT 5 5 V400 NT I Parts Diagram
  • ABAC NS 39/500 CT 5 5 V400 NT I Parts Diagram
  • ABAC NS 39/500 CT 5 5 V400 NT I Parts Diagram

ABAC NS 39/500 CT 5 5 V400 NT I Parts

SKU: NS39/500 CT5 5 V400 4116019393 Condition: New
€29.90
VAT included

ABAC NS 39/500 CT 5 5 V400 NT I Spare Parts

Rely on our experience and our professionalism, take care of your ABAC NS 39/500 CT 5 5 V400 NT I - 4116019393 Air Compressor by choosing only original spare parts. Buy in total safety and pay without worries all spare parts needed for maintenance are Guaranteed Original.
settings 46 spare parts
description 2 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

41 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Pos. Item Price Buy
106
photo_cameraImage coming soon 2236112708 Line valve 1/2” M quick coupling €10.63
106
photo_cameraImage coming soon 6210720300 Line ball valve 3/4” M - 3/4” F €29.90
107
Drain Valve 3/8" for Air Compressors ABAC - BALMA 6210717700 Drain Valve 3/8" for Air Compressors ABAC - BALMA €4.32
108
photo_cameraImage coming soon 2236105521 Pressure reducer €76.75
108
Pressure Reducer 1/2" for Air Compressors ABAC - BALMA 6214345100 Pressure Reducer 1/2" for Air Compressors ABAC - BALMA €68.12
109
Gauge 50MM for Air Compressors ABAC - BALMA 6214345000 Gauge 50MM for Air Compressors ABAC - BALMA €12.35
110
ABAC Safety Valve 3/8" 11 Bar for Pump Unit A29B 6210719900 ABAC Safety Valve 3/8" 11 Bar for Pump Unit A29B €12.35
110
photo_cameraImage coming soon 6211113568 Safety valve 1/4" Coll.13 SB 9049011 €8.50
112
photo_cameraImage coming soon 6231943400 Fitting €12.79
114
ABAC-BALMA Wheel Pin D.20MM 6214348500 ABAC-BALMA Wheel Pin D.20MM €5.30
117
photo_cameraImage coming soon 2236105157 Knob €9.06
118
photo_cameraImage coming soon 8973036197 Fitting €4.10
125
photo_cameraImage coming soon 2236110188 Pulley €61.76
125
BALMA Pulley Kit D132-2A-28 2901320263 BALMA Pulley Kit D132-2A-28 €53.34
125
photo_cameraImage coming soon 2901320278 Pulley Kit D160-2A-28 BUSH 2012 €89.48
126
photo_cameraImage coming soon 2236100520 Belt €14.16
126
photo_cameraImage coming soon 6214633100 Belt €10.49
127
Rilsan Tube PA6 PE3030UK 6X4 Black 2236112998 Rilsan Tube PA6 PE3030UK 6X4 Black €4.48
131
photo_cameraImage coming soon 2236101208 Pressure switch €108.58
131
Pressure Switch 3/8 + MDR1 for Compressor A29B 50 CM3 2236106647 Pressure Switch 3/8 + MDR1 for Compressor A29B 50 CM3 €43.51
131
photo_cameraImage coming soon 6256397400 Pressure switch €108.58
132
photo_cameraImage coming soon 6256395600 Cable €69.59
134
photo_cameraImage coming soon 2236112745 Motor - pressure switch cable €24.21
135
photo_cameraImage coming soon 6226131900 Motor €1,014.97
135
photo_cameraImage coming soon 6226132100 THREE-PHASE - Hz 50/60 €977.70
142
photo_cameraImage coming soon 6214342700 Belt guard €384.67
145
photo_cameraImage coming soon 2236111049 DELIVERY PIPE NS39/500 BS ALUM €34.94
164
photo_cameraImage coming soon 2236112766 Bush pulley €31.18
Page 2 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Pos. Item Price Buy
MK2
photo_cameraImage coming soon 1630020700 ALTAIR PRO 1L €16.34
PK2
photo_cameraImage coming soon 6215716300 Oil bottle €19.44
PK1
Performance Kit for Pump Unit ABAC NS39 8973037638 Performance Kit for Pump Unit ABAC NS39 €184.91
MK1
SERVICE KIT LIGHT 8973037875 SERVICE KIT LIGHT €38.70
310
BALMA Pump Unit NS39 Head Kit 2901324971 BALMA Pump Unit NS39 Head Kit €71.26
320
photo_cameraImage coming soon 2901324972 kit 2 ways cooler NS39 €319.16
325
photo_cameraImage coming soon 2236113051 Valve plate kit €84.70
330
Upgrade Kit for Pump Unit NS39 6229018500 Upgrade Kit for Pump Unit NS39 €193.82
335
Set Gaskets for Pump Unit NS39 2901323578 Set Gaskets for Pump Unit NS39 €68.81
340
photo_cameraImage coming soon 2901324973 kit 3 ways cooler NS39 €345.51
350
Flywheel Kit for Pump Unit NS39 6229018800 Flywheel Kit for Pump Unit NS39 €177.18
360
photo_cameraImage coming soon 2901324954 Oil level kit €36.60
370
ABAC Pressure Relief Safety Valve 1/4" 15 BAR for Pump Unit NS39 6210716500 ABAC Pressure Relief Safety Valve 1/4" 15 BAR for Pump Unit NS39 €8.60

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

ABAC NS 39/500 CT 5 5 V400 NT I Spare Parts

Rely on our experience and our professionalism, take care of your ABAC NS 39/500 CT 5 5 V400 NT I - 4116019393 Air Compressor by choosing only original spare parts. Buy in total safety and pay without worries all spare parts needed for maintenance are Guaranteed Original.

In the following table, look for the spare parts of the ABAC Air Compressor and the corresponding code.
ABAC NS 39/500 CT 5 5 V400 NT I
ABAC NS 39/500 CT 5 5 V400 NT I - 4116019393 SPARE PARTS
# Part Num. Description End
106 6210720300 TAP 3/4+ MF 02/01/05
106 2236112708 UNIV COUPLING 1/2+ M 05/11/13
107 6210717700 Drain tap DRAIN TAP 3/8+
108 6214345100 PU4 PRESSURE REDUCER
108 2236105521 Pressure reducer 02/01/05
109 6214345000 PRESSURE GAUGE 50REAR 1/4 0/20
110 6210719900 SAFETY VALVE 3/8 TA-W 11B
110 6211113568 SAFETY VALVE 1/4+C 13,5B 30/09/97
112 6231943400 CONN. 1+ 3/4+ C. B 5900
114 6214348500 WHEEL PIN D20X59 HEX.
117 2236105157 GRIP HANDLER D20
118 8973036197 SPACING MM 3/8 85
125 2236101088 PULLEY D132/2-SPA BUSH 2012
125 2901320263 PULLEY D132-2A+BUSH-28 KIT 10/05/09
125 2236110188 PULLEY D.130 2A HOLE 28 11/11/12
125 2901320278 PULLEY D160-2A+BUSH-28 KIT 13/11/12
125 2236110188 PULLEY D.130 2A HOLE 28 22/09/14
126 6214633100 Belt A 66
126 2236100520 Belt A71 13X10 1800LI 13/11/12
127 2236112998 TUBE PNEUMATIC 6X4 PA6 BLACK 18/12/15
131 2236101208 PRESS.4V 3/8 6 3/10A THR.2 11B
131 2236112291 Pressure switch 29/03/22
131 2236101202 PRESS.4V 1/2 MDR3/11-R3/10 11B 03/05/13
131 2236109926 PRESS.4V 3/8 12B SOST.9063148 14/01/07
131 2236106647 PRESSURE SWITCH 3/8+ MDR1 17/04/11
131 6256397400 PRESS.SWITCH4V3/8+12B-6,3/10A 17/04/11
132 6256395600 CABLE 4 X 1,5 X 2000
134 2236112745 Motor - pressure switch cable 4X2.5X1150
135 6226131900 MOT.HP 5,5 T V400/700 MEC 112
135 6226132100 MOTOR MEC112 5.5HP 230/400V 13/03/05
142 6214342700 BELTGUARD NS39/59S/-B59/6/7000
142 2236109595 Belt guard
145 2236111049 DELIVERY PIPE NS39/500 BS ALUM
164 2236112766 BUSH TAPER PULLEY 2012 HOLE28

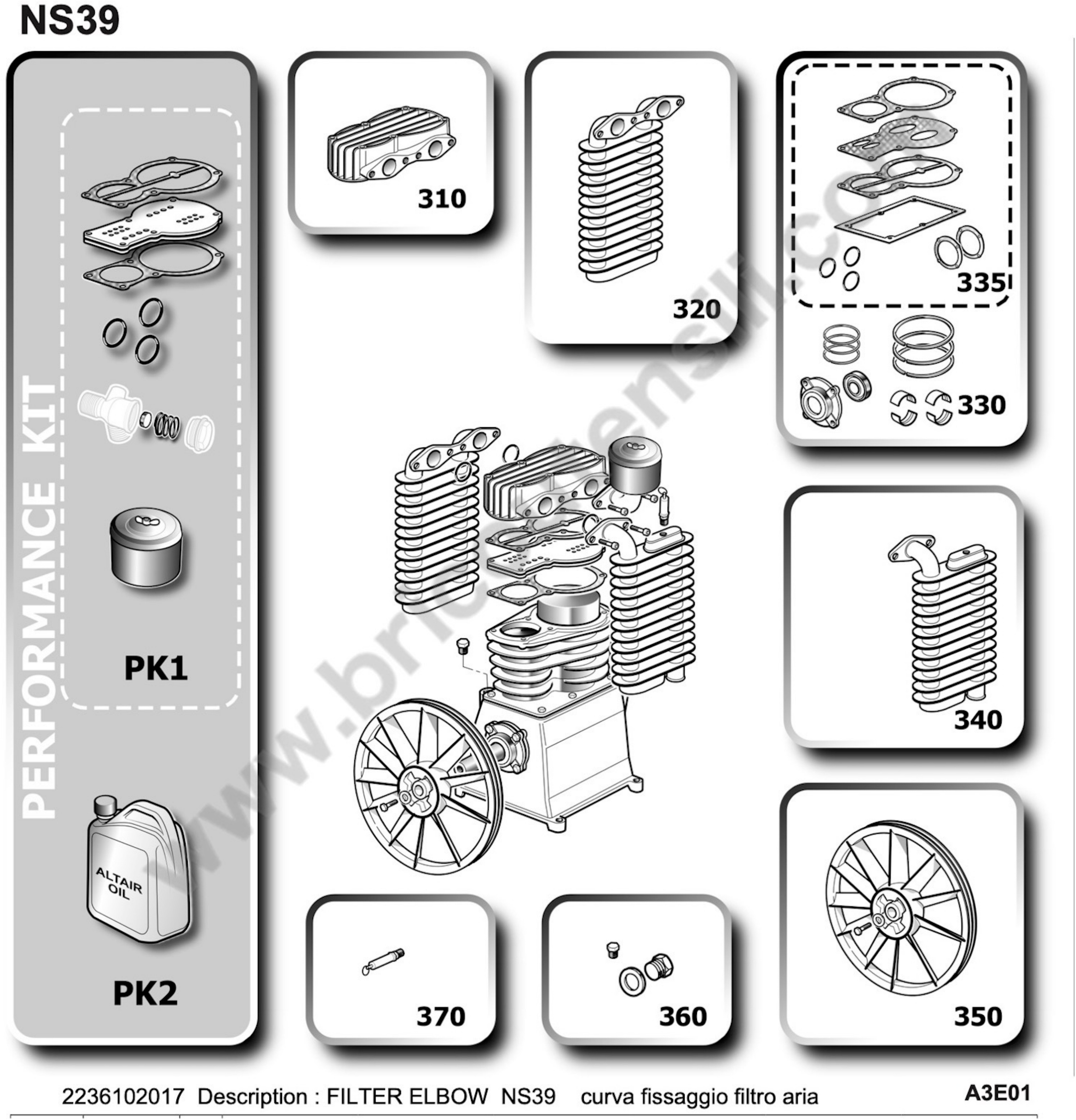

PUMP UNIT NS39 KITS Pag.2
Nr. Item Description End
310 2901324971 KIT HEAD CYLINDER NS39 32,93
320 2901324972 KIT AFTERCOOLER NS39 2WAY 152,21
325 2236113051 KIT VALVE PLATE+GASKET NS39 43,12
330 6229018500 Upgrade kit NS39 109,73
335 2901323578 SET GASKETS 31,87
340 2901324973 KIT 3 WAYS COOLER NS39 165,98
350 6229018800 Flywheel kit 81,27
360 2901324954 Oil level kit 12,56
370 6210716500 SAFETY VALVE 1/4 15BAR 2,52
MK1 8973037875 KIT SERVICE LIGHT NS39 28,45
MK2 1630020700 ALTAIR PRO OIL 1L
PK1 8973037638 NS39 - SERVICE KIT 85,34
PK2 6215716300 ALTAIR OIL 1L
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s ABAC websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to ABAC brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
NS39/500 CT5 5 V400 4116019393
6 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

NS39/500 CT5,5 V400 NT I Diagram

NS39/500 CT5,5 V400 NT I Diagram

Download (585.44KB)
