ABAC

ABAC A39B 200 CM3 Spare Parts

SKU: ABAC A39B 200 CM3 4116007352
€8.28
VAT included

ABAC A39B 200 CM3 Spare Parts

Rely on our experience and our professionalism, take care of your ABAC A39B 200 CM3 - 4116007352 Air Compressor by choosing only original spare parts. Buy in total safety and pay without worries all spare parts needed for maintenance are Guaranteed Original.
ABAC A39B 200 CM3 Spare Parts
  • ABAC A39B 200 CM3 Spare Parts
  • ABAC A39B 200 CM3 Spare Parts - Drawing
ABAC

ABAC A39B 200 CM3 Spare Parts

SKU: ABAC A39B 200 CM3 4116007352 Condition: New
€8.28
VAT included

ABAC A39B 200 CM3 Spare Parts

Rely on our experience and our professionalism, take care of your ABAC A39B 200 CM3 - 4116007352 Air Compressor by choosing only original spare parts. Buy in total safety and pay without worries all spare parts needed for maintenance are Guaranteed Original.
settings 36 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Shipped on: 10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
34 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

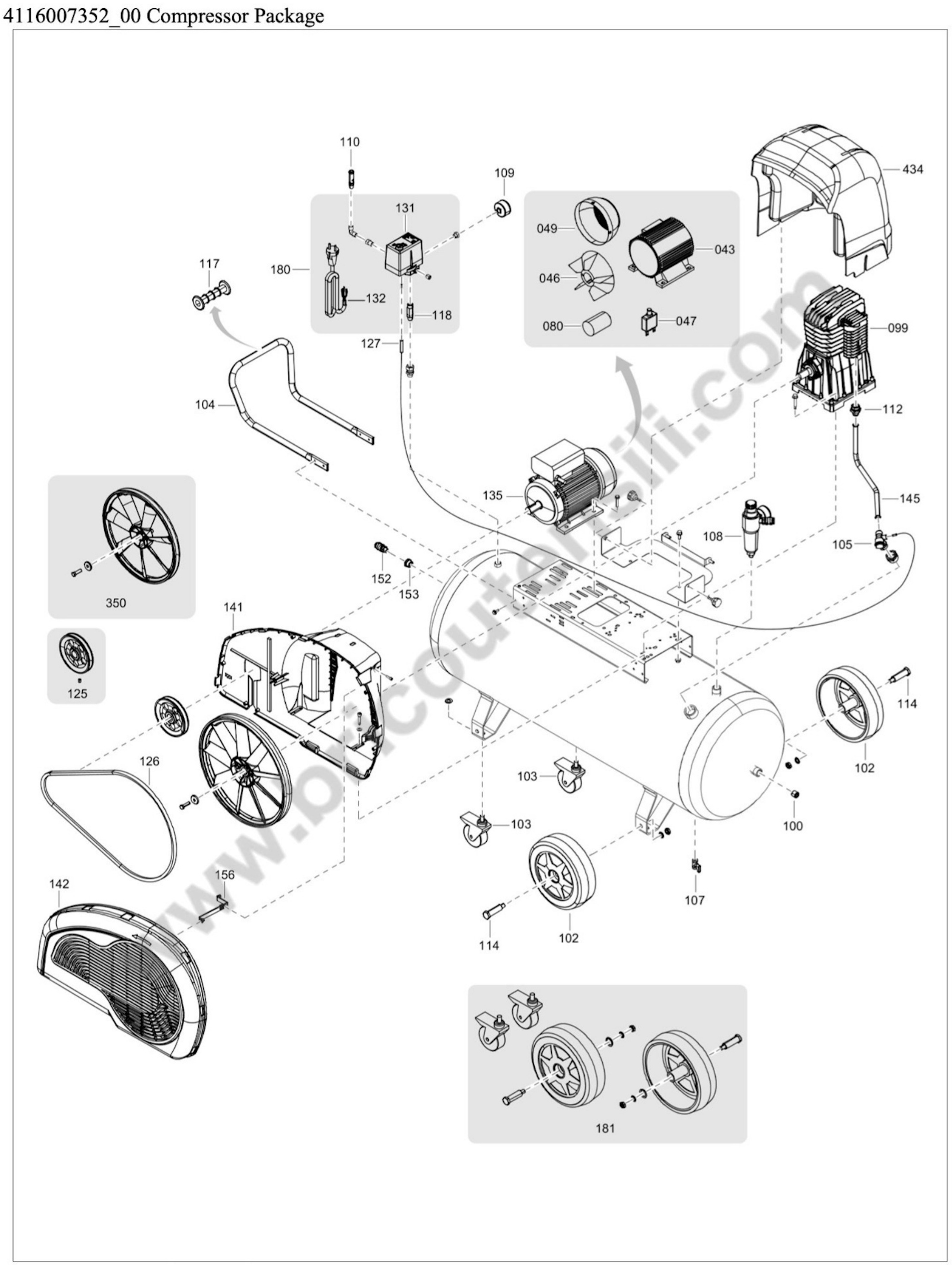

Esploso pagina 1
Pos. Item Price Buy
043
 photo_cameraImage coming soon 1127380688 Motor cover €7.81
046
 photo_cameraImage coming soon 1127380669 Fan €4.28
047
 photo_cameraImage coming soon 1127380673 Thermal protector €8.45
049
 photo_cameraImage coming soon 1127380670 Fan cover €7.67
080
 ABAC Capacitor 45MF 450V 3HP 1127310083 ABAC Capacitor 45MF 450V 3HP €24.66
080
 photo_cameraImage coming soon 1127380672 Capacitor 150MF €19.28
099
 photo_cameraImage coming soon 4116090651 Pump Unit €441.15
100
 photo_cameraImage coming soon 1127090003 Plug -receiver €5.45
102
 ABAC-BALMA Wheel D.250MM hole 20MM 6214347900 ABAC-BALMA Wheel D.250MM hole 20MM €29.10
103
 ABAC-BALMA Pivot Wheel D.80 W/Lock 2236105333 ABAC-BALMA Pivot Wheel D.80 W/Lock €21.68
104
 photo_cameraImage coming soon 6214343600 Handle €58.73
105
 Non Return Valve 3/4" M 1/2" M for Air Compressors ABAC - BALMA 2236110537 Non Return Valve 3/4" M 1/2" M for Air Compressors ABAC - BALMA €21.75
107
 Drain Tap 3/8" for Air Compressors ABAC - BALMA 6210717800 Drain Tap 3/8" for Air Compressors ABAC - BALMA €12.31
108
 Pressure Reducer 1/2" for Air Compressors ABAC - BALMA 6214345100 Pressure Reducer 1/2" for Air Compressors ABAC - BALMA €68.12
109
 Gauge 50MM for Air Compressors ABAC - BALMA 6214345000 Gauge 50MM for Air Compressors ABAC - BALMA €12.35
110
 ABAC Safety Valve 3/8" 11 Bar for Pump Unit A29B 6210719900 ABAC Safety Valve 3/8" 11 Bar for Pump Unit A29B €12.35
112
 photo_cameraImage coming soon 6231943500 Fitting €10.69
114
 ABAC-BALMA Wheel Pin D.20MM 6214348500 ABAC-BALMA Wheel Pin D.20MM €5.30
117
 photo_cameraImage coming soon 2236105157 Knob €9.06
118
 photo_cameraImage coming soon 2236105466 Fitting €4.41
125
 ABAC - BALMA Pulley Kit D130-1A-24 Aluminium 2901320206 ABAC - BALMA Pulley Kit D130-1A-24 Aluminium €41.04
126
 V-Belt A59 for Air Compressors ABAC - BALMA 6214632100 V-Belt A59 for Air Compressors ABAC - BALMA €10.07
127
 Rilsan Tube PA6 PE3030UK 6X4 Black 2236112998 Rilsan Tube PA6 PE3030UK 6X4 Black €4.48
131
 Pressure Switch 3/8 + MDR1 for Compressor A29B 50 CM3 2236106647 Pressure Switch 3/8 + MDR1 for Compressor A29B 50 CM3 €43.51
132
 photo_cameraImage coming soon 6256395400 Cable €71.89
135
 FIAC Motor MEC90 A24 3HP 50HZ 230V 1127380796 FIAC Motor MEC90 A24 3HP 50HZ 230V €353.74
141
 photo_cameraImage coming soon 2236111660 Plastic Back Belt Guard PAT 38A / 39B €46.11
142
 Front Belt Guard for Air Compressor ABAC A29 50 CM2 2236111656 Front Belt Guard for Air Compressor ABAC A29 50 CM2 €29.22
145
 BALMA NS 18S/200 CM3 Delivery Pipe 2236111073 BALMA NS 18S/200 CM3 Delivery Pipe €26.61
152
 Quick Coupling 1/4" M for Air Compressors ABAC - BALMA 6231944100 Quick Coupling 1/4" M for Air Compressors ABAC - BALMA €11.00
153
 photo_cameraImage coming soon 1127080508 Pressure switch fitting €3.74
156
 photo_cameraImage coming soon 2236112587 Bracket €14.41
350
 ABAC Flywheel Kit for Pump Unit A29B - PAT38 2901325050 ABAC Flywheel Kit for Pump Unit A29B - PAT38 €92.11
434
 photo_cameraImage coming soon 2236112174 Rear panel €216.28

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

ABAC A39B 200 CM3 Spare Parts

Rely on our experience and our professionalism, take care of your ABAC A39B 200 CM3 - 4116007352 Air Compressor by choosing only original spare parts. Buy in total safety and pay without worries all spare parts needed for maintenance are Guaranteed Original.

In the following table, look for the spare parts of the ABAC Air Compressor and the corresponding code.
ABAC A39B 200 CM3 - 4116007352

ABAC A39B 200 CM3 - 4116007352 Compressor Spare Parts
# Part Num. Description
043 1127380688 Motor cover
046 1127380669 Fan
047 1127380673 Thermal protector
049 1127380670 Fan cover
080 1127310083 Capacitor 45MF
080 1127380672 Capacitor 150MF
099 4116090651 Pump Unit
099 4116090651 Pump Unit Spare Parts
100 1127090003 Plug
102 6214347900 Wheel
103 2236105333 Pivot wheel
104 6214343600 Handle
105 2236110537 Non return valve
107 6210717800 Ball valve
108 6214345100 Pressure reducer
109 6214345000 Pressure gauge
110 6210719900 Safety valve
112 6231943500 Delivery pipe fitting
114 6214348500 Wheel pin
117 2236105157 Grip handler
118 2236105466 Pressure switch fitting
125 2901320206 Pulley kit
126 6214632100 Belt
127 2236112998 Rilsan Tube
131 2236106647 Pressure switch
132 6256395400 Cable
135 1127380796 Motor
141 2236111660 Belt Guard Rear
142 2236111656 Belt Guard Front
145 2236111073 Delivery pipe
152 6231944100 Rapid fitting
153 1127080508 Reducer Fitting
156 2236112587 Bracket
180 2236112557 Pressure switch kit
181 2236116696 Wheels kit
350 2901325050 Flywheel kit
434 2236112174 Rear panel
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s ABAC websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to ABAC brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
ABAC A39B 200 CM3 4116007352
6 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

ABAC A39B 200 CM3 Drawing

ABAC A39B 200 CM3 Drawing

Download (303.13KB)
