ABAC

ABAC Montecarlo L20 Spare Parts

SKU: Montecarlo L20 - 4116023465
€14.25
VAT included

ABAC Montecarlo L20 Spare Parts

Rely on our experience and our professionalism, take care of your ABAC Air Compressor Montecarlo L20 - 4116023465 by choosing only original spare parts. Buy in total safety and pay without worries all spare parts needed for maintenance are Guaranteed Original.

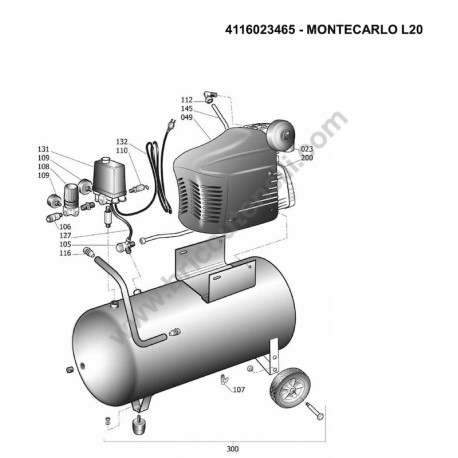

ABAC Montecarlo L20 Spare Parts - Compressor Drawing
  • ABAC Montecarlo L20 Spare Parts - Compressor Drawing
  • ABAC Montecarlo L20 Spare Parts - Kit Drawing
ABAC

ABAC Montecarlo L20 Spare Parts

SKU: Montecarlo L20 - 4116023465 Condition: New
€14.25
VAT included

ABAC Montecarlo L20 Spare Parts

Rely on our experience and our professionalism, take care of your ABAC Air Compressor Montecarlo L20 - 4116023465 by choosing only original spare parts. Buy in total safety and pay without worries all spare parts needed for maintenance are Guaranteed Original.
settings 21 spare parts
description 2 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
21 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

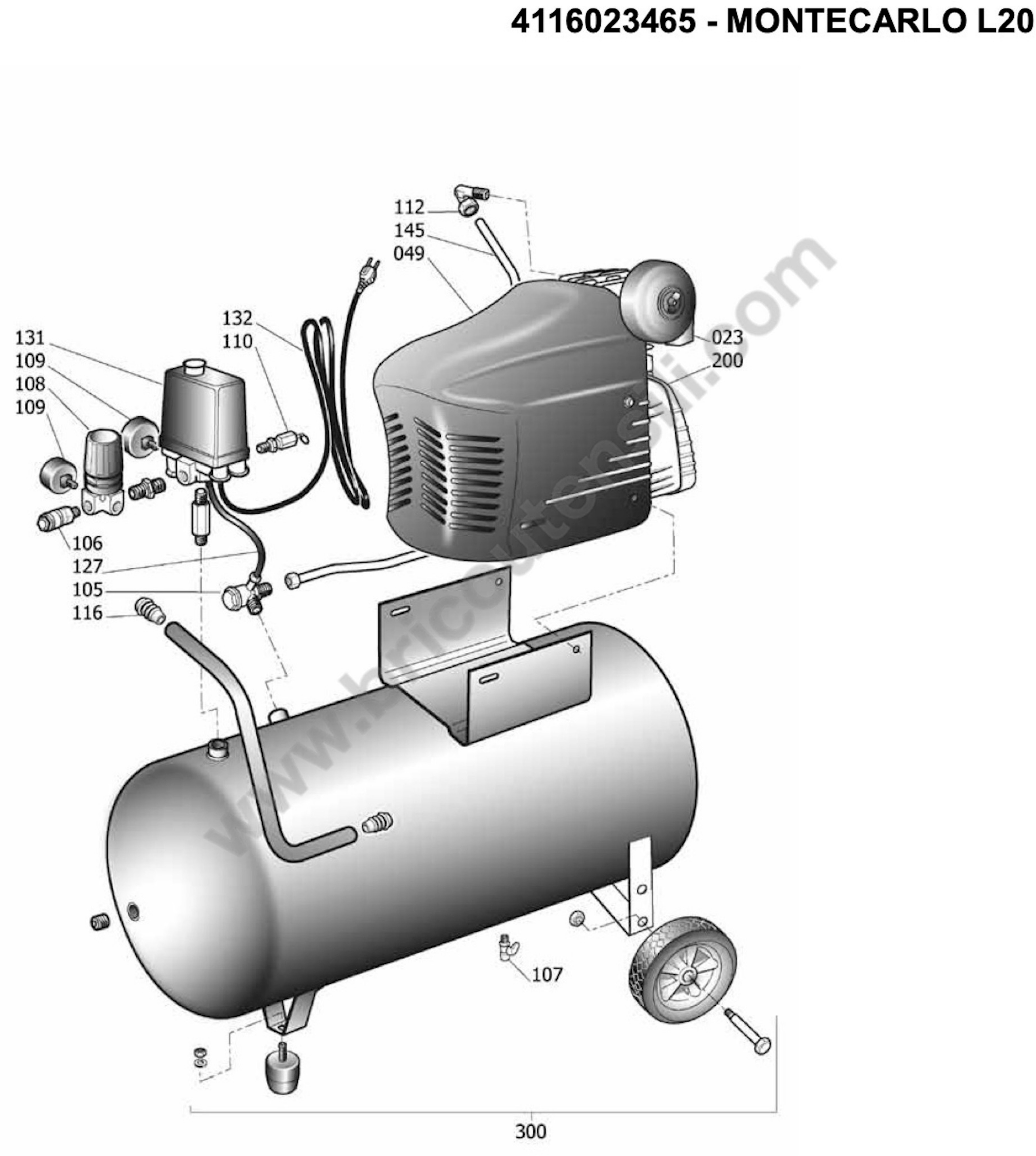

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
23
 Air Filter for Air Compressor ABAC POLE POSITION L20 8973035878 Air Filter for Air Compressor ABAC POLE POSITION L20 €14.26
49
 photo_cameraImage coming soon 8973037790 Shroud €21.48
105
 Non Return Valve 1/2" M for Air Compressor Montecarlo FC2/50 CM 2 6210718900 Non Return Valve 1/2" M for Air Compressor Montecarlo FC2/50 CM 2 €15.49
106
 photo_cameraImage coming soon 8973035995 Quick coupling €14.61
107
 photo_cameraImage coming soon 2236100072 Draining valve €9.02
108
 photo_cameraImage coming soon 2236105549 Pressure reducer €26.78
109
 Gauge D.40MM for Air Compressor ABAC POLE POSITION L20 8973037695 Gauge D.40MM for Air Compressor ABAC POLE POSITION L20 €16.99
109
 Gauge D.50MM for Air Compressor ABAC POLE POSITION L20 8973037788 Gauge D.50MM for Air Compressor ABAC POLE POSITION L20 €18.83
110
 Safety Valve 1/4 8 BAR for Pump Units ABAC L20 - FC2 6210719500 Safety Valve 1/4 8 BAR for Pump Units ABAC L20 - FC2 €12.59
112
 Elbow 3/8 M for Pump Units ABAC L20 - FC2 6231943600 Elbow 3/8 M for Pump Units ABAC L20 - FC2 €6.04
116
 photo_cameraImage coming soon 6214344600 Plastic plug €0.52
127
 Rilsan Tube PA6 PE3030UK 6X4 Black 2236112998 Rilsan Tube PA6 PE3030UK 6X4 Black €6.89
131
 Pressure Switch for Air Compressor ABAC POLE POSITION L20 8973037572 Pressure Switch for Air Compressor ABAC POLE POSITION L20 €26.62
132
 photo_cameraImage coming soon 6256395300 Cord €23.59
145
 photo_cameraImage coming soon 8973037803 Sending pipe €15.01
Page 2 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

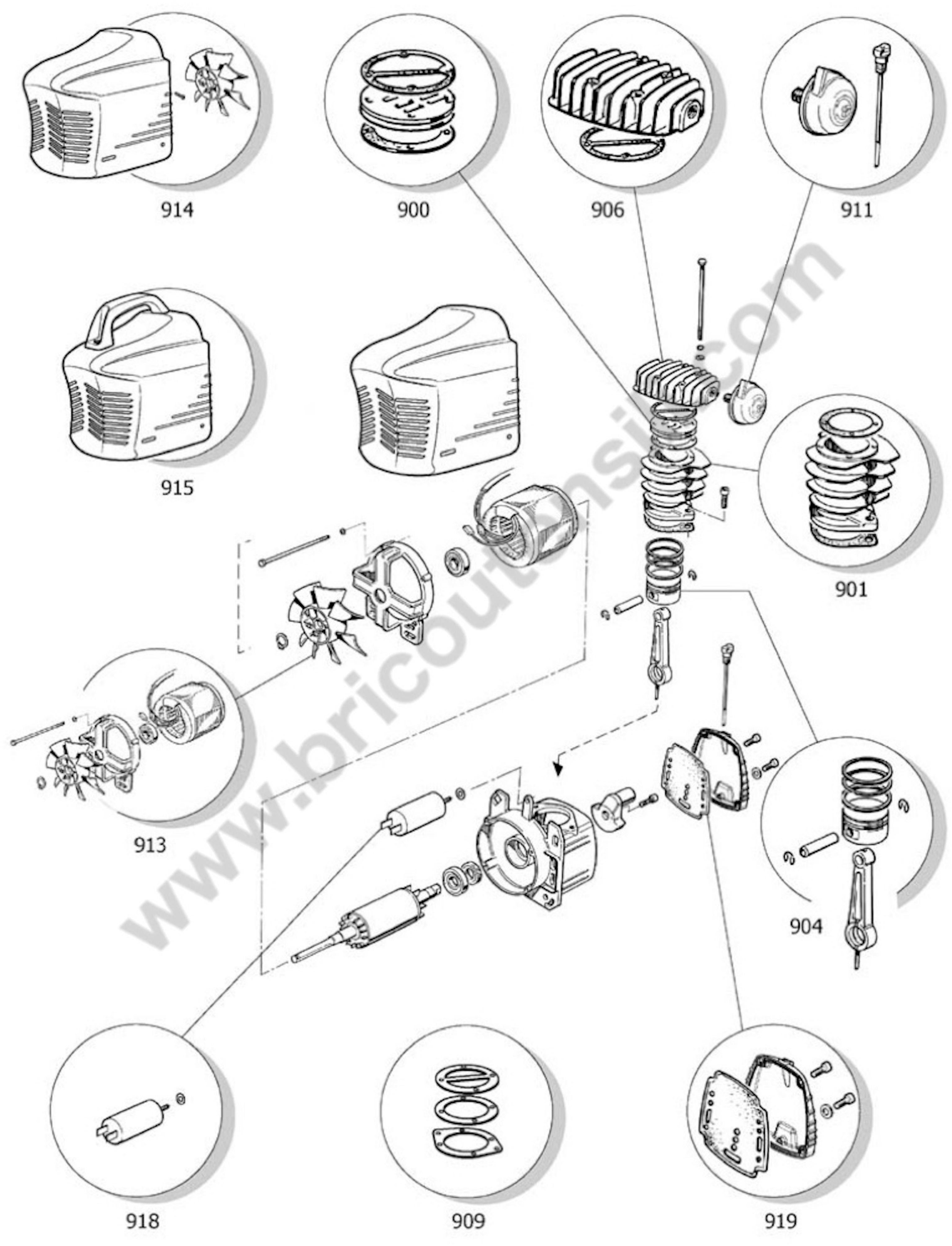

Esploso pagina 2
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
904
 photo_cameraImage coming soon 6229023300 Cylinder kit €39.63
906
 photo_cameraImage coming soon 6229024200 Pump head kit €53.67
909
 Gasket Kit for Air Compressor ABAC Montecarlo FC2/50 CM 2 6229023800 Gasket Kit for Air Compressor ABAC Montecarlo FC2/50 CM 2 €15.49
911
 Air Filter & Dipstik Kit for Pump Units ABAC L20 - FC2 6229020700 Air Filter & Dipstik Kit for Pump Units ABAC L20 - FC2 €16.60
915
 photo_cameraImage coming soon 8973037818 Base kit for portable air compr. €28.01
918
 35MF Capacitor for Pump Units ABAC - BALMA 6229021500 35MF Capacitor for Pump Units ABAC - BALMA €40.01

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

ABAC Montecarlo L20 Spare Parts

Rely on our experience and our professionalism, take care of your ABAC Air Compressor Montecarlo L20 - 4116023465 by choosing only original spare parts. Buy in total safety and pay without worries all spare parts needed for maintenance are Guaranteed Original.

In the following table, look for the spare parts of the ABAC Air Compressor and the corresponding code.
ABAC Air Compressor Montecarlo L20 - 4116023465
ABAC 4116023465 - MONTECARLO L20 SPARE PARTS Pag.1
# Part Num. Description
23 8973035878 Air filter
49 8973037790 Shroud - Discontinued
105 6210718900 Non return valve
106 8973035995 Quick coupling
107 2236100072 Draining valve
108 2236105549 Pressure reducer
109 8973037695 Gauge 40
109 8973037788 Gauge 50
110 6210719500 Safety valve
112 6231943600 Elbow
116 6214344600 Plastic plug
127 2236112998 Rilsan pipe
131 8973037572 Pressure switch
132 6256395300 Cord
145 8973037803 Sending pipe
200 4116091301 Pump - Discontinued
300 8973037784 Wheels kit - Discontinued
KIT Pag.2
900 6229025100 Valve plate kit - Discontinued
901 6229022000 Conrod / piston kit - Discontinued
904 6229023300 Cylinder kit - Discontinued
906 6229024200 Pump head kit
909 6229023800 Gasket kit
911 6229020700 Air filter & dip stick kit
913 6229024800 Motor stator kit (230/50 al) - Discontinued
914 8973037817 Motor cover kit - Discontinued
915 8973037818 Base kit for portable air compr.
918 6229021500 Start capacitor (230/50)
919 8973037820 Crank case cover kit
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s ABAC websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to ABAC brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
