ABAC

ABAC B2800-100 CM2 BLUE LINE Parts

SKU: B2800-100 CM2 BLUE LINE
€255.89
VAT included

ABAC B2800/100 CM2 V230 BLUE LINE Spare Parts

Rely on our experience and our professionalism, take care of your ABAC Air Compressor B2800/100 CM2 V230 BLUE LINE - 4116017596 by choosing only original spare parts. Buy in total safety and pay without worries all spare parts needed for maintenance are Guaranteed Original.
ABAC B2800-100 CM2 BLUE LINE Parts
  • ABAC B2800-100 CM2 BLUE LINE Parts
  • ABAC B2800-100 CM2 BLUE LINE Parts - Drawing
  • ABAC B2800-100 CM2 BLUE LINE Parts - Drawing Kit
ABAC

ABAC B2800-100 CM2 BLUE LINE Parts

SKU: B2800-100 CM2 BLUE LINE Condition: New
€255.89
VAT included

ABAC B2800/100 CM2 V230 BLUE LINE Spare Parts

Rely on our experience and our professionalism, take care of your ABAC Air Compressor B2800/100 CM2 V230 BLUE LINE - 4116017596 by choosing only original spare parts. Buy in total safety and pay without worries all spare parts needed for maintenance are Guaranteed Original.
settings 52 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
42 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

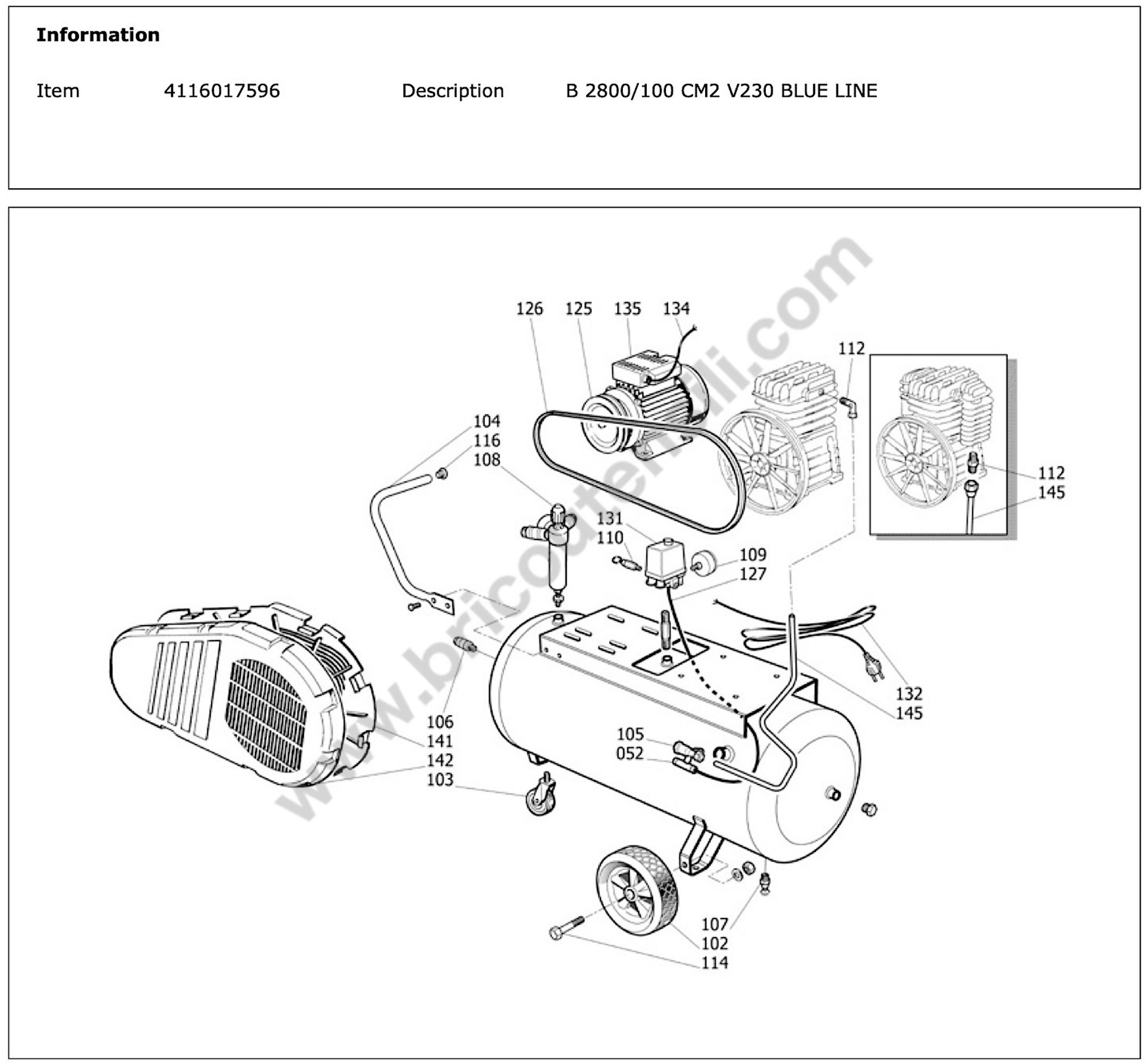

Esploso pagina 1

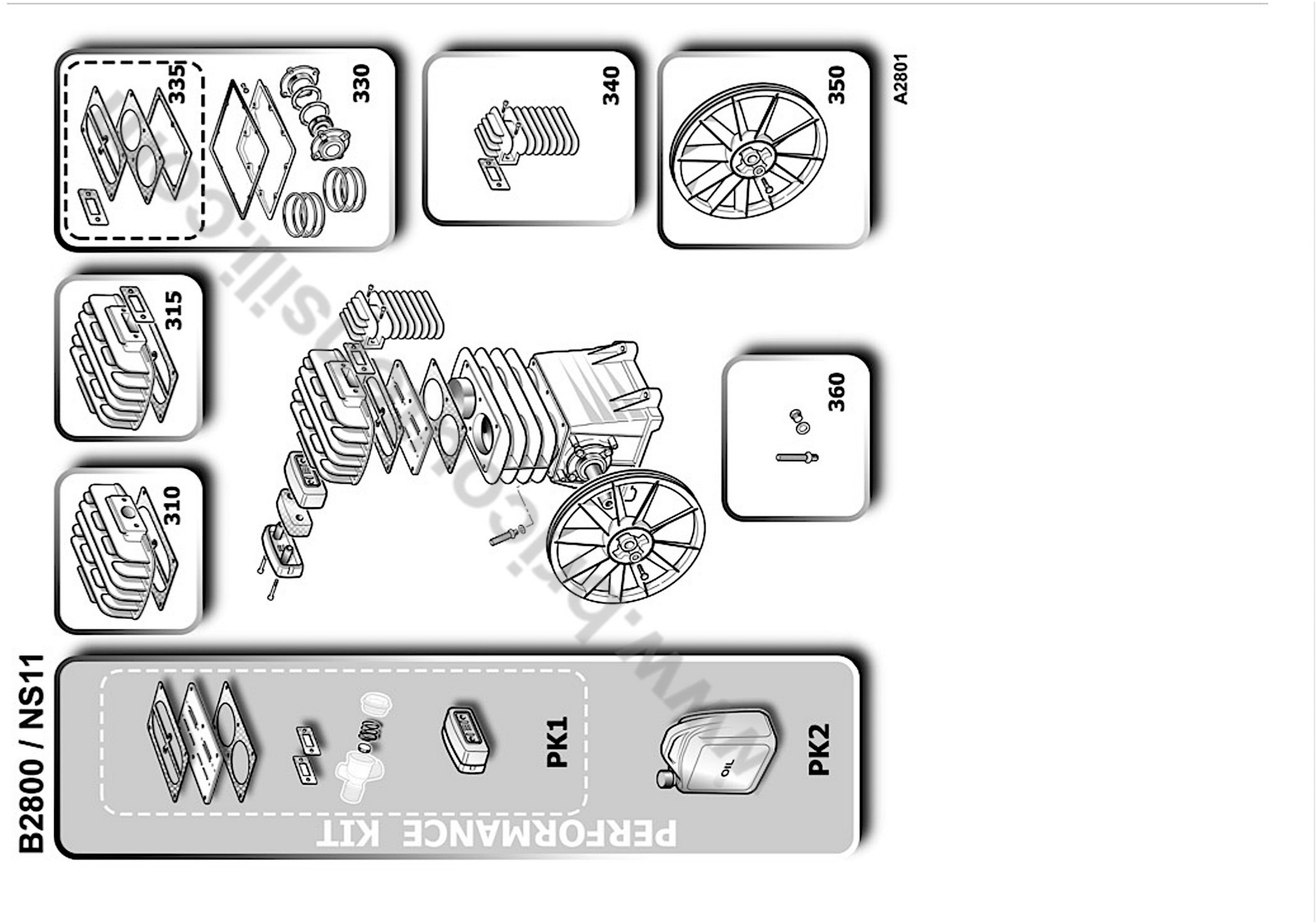

Esploso pagina 2
1 / 2
Pos. Item Price Buy
ABAC Can Altair Plus Synthetic Oil 5L 6215715800 ABAC Can Altair Plus Synthetic Oil 5L €82.29
da 2 pz: €4.11 da 4 pz: €8.23
photo_cameraImage coming soon 6215716300 Oil bottle €19.44
ABAC Service Kit for Pump Unit B2800 - NS11 8973037620 ABAC Service Kit for Pump Unit B2800 - NS11 €80.34
099
 photo_cameraImage coming soon 6218739200 Pump Unit €278.18
099
 photo_cameraImage coming soon 6218741800 Pump Unit NS11/B2800 €248.44
100
 photo_cameraImage coming soon 2236100168 Plug -receiver €1.23
102
 photo_cameraImage coming soon 6214347700 Wheel €11.03
103
 ABAC Pivot Wheel D.70 for Air Compressors 6214344300 ABAC Pivot Wheel D.70 for Air Compressors €14.05
104
 photo_cameraImage coming soon 2236109399 Handle €22.55
104
 photo_cameraImage coming soon 6214343700 Handle €19.78
105
 ABAC Non-Return Valve 3/4" Male 10 mm Tube for Air Compressors 2HP 2236110535 ABAC Non-Return Valve 3/4" Male 10 mm Tube for Air Compressors 2HP €51.99
105
 CECCATO Check Valve 1/2M D.10 Left 2236110860 CECCATO Check Valve 1/2M D.10 Left €25.64
105
 photo_cameraImage coming soon 6210718700 Non return valve €32.52
106
 Quick Coupling 1/4" M for Air Compressors ABAC - BALMA 6231944100 Quick Coupling 1/4" M for Air Compressors ABAC - BALMA €11.00
106
 photo_cameraImage coming soon 6231944200 Tap €22.96
107
 Drain Valve 3/8" for Air Compressors ABAC - BALMA 6210717700 Drain Valve 3/8" for Air Compressors ABAC - BALMA €4.32
108
 Pressure Reducer Mignon 3/8" for Air Compressors ABAC - BALMA 6214344200 Pressure Reducer Mignon 3/8" for Air Compressors ABAC - BALMA €44.42
109
 Gauge 50MM for Air Compressors ABAC - BALMA 6214345000 Gauge 50MM for Air Compressors ABAC - BALMA €12.35
110
 ABAC Safety Valve 3/8" 11 Bar for Pump Unit A29B 6210719900 ABAC Safety Valve 3/8" 11 Bar for Pump Unit A29B €12.35
112
 photo_cameraImage coming soon 6231943800 Fitting €7.17
114
 photo_cameraImage coming soon 6214348400 Wheel pin €3.12
117
 photo_cameraImage coming soon 2236105157 Knob €9.06
118
 photo_cameraImage coming soon 8973036197 Fitting €4.10
125
 photo_cameraImage coming soon 6224179900 Pulley €21.31
126
 ABAC B2800-100 PLUS CM2 Belt 6214629600 ABAC B2800-100 PLUS CM2 Belt €15.45
127
 photo_cameraImage coming soon 6245578000 Rilsan tube €15.98
131
 Pressure Switch for Air Compressor MONTECARLO FC2/50 CM 2 6256396900 Pressure Switch for Air Compressor MONTECARLO FC2/50 CM 2 €38.89
136
 photo_cameraImage coming soon 8973036609 Motor Overload €17.86
141
 ABAC B2800 Rear Belt Guard 2236115350 ABAC B2800 Rear Belt Guard €31.37
142
 ABAC B2800 Front Belt Guard 2236115352 ABAC B2800 Front Belt Guard €33.24
142
 photo_cameraImage coming soon 6214343100 Belt guard(Only For Old Productions of B2800&B3800) €26.92
145
 photo_cameraImage coming soon 2236105387 Delivery pipe B.2800/I/100 TCE NT. 9046752 €28.26
145
 ABAC B2800-100 PLUS CM2 Delivery Pipe 6245575700 ABAC B2800-100 PLUS CM2 Delivery Pipe €13.95
163
 photo_cameraImage coming soon 2236105337 5m. rubber hose quick coupling €19.30
310
 Head Kit (310) for Pump Unit B2800 - B3800 6229023900 Head Kit (310) for Pump Unit B2800 - B3800 €93.28
315
 Head Kit with Aftercooler Gasket for Pump Unit B2800 - B3800 6229024000 Head Kit with Aftercooler Gasket for Pump Unit B2800 - B3800 €74.60
330
 upgrade Kit 2901324933 upgrade Kit €188.94
335
 ABAC Gasket Kit for Pump Unit B28 6229023600 ABAC Gasket Kit for Pump Unit B28 €32.61
340
 photo_cameraImage coming soon 6229020400 Aftercooler Kit €134.61
350
 ABAC B3800 - NS18 Flywheel Kit 6229020900 ABAC B3800 - NS18 Flywheel Kit €71.07
350
 Flywheel Kit for Pump Unit B2800 - B2800I 6229023400 Flywheel Kit for Pump Unit B2800 - B2800I €62.57
360
 Oil Sight Glass Kit for Pump Unit ABAC B3800 - NS18 6229021000 Oil Sight Glass Kit for Pump Unit ABAC B3800 - NS18 €23.80

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

ABAC B2800/100 CM2 V230 BLUE LINE Spare Parts

Rely on our experience and our professionalism, take care of your ABAC Air Compressor B2800/100 CM2 V230 BLUE LINE - 4116017596 by choosing only original spare parts. Buy in total safety and pay without worries all spare parts needed for maintenance are Guaranteed Original.

In the following table, look for the spare parts of the ABAC Air Compressor and the corresponding code.
B2800/100 CM2 V230 BLUE LINE - 4116017596
B2800/100 CM2 V230 BLUE LINE - 4116017596 Spare Parts
# Part Num. Description End
099 6218741800 Pump Unit 21/07/15
099 6218739200 Pump Unit 27/10/04
100 2236100168 Plug -receiver 21/07/15
102 6214347700 Wheel 21/07/15
103 6214344300 Pivot wheel - front pin 21/07/15
104 2236109399 Handle 17/09/00
104 6214343700 Handle 21/07/15
105 2236110860 NO RET.VALVE 1/2M-B.10 SX.VIT 15/10/12
105 2236110535 NO RET.VALVE 3/4M-BIC.10 VITON 21/07/15
105 6210718700 Non return valve 23/03/12
105 6210719200 Non return valve 24/04/11
106 6231944200 Tap 1/2 M 9047020 05/11/13
106 6231944100 Tap 1/4 M 9047024 21/07/15
107 6210717700 Drain tap 21/07/15
108 6214344200 Pressure reducer MIGNON 3/8 PRESSURE REDUCER 21/07/15
109 6214345000 Gauge 1/4 0/20 11B 25BC2 90BC2 21/07/15
110 6210719900 Safety valve 25BC2 50BC2 200C4RPRO 21/07/15
112 6231943800 Fitting 1/2 M BICONO 10 9053833 21/07/15
114 6214348400 Wheel pin 21/07/15
117 2236105157 Knob 21/07/15
118 8973036197 Fitting 21/07/15
125 2236111823 Pulley 21/07/15
125 6224179900 Pulley 28/09/12
126 6214629600 Belt 21/07/15
127 6245578000 Rilsan tube 21/07/15
131 6256396900 Pressure switch -  2236106647 13/03/11
131 2236110614 Pressure switch 21/07/15
132 2236106738 Cable 21/07/15
135 6236115600 MOT.HP 2 M V230 50HZ MEC 80 08/06/12
135 2236111138 MOT.HP 2 M V230 50HZ MEC 80 21/07/15
135 2236112951 MOT.2HP 230/1/50HZ MEC80 TH. 21/07/15
136 8973036609 Star-delta starter 21/07/15
141 2236110471 GRID CONVEYOR B2800 NEW 21/07/15
141 2236115350 REAR PLASTIC BELT GUARD B2800 21/07/15
141 6214345200 Belt guard 31/12/09
142 2236115352 FRONTAL PLASTIC BG 2800-3800 21/07/15
142 6214343100 PARAC.ANTERIORE B2800/3800 833310D 21/07/15
145 6245575700 Delivery pipe B.2800/100 ALL. NT 9043098 21/07/15
145 2236105387 Delivery pipe B.2800/I/100 TCE NT. 9046752 25/04/05
145 2236105433 Delivery pipe B.2800B/I/100 CU NT 9046909 27/10/04
163 2236105337 Hose 21/07/15
B 2800/100 CM2 V230 BLUE LINE - 4116017596 Kit
# Part Num. Description
310 6229023900 Cylinder head kit B28/B28I/B38 9428060 21/07/15
315 6229024000 Cylinder head kit B28/B28I/B38 C/COLL. 27/10/04
330 2901324933 Upgrade kit B2800 21/07/15
330 2901324933 Upgrade kit 27/10/04
335 6229023600 Joints kit B28/B28I/B38 21/07/15
340 6229020400 Aftercooler kit 25BC2 21/07/11
350 6229020900 Flywheel kit 27/10/04
350 6229023400 Flywheel kit 21/07/15
360 6229021000 Oil level kit 21/07/15
PK1 8973037620 Performance kit 21/07/15
PK2 6215716300 ALTAIR OIL 1L 21/07/15
PK2 6215715800 ALTAIR PLUS OIL 5L 27/10/04
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s ABAC websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to ABAC brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
