ABAC

ABAC Parts for Air Compressor Pole Position B20 BASELINE

SKU: POLE POSITION B20 BASELINE
€10.39
VAT included

ABAC Parts for Air Compressor Pole Position B20 BASELINE

Rely on our experience and our professionalism, take care of your ABAC Air Compressor 24 Lt POLE POSITION B20 BASELINE 1129100007 by choosing only original spare parts. Buy in total safety and pay without worries all spare parts needed for maintenance are Guaranteed Original.
ABAC Parts for Air Compressor Pole Position B20 BASELINE
  • ABAC Parts for Air Compressor Pole Position B20 BASELINE
  • ABAC Parts for Air Compressor Pole Position B20 BASELINE - Drawing
  • ABAC Parts for Air Compressor Pole Position B20 BASELINE - Drawing - 1
ABAC

ABAC Parts for Air Compressor Pole Position B20 BASELINE

SKU: POLE POSITION B20 BASELINE Condition: New
€10.39
VAT included

ABAC Parts for Air Compressor Pole Position B20 BASELINE

Rely on our experience and our professionalism, take care of your ABAC Air Compressor 24 Lt POLE POSITION B20 BASELINE 1129100007 by choosing only original spare parts. Buy in total safety and pay without worries all spare parts needed for maintenance are Guaranteed Original.
settings 31 spare parts
description 2 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
31 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

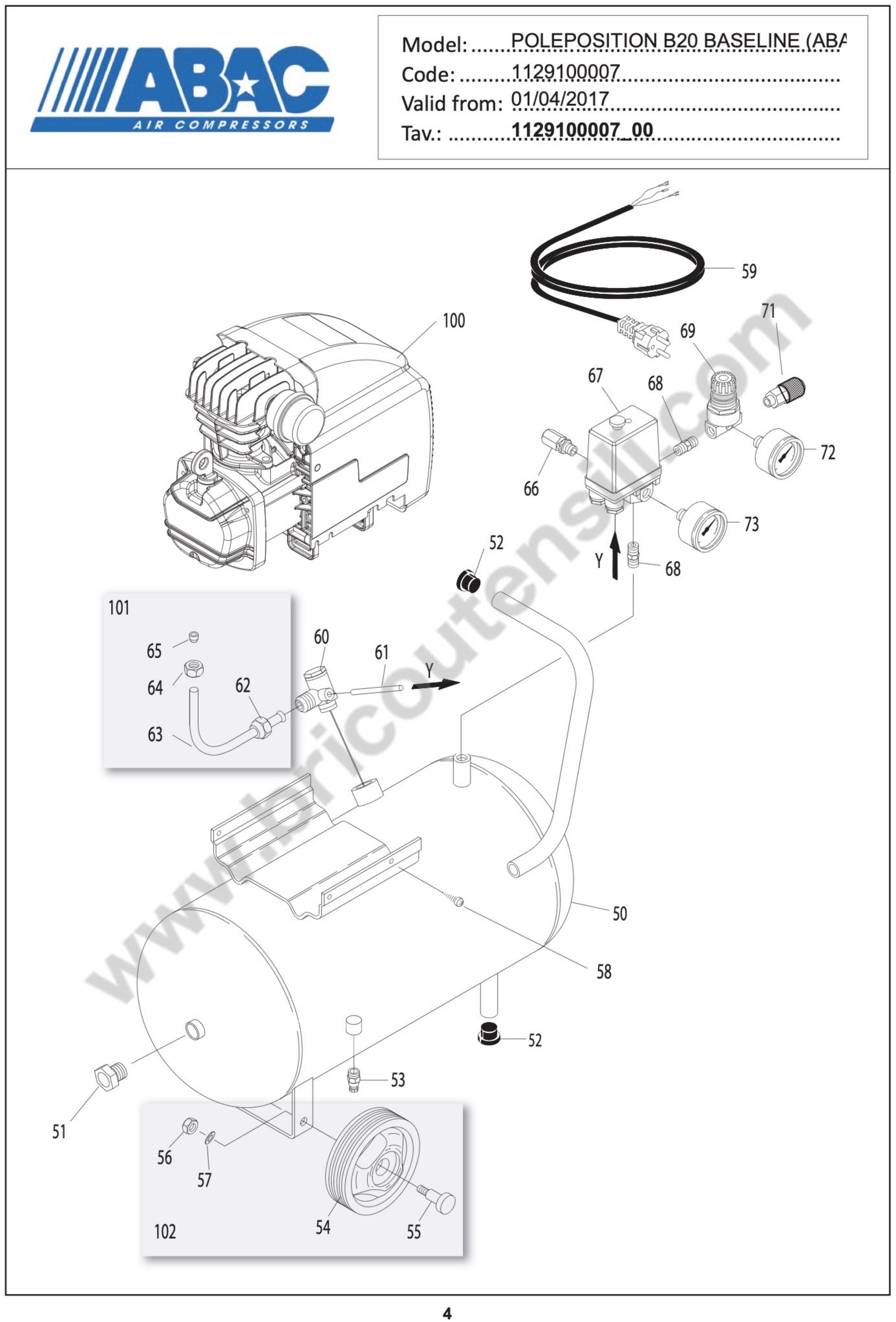

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
51
 photo_cameraImage coming soon 1129102504 PLUG €10.39
52
 photo_cameraImage coming soon 1129102497 RUBBER FOOT €11.12
53
 photo_cameraImage coming soon 1129700324 DISCHARGE TAP 3/8”R €9.28
59
 photo_cameraImage coming soon 1129701301 Infeed cable €34.24
60
 photo_cameraImage coming soon 1127190006 CHECK VALVE €37.23
61
 photo_cameraImage coming soon 1127230001 RILSAN TUBE €8.78
62
 photo_cameraImage coming soon 1129700631 NUT €7.67
63
 photo_cameraImage coming soon 1129703074 INFEED HOSE €14.28
64
 ABAC Nut M16 for Montecarlo L20 1129700325 ABAC Nut M16 for Montecarlo L20 €1.54
65
 photo_cameraImage coming soon 1127040107 OGIVE €6.28
66
 ABAC Safety Valve M1-4-9Bar 1129700303 ABAC Safety Valve M1-4-9Bar €10.71
67
 Pressure Switch 8 Bar B15/B20 for Compressors ABAC 1129701904 Pressure Switch 8 Bar B15/B20 for Compressors ABAC €24.91
68
 photo_cameraImage coming soon 1129700330 FITTING €6.73
69
 photo_cameraImage coming soon 1129701116 PRESSURE REDUCER €23.49
71
 photo_cameraImage coming soon 1129700276 TAP €13.26
72
 ABAC Gauge D.40MM 1127110003 ABAC Gauge D.40MM €8.64
73
 photo_cameraImage coming soon 1127110008 PRESSURE GAUGE D40 X R1/4 AL €7.46
101
 ABAC Pole Position B20 Infeed Hose Kit 1129703149 ABAC Pole Position B20 Infeed Hose Kit €14.26
102
 ABAC Pole Position B20 Wheel Kit 1129701485 ABAC Pole Position B20 Wheel Kit €15.41
Page 2 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

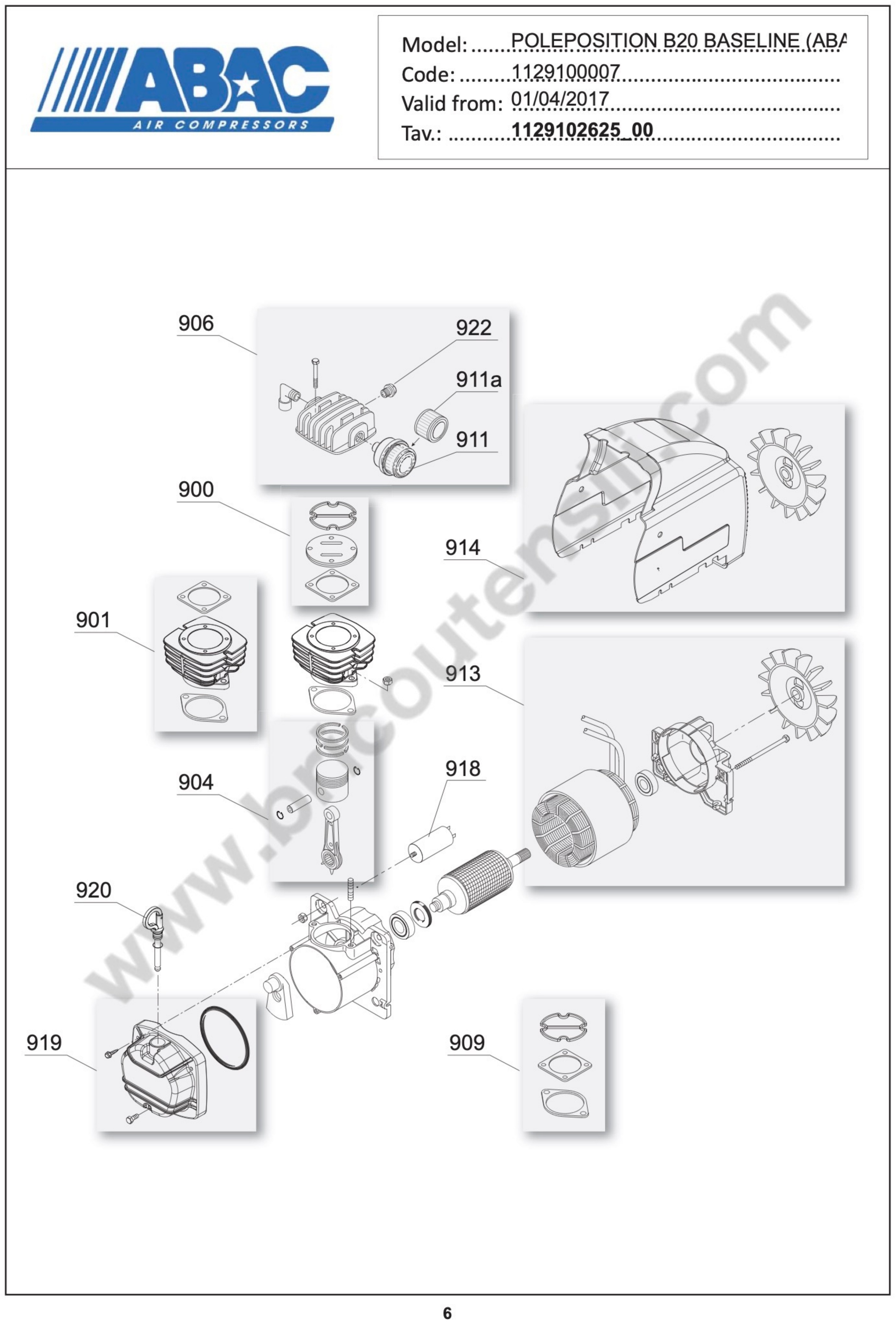

Esploso pagina 2
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
900
 photo_cameraImage coming soon 1124080116 Valve Plates kit B20 €48.83
901
 photo_cameraImage coming soon 1124080117 CYLINDER KIT €61.47
904
 photo_cameraImage coming soon 1124190033 CON ROD-PISTON KIT €50.08
906
 photo_cameraImage coming soon 1129703710 HEAD KIT GM146 RED LINE €62.72
909
 photo_cameraImage coming soon 1124080122 Gasket Kits B20 €20.24
911a
 photo_cameraImage coming soon 1129703717 FILTER CARTRIDGE €13.55
913
 photo_cameraImage coming soon 1124080118 FIELD KIT €94.15
914
 photo_cameraImage coming soon 1124080119 FAN COVER KIT €43.58
918
 photo_cameraImage coming soon 1127310032 CAPACITOR - CONDENSER €17.44
919
 photo_cameraImage coming soon 1129703712 CASE COVER KIT €55.61
920
 photo_cameraImage coming soon 1129703714 OIL PLUG €5.07
922
 Start Valve M 3/8 " 1.5 bar for Air Compressor ABAC Montecarlo 50 Lt 1127190601 Start Valve M 3/8 " 1.5 bar for Air Compressor ABAC Montecarlo 50 Lt €10.13

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

ABAC Parts for Air Compressor Pole Position B20 BASELINE

Rely on our experience and our professionalism, take care of your ABAC Air Compressor 24 Lt POLE POSITION B20 BASELINE 1129100007 by choosing only original spare parts. Buy in total safety and pay without worries all spare parts needed for maintenance are Guaranteed Original.

In the following table, look for the spare parts of the ABAC Air Compressor and the corresponding code.
POLE POSITION B20 BASELINE (ABAC) 1129100007

POLE POSITION B20 BASELINE (ABAC) 1129100007 Pag.1
# Part Num. Description
50 1129703737 TANK
51 1129102504 PLUG
52 1129102497 RUBBER FOOT
53 1129700324 DISCHARGE TAP
54 1129701357 WHEEL
55. X SCREW
56. X NUT
57. X WASHER
58. X SCREW
59 1129701301 POWER CABLE
60 1127190006 CHECK VALVE
61 1127230001 RILSAN TUBE
62 1129700631 NUT
63 1129703074 INFEED HOSE
64 1129700325 NUT
65 1127040107 OGIVE
66 1129700303 RELIEF VALVE
67 1129701904 PRESSURE SWITCH
68 1129700330 FITTING
69 1129701116 PRESSURE REDUCER
71 1129700276 TAP
72 1127110003 PRESSURE GAUGE
73 1127110008 PRESSURE GAUGE
100 1129102625 PUMP UNIT : Alternative code : 1129100014 GM146-50L CE
101 1129703149 INFEED HOSE KIT
102 1129701485 KIT
POLE POSITION B20 BASELINE (ABAC) 1129100007 Pag.2
900 1124080116 VALVE PLATE KIT
901 1124080117 KIT
904 1124190033 CON ROD-PISTON KIT
906 1129703710 HEAD KIT
911 2236104790 KIT
911a 1129703717 FILTER CARTRIDGE
909 1124080122 GASKETS KIT
913 1124080118 KIT
914 1124080119 KIT
918 1127310032 CONDENSER
919 1129703712 KIT
920 1129703714 PLUG
922 1127190601 START VALVE
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s ABAC websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to ABAC brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
POLE POSITION B20 BASELINE
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Diagram Pole Position B20 BASE

Diagram Pole Position B20 BASE

Download (594.14KB)
