CHICAGO PNEUMATIC

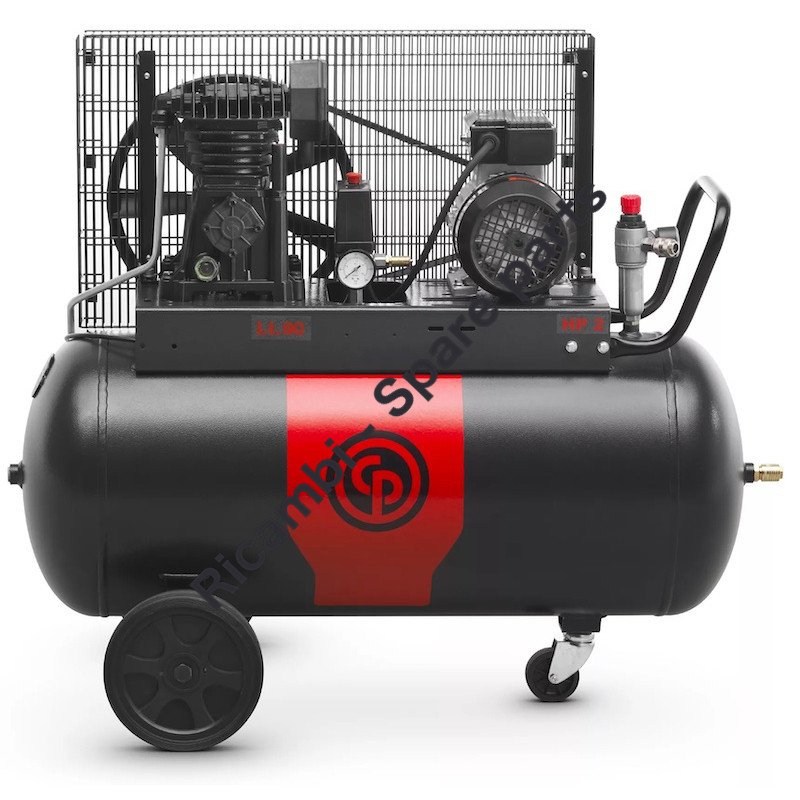

CHICAGO PNEUMATIC Parts for Air Compressor CPRC 290 NS12 MS E1

SKU: CPRC 290 4116023631
€0.11
VAT included

CHICAGO PNEUMATIC Spare Parts for Air Compressor CPRC 290 NS12 MS E1

Distribution and sale of original ABAC spare parts, low prices and a professional repair service able to advise you on the purchase of the most suitable spare part to quickly solve any maintenance and repair problem for CHICAGO PNEUMATICS AIR COMPRESSOR CPRC 290 NS12 MS E1 - 4116023631.

CHICAGO PNEUMATIC Parts for Air Compressor CPRC 290 NS12 MS E1
  • New
  • Out-of-Stock
  • CHICAGO PNEUMATIC Parts for Air Compressor CPRC 290 NS12 MS E1
  • CHICAGO PNEUMATIC Parts Diagram for Air Compressor CPRC 290 NS12 MS E1
  • CHICAGO PNEUMATIC Parts Diagram for Air Compressor CPRC 290 NS12 MS E1 - 1
CHICAGO PNEUMATIC

CHICAGO PNEUMATIC Parts for Air Compressor CPRC 290 NS12 MS E1

SKU: CPRC 290 4116023631 Condition: New
€0.11
VAT included

CHICAGO PNEUMATIC Spare Parts for Air Compressor CPRC 290 NS12 MS E1

Distribution and sale of original ABAC spare parts, low prices and a professional repair service able to advise you on the purchase of the most suitable spare part to quickly solve any maintenance and repair problem for CHICAGO PNEUMATICS AIR COMPRESSOR CPRC 290 NS12 MS E1 - 4116023631.

settings 42 Spare parts
description 2 exploded views
picture_as_pdf Download Exploded PDF
Quantity
Out-of-Stock

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
MORE INFO:: [email protected]
Machine Type: Air Compressor
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal PayPal Pay in 3 Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
42 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
099
 photo_cameraImage coming soon 4116090644 Pump PAT 24 SPAR GRAY €259.25
100
 photo_cameraImage coming soon 1127090003 Plug -receiver 1/2' ZNT €1.10
102
 photo_cameraImage coming soon 6214347700 Wheel 200X47 F15 ESTETICA 9042009 €10.92
103
 photo_cameraImage coming soon 6214344300 Pivot wheel - front pin PIV.D70 H=99 Q=70 KG 9044010 €5.54
105
 photo_cameraImage coming soon 2236110860 Non return valve 1/2M-B.10 SX.VIT €14.41
106
 photo_cameraImage coming soon 2236112708 UNIV COUPLING 1/2+ M €11.98
106
 photo_cameraImage coming soon 6231944100 Universal Tap 1/2M NICHEL €6.89
107
 photo_cameraImage coming soon 2236111480 Drain tap 25DC2 200C4RPR €17.53
107
 DRAIN TAP 3/8+ 6210717700 DRAIN TAP 3/8+ €3.93
108
 photo_cameraImage coming soon 6214344200 Pressure reducer MIGNON 3/8 €38.23
109
 photo_cameraImage coming soon 6214345000 Gauge 50REAR 1/4 0/20 €10.14
110
 photo_cameraImage coming soon 6210719900 Safety valve €7.87
113
 photo_cameraImage coming soon 6214349500 JOINT BIC.10 €2.66
114
 photo_cameraImage coming soon 6214348400 Wheel pin 200 EX HEAD. D.15 9011026 €3.01
118
 photo_cameraImage coming soon 2236105466 Fitting 3/8 X 60 HEX 9050258 €3.60
118A
 photo_cameraImage coming soon 8973036197 Fitting H 85 3/8 M/M ZIN.CINA 9414365 €3.99
125
 photo_cameraImage coming soon 2901320246 Pulley €21.00
126
 photo_cameraImage coming soon 0367102100 Belt A 53 (13 X 1346 LI) 9075006 €8.16
127
 photo_cameraImage coming soon 2236112998 Rilsan tube €1.62
131
 photo_cameraImage coming soon 6256396900 Pressure switch €20.97
132
 photo_cameraImage coming soon 2236106733 Cable 3X1X1300 SCHUKO ALM/PRST. 9065061 €13.01
132
 photo_cameraImage coming soon 6256395300 CABLE 3X1X1500 €16.45
135
 photo_cameraImage coming soon 2236113724 Motor 2HP 230/1/50HZ MEC80 TH.8A €301.61
136
 photo_cameraImage coming soon 8973036609 Star-delta starter 10A 9612110 €17.42
142B
 photo_cameraImage coming soon 2236111738 Belt guard METAL GRID PAT24 €81.74
142
 photo_cameraImage coming soon 2236112755 Belt guard METAL GRID S.V.PAT24 €96.21
142A
 photo_cameraImage coming soon 6214342500 Belt guard 25C2MRPRO 25C2RPRP 50C2MRPRO €67.61
145
 photo_cameraImage coming soon 6245575700 Delivery pipe B.2800/100 ALL. NT 9043098 €3.06
Page 2 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Esploso pagina 2
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
PK2
 photo_cameraImage coming soon 6215715800 Sintetic Oil Altair Plus 5L €98.98
KM2
 photo_cameraImage coming soon 6215715800 Sintetic Oil Altair Plus 5L €98.98
PK1
 photo_cameraImage coming soon 8973037657 Performance kit A29B/A29B-0/A39B/A39B-0 €56.72
KM1
 photo_cameraImage coming soon 8973037864 Maintenance kit A29B/A29B-0/A39B/A39B €18.92
305
 AIR FILTER PAT24/38 2236112735 AIR FILTER PAT24/38 €15.15
310
 photo_cameraImage coming soon 2901325044 KIT HEAD CYLINDER PAT24/PAT38 €35.93
325
 photo_cameraImage coming soon 2236112518 Valve plate kit PAT24/38 €34.95
330
 photo_cameraImage coming soon 2901325046 Upgrade kit €48.30
335
 photo_cameraImage coming soon 2901325045 Joints kit PAT24/38 €17.28
340
 photo_cameraImage coming soon 2901325047 Aftercooler kit PAT24/PAT38 €31.65
345
 photo_cameraImage coming soon 2236112434 Cylinder kit PAT24 €60.68
350
 photo_cameraImage coming soon 2901325048 Flywheel kit €39.17
355
 photo_cameraImage coming soon 2236111619 Conrod-piston kit LP €26.84
360
 photo_cameraImage coming soon 2901325049 Oil level kit PAT24/PAT38 €3.29
375
 photo_cameraImage coming soon 1630020700 Oil can €12.77

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

CHICAGO PNEUMATIC Spare Parts for Air Compressor CPRC 290 NS12 MS E1

Distribution and sale of original ABAC spare parts, low prices and a professional repair service able to advise you on the purchase of the most suitable spare part to quickly solve any maintenance and repair problem for CHICAGO PNEUMATICS AIR COMPRESSOR CPRC 290 NS12 MS E1 - 4116023631.

In the following table, look for the spare parts of the ABAC Air Compressor and the corresponding code.
CPRC CPRC 290 NS12 MS E1

CHICAGO PNEUMATIC CPRC 290 NS12 MS E1 - 4116023631 PARTS LIST Pag.1
# Part Num. Description
099 4116090644 Pump PAT 24 SPAR GRAY
100 1127090003 Plug -receiver 1/2' ZNT
102 6214347700 Wheel 200X47 F15 ESTETICA 9042009
103 6214344300 Pivot wheel - front pin PIV.D70 H=99 Q=70 KG 9044010
104 6214343700 Handle
105 2236110860 Non return valve 1/2M-B.10 SX.VIT
106 6231944100 Universal Tap 1/4 M 9047024
106 2236112708 Universal Tap 1/2M NICHEL
107 2236111480 Drain tap
107A 6210717700 Drain tap 25DC2 200C4RPR
108 6214344200 Pressure reducer MIGNON 3/8
109 6214345000 Gauge 50REAR 1/4 0/20
110 6210719900 Safety valve
113 6214349500 JOINT BIC.10
114 6214348400 Wheel pin 200 EX HEAD. D.15 9011026
118 2236105466 Fitting 3/8 X 60 HEX 9050258
118A 8973036197 Fitting H 85 3/8 M/M ZIN.CINA 9414365
125 2901320246 Pulley
125 2236111823 Pulley
126 0367102100 Belt A 53 (13 X 1346 LI) 9075006
127 2236112998 Rilsan tube PA6 PE3030UK (6X4 BLACK)
127 6245578000 Rilsan tube
131 6256396900 Pressure switch
132 2236106733 Cable 3G1 L=1500 SCHUKO ANTIOL.
132 6256395300 Cable 3X1X1300 SCHUKO ALM/PRST. 9065061
135 2236113724 Motor 2HP 230/1/50HZ MEC80 TH.8A
136 8973036609 Star-delta starter 10A 9612110
142 2236112755 Belt guard METAL GRID S.V.PAT24
142A 6214342500 Belt guard 25C2MRPRO 25C2RPRP 50C2MRPRO
142B 2236111738 Belt guard METAL GRID PAT24
145 6245575700 Delivery pipe B.2800/100 ALL. NT 9043098
CHICAGO PNEUMATIC CPRC 290 NS12 MS E1 - 4116023631 PARTS LIST Pag.2
# Part Num. Description
305 2236111635 Air filter PAT24/38
305 2236112735 AIR FILTER PAT24/38
310 2901325044 KIT HEAD CYLINDER PAT24/PAT38
325 2236112518 Valve plate kit PAT24/38
330 2901325046 Upgrade kit
335 2901325045 Joints kit PAT24/38
340 2901325047 Aftercooler kit PAT24/PAT38
341 2236112795 Female connection kit
345 2236112434 Cylinder kit PAT24
350 2901325048 Flywheel kit
355 2236111619 Conrod-piston kit LP
360 2901325049 Oil level kit PAT24/PAT38
365 2236112437 Crankcase cover kit
375 1630020700 Oil can
KM1 8973037864 Maintenance kit A29B/A29B-0/A39B/A39B
PK1 8973037657 Performance kit A29B/A29B-0/A39B/A39B-0
KM2 6215715800 Sintetic Oil Altair Plus 5L
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s CHICAGO PNEUMATIC websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to CHICAGO PNEUMATIC brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
