CHICAGO PNEUMATIC

CHICAGO PNEUMATIC Parts for Air Compressor CPRC 250 NS12 MS

SKU: CPRC 250 4116023630
€0.11
VAT included

CHICAGO PNEUMATIC Spare Parts for Air Compressor CPRC 250 NS12 MS - 4116023630

Distribution and sale of original ABAC spare parts, low prices and a professional repair service able to advise you on the purchase of the most suitable spare part to quickly solve any maintenance and repair problem for CHICAGO PNEUMATICS AIR COMPRESSOR CPRC 250 NS12 MS - 4116023630.

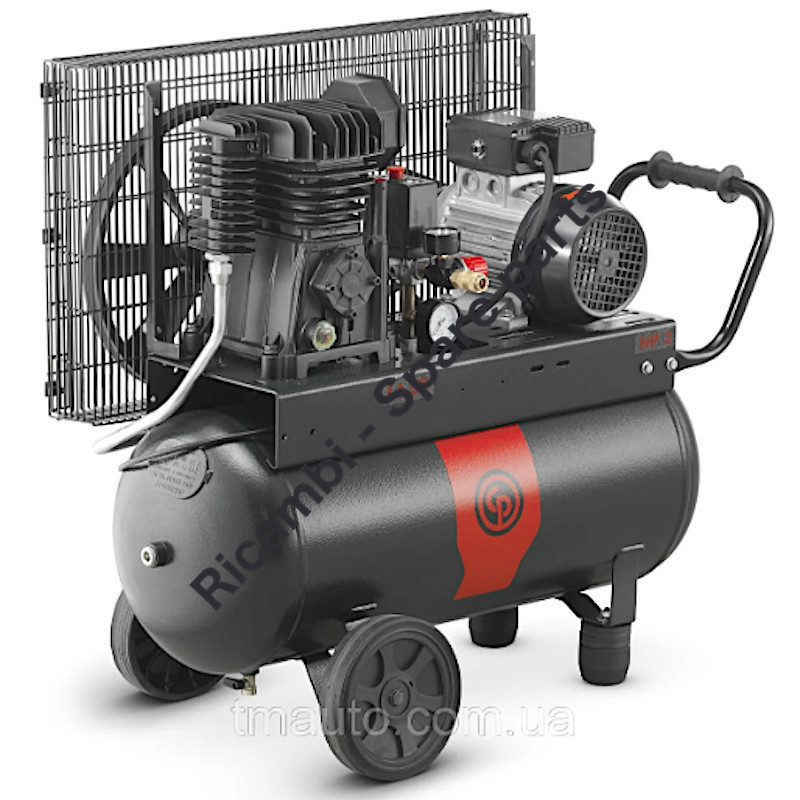

CHICAGO PNEUMATIC Parts for Air Compressor CPRC 250 NS12 MS
  • Out-of-Stock
  • CHICAGO PNEUMATIC Parts for Air Compressor CPRC 250 NS12 MS
  • CHICAGO PNEUMATIC Parts DIAGRAM for Air Compressor CPRC 250 NS12 MS
  • CHICAGO PNEUMATIC Parts DIAGRAM for Air Compressor CPRC 250 NS12 M - 1
CHICAGO PNEUMATIC

CHICAGO PNEUMATIC Parts for Air Compressor CPRC 250 NS12 MS

SKU: CPRC 250 4116023630 Condition: New
€0.11
VAT included

CHICAGO PNEUMATIC Spare Parts for Air Compressor CPRC 250 NS12 MS - 4116023630

Distribution and sale of original ABAC spare parts, low prices and a professional repair service able to advise you on the purchase of the most suitable spare part to quickly solve any maintenance and repair problem for CHICAGO PNEUMATICS AIR COMPRESSOR CPRC 250 NS12 MS - 4116023630.

settings 46 Spare parts
description 2 exploded views
picture_as_pdf Download Exploded PDF
Quantity
Out-of-Stock

SHIPPING IN: Usually Ships in 10 BUSYNESS DAYS
MORE INFO:: [email protected]
Machine Type: Air Compressor
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal PayPal Pay in 3 Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
46 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in 10 BUSYNESS DAYS

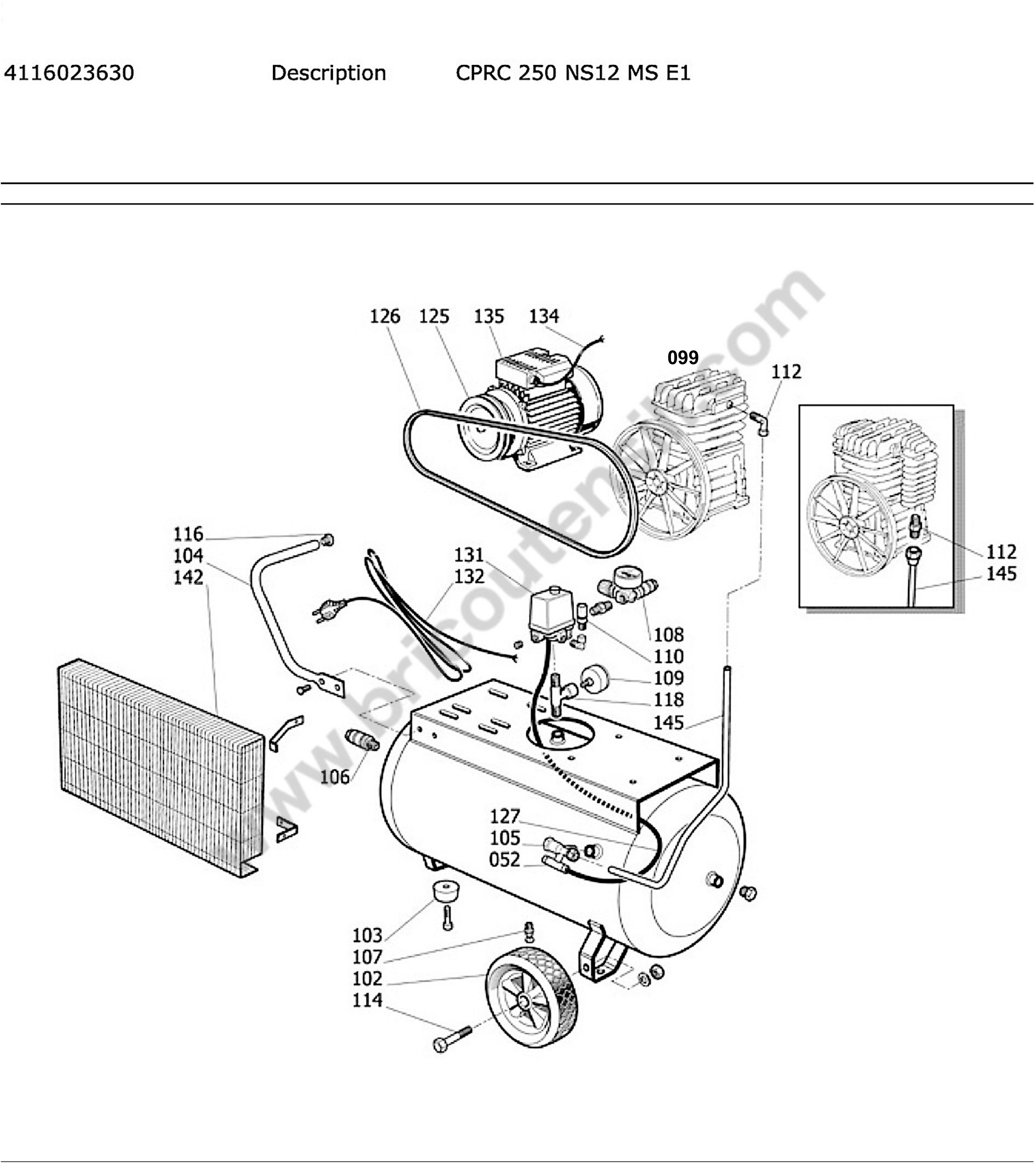

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
099
 Pump PAT 24 SPAR GRAY 4116090644 Pump PAT 24 SPAR GRAY €288.47
100
 Image coming soon 1127090003 Plug -receiver €1.18
102
 ABAC A29 50 CM2 Wheel D.150X30 6214347300 ABAC A29 50 CM2 Wheel D.150X30 €2.04
103
 Image coming soon 6214345500 Pivot wheel - front pin €6.89
104
 Image coming soon 6214343300 Handle €16.03
105
 ABAC Non-Return Valve 3/4" Male 10 mm Tube for Air Compressors 2HP 2236110535 ABAC Non-Return Valve 3/4" Male 10 mm Tube for Air Compressors 2HP €18.10
106
 Image coming soon 2236112708 Line valve 1/2” M quick coupling €9.99
106
 Quick Coupling 1/4" M for Air Compressors ABAC - BALMA 6231944100 Quick Coupling 1/4" M for Air Compressors ABAC - BALMA €6.89
107
 Image coming soon 2236111480 Drain tap €11.80 Not available for order
107
 Drain Valve 3/8" for Air Compressors ABAC - BALMA 6210717700 Drain Valve 3/8" for Air Compressors ABAC - BALMA €3.93
108A
 Pressure Reducer Micro 1/4" A for Compressor Montecarlo FC2/50 CM 2 2236105548 Pressure Reducer Micro 1/4" A for Compressor Montecarlo FC2/50 CM 2 €22.83
108
 Pressure Reducer MICRO 1/4 A 1R for Air Compressors ABAC - BALMA 6214344100 Pressure Reducer MICRO 1/4 A 1R for Air Compressors ABAC - BALMA €22.33
109
 Gauge 50MM for Air Compressors ABAC - BALMA 6214345000 Gauge 50MM for Air Compressors ABAC - BALMA €10.14
110
 ABAC Safety Valve 3/8" 11 Bar for Pump Unit A29B 6210719900 ABAC Safety Valve 3/8" 11 Bar for Pump Unit A29B €7.87
112
 Image coming soon 6214349700 NUT 3/8 HOLE 10 9053151 €3.15
113
 JOINT BIC.10 6214349500 JOINT BIC.10 €2.66
114
 ABAC Wheel Pin D.15MM 6214348000 ABAC Wheel Pin D.15MM €2.04
116
 Image coming soon 6214344600 Plastic plug €0.54
118
 Image coming soon 6275613400 Fitting €5.44
125
 Image coming soon 2901320246 Pulley €21.00
126
 V-Belt A53 for Air Compressors ABAC - BALMA 0367102100 V-Belt A53 for Air Compressors ABAC - BALMA €8.16
127
 Rilsan Tube PA6 PE3030UK 6X4 Black 2236112998 Rilsan Tube PA6 PE3030UK 6X4 Black €1.62
131
 Pressure Switch 3/8 + MDR1 for Compressor A29B 50 CM3 2236106647 Pressure Switch 3/8 + MDR1 for Compressor A29B 50 CM3 €35.33
132
 Image coming soon 2236106733 Cable €13.01
134
 Image coming soon 6256395100 Cable €22.13
135
 Image coming soon 2236113724 MOTOR HP 2 M V230 50HZ MEC 80 €335.11
136
 Image coming soon 8973036609 Motor Overload €17.42
142
 Image coming soon 2236112755 BELT GUARD_METAL PAT24 €96.21
500
 Image coming soon 2236111738 Belt Guard Rete NS12 €81.74
501
 Image coming soon 6214342500 Belt Guard 25C2MRPRO, 25C2RPRP, 50C2MRPRO €67.61
Page 2 zoom_in View exploded local_shipping Usually Ships in 10 BUSYNESS DAYS

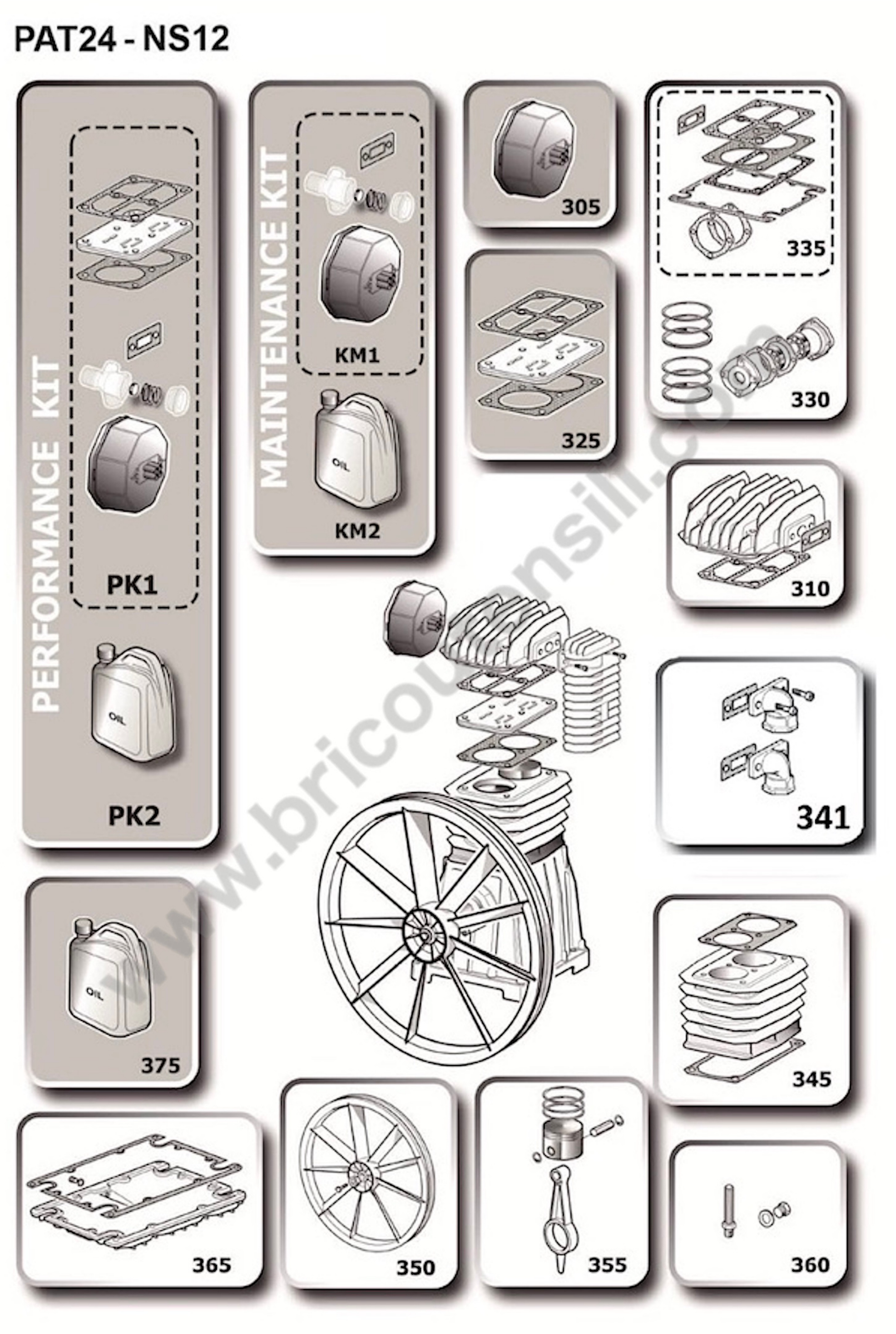

Esploso pagina 2
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
PK2
 ABAC Can Altair Plus Synthetic Oil 5L 6215715800 ABAC Can Altair Plus Synthetic Oil 5L €98.98
da 2 pz: €4.95 da 4 pz: €9.90
PK1
 Performance Kit for Pump Units ABAC PAT24-PAT38 8973037657 Performance Kit for Pump Units ABAC PAT24-PAT38 €56.72
KM1
 ABAC Maintenance Kit for Pump Unit A29B - A39B 8973037864 ABAC Maintenance Kit for Pump Unit A29B - A39B €18.92
305
 ABAC Air Filter for Pump Unit A29B - A39B 2236112735 ABAC Air Filter for Pump Unit A29B - A39B €5.38
310
 Cylinder Head Kit for Pump Unit ABAC A29B 2901325044 Cylinder Head Kit for Pump Unit ABAC A29B €35.93
325
 Valve Plate Kit for Pump Unit ABAC A29B 2236112518 Valve Plate Kit for Pump Unit ABAC A29B €34.95
330
 ABAC Upgrade Kit for Pump Unit A29B - A39B 2901325046 ABAC Upgrade Kit for Pump Unit A29B - A39B €48.30
335
 ABAC Gasket Kit for Pump Unit A29 2901325045 ABAC Gasket Kit for Pump Unit A29 €17.28
340
 ABAC PAT24-PAT38 Aftercooler Kit 2901325047 ABAC PAT24-PAT38 Aftercooler Kit €31.65
341
 Image coming soon 2236112795 Female connection kit €63.65
345
 Image coming soon 2236112434 CYLINDER KIT PAT24 €60.68
350
 Flywheel Kit for Pump Unit A29B 2901325048 Flywheel Kit for Pump Unit A29B €39.17
355
 ABAC Conrod Piston Kit Ass'y for Pump Unit PAT24 - A29 - NS12 2236111619 ABAC Conrod Piston Kit Ass'y for Pump Unit PAT24 - A29 - NS12 €26.84
360
 OIL LEVEL KIT 2901325049 OIL LEVEL KIT €3.29
365
 Image coming soon 2236112437 BOTTOM CRANKCASE COVER KIT PAT 24 €27.80 Not available for order
375
 CAN ALTAIR PRO 1L 1630020700 CAN ALTAIR PRO 1L €12.77

Shipping and delivery information will be available shortly.

CHICAGO PNEUMATIC Spare Parts for Air Compressor CPRC 250 NS12 MS - 4116023630

Distribution and sale of original ABAC spare parts, low prices and a professional repair service able to advise you on the purchase of the most suitable spare part to quickly solve any maintenance and repair problem for CHICAGO PNEUMATICS AIR COMPRESSOR CPRC 250 NS12 MS - 4116023630.

In the following table, look for the spare parts of the ABAC Air Compressor and the corresponding code.
CPRC 250 NS12 MS - 4116023630

CHICAGO PNEUMATICS AIR COMPRESSOR CPRC 250 NS12 MS - 4116023630 PAG.1
# Part Num. Description
099 4116090644 Pump PAT24 SPARE GRAY
100 1127090003 Plug -receiver
102 6214347300 Wheel D150X39 HOLE 15
103 6214345500 Pivot wheel - front pin
104 6214343300 Handle
105 2236110535 Non return valve
106 6231944100 Tap
106 2236112708 Tap
107 2236111480 Drain tap
107 6210717700 Drain tap
108 6214344100 Pressure reducer
108A 2236105548 Pressure reducer
109 6214345000 Gauge
110 6210719900 Safety valve
112 6214349700 Fitting
113 6214349500 Fitting
114 6214348000 Wheel pin
115 2236100750 Snap ring
116 6214344600 Plug
118 6275613400 Fitting
125 2901320246 Pulley
125 2236111823 Pulley
126 0367102100 Belt
127 2236112998 Rilsan tube
131 2236106647 Pressure switch
132 2236106733 Cable
134 6256395100 Cable
135 2236113724 Motor
136 8973036609 Star-delta starter
142 2236112755 Belt guard
142 6214342500 Belt guard
142 2236111738 Belt guard
145 2236112506 Delivery pipe
145 2236111144 Delivery pipe
CHICAGO PNEUMATICS AIR COMPRESSOR CPRC 250 NS12 MS - 4116023630 KITS PAG.2
# Part Num. Description
305 2236112735 Air filter
310 2901325044 Cylinder head kit
325 2236112518 Valve plate kit
330 2901325046 Upgrade kit
335 2901325045 Joints kit
340 2901325047 Aftercooler kit
341 2236112795 Female connection kit
345 2236112434 Cylinder kit
350 2901325048 Flywheel kit
355 2236111619 Conrod-piston kit LP
360 2901325049 Oil level kit
365 2236112437 Crankcase cover kit
375 1630020700 Oil can
KM1 8973037864 Maintenance kit
PK1 8973037657 Performance kit
PK2 6215715800 Olio Sintetico Altair Plus 5L
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s CHICAGO PNEUMATIC websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to CHICAGO PNEUMATIC brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
CPRC 250 4116023630

Data sheet

Machine Type
Air Compressor
MORE INFO:
[email protected]
SHIPPING IN
Usually Ships in 10 BUSYNESS DAYS

Specific References

New

Download

CPRC 250 NS12 M Drawing

CPRC 250 NS12 M Drawing
